CABINETS - CLOSETS - CUSTOM FURNITURE - NESTED BASED - HIGH VOLUME

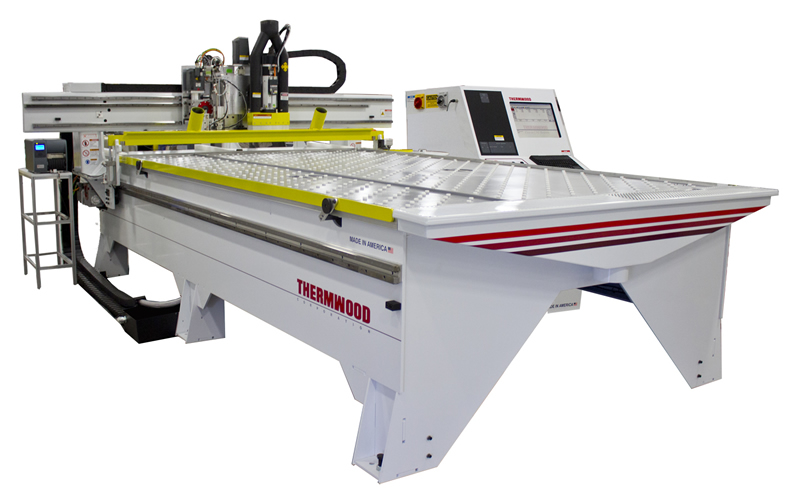

AUTO PROCESSOR

High-throughput automatic load/unload nested based production of cabinets, closets and custom furniture.




AUTOPROCESSOR

High-throughput automatic load/unload nested based production of cabinets, closets and custom furniture.

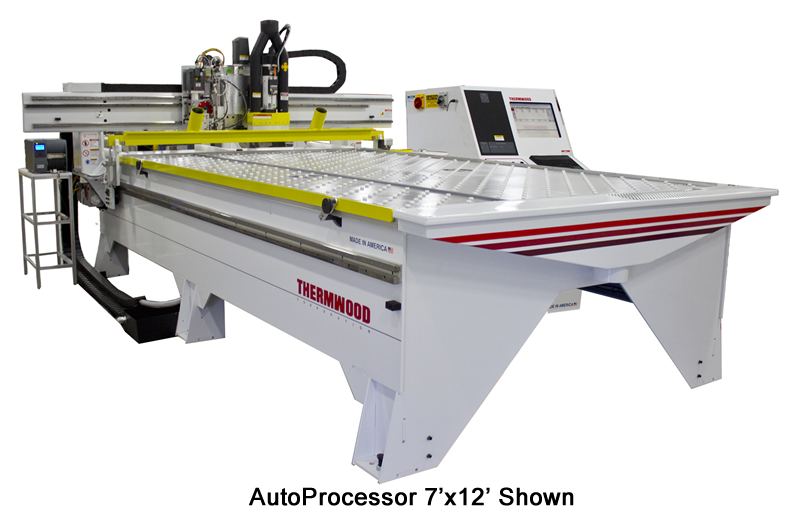

Available Table Sizes:  5'x10' (1.52m x 3m), 5'x12' (1.52m x 3.6m), 7'x12' (2.1m x 3.6m)

  • 12 HP HSD Spindle (3,000-24,000 RPM). Optional 18 HP Spindle
  • Fixed Aluminum Table with Moving Gantry
  • 10 Position Rotary Automatic Tool Changer (Standard)
  • Automatic CNC Labeling System (Standard)
  • Automatic Load/Unload System (Standard)
  • 5 Spindle Drill Bank (Optional)
  • Automatic Tool Length Measurement (Standard)
  • Automatic Lubrication System (Standard)
  • Three-Dimensional Laser Compensated Axis Alignment (Standard)
  • Control Nesting (Standard)
  • Siemens Intelligent Servo Drives Throughout (Standard)
  • QCore SuperControl (Standard)
  • Machine Training and Installation (Standard)
Request More Info Brochure Free eBook CNC Investment Calculator

Machine Standard Features

  • 12 HP (9kw) Spindle

    12 HP (9kw) Spindle

    A direct driven spindle with a speed range up to 24,000 RPM.  The high-frequency spindle is cooled with an electric fan for quieter running and contains ceramic bearings for longer life and for less maintenance.  The 12 HP (9kw) spindle provides the user with a heavy duty, precision spindle which provides high performance and reliability. Standard

  • Rotary Tool Changer

    10-position Stationary Rotary Automatic Tool Changer. Standard

  • Lift Table

    Lift Table

    The Lift Table is a scissor lift attached to the front of the machine. it holds the stock material just above the machine table and allows for the material to be loaded with the Automatic Load/Unload System.. Optional

  • Automatic Tool Length Sensor

    Automatic Tool Length Sensor

    Provides an automatic method of measuring tool length and entering tool length offset numbers into the control.  This automatically compensates for the new tool length, eliminating the need to precisely locate the cutter bit.  It provides a highly accurate method of adjusting tool length for pocketing or profile edges. Standard

  • Automatic Lubrication

    Automatic Lubrication

    Provides positive pressure, air/oil lubrication to the linear trackway bearings and the ball screws  This has two major benefits:  First, it eliminates the lubrication points which must be servided each shift.  Second, it provides positive pressure to the bearing, preventing contamination from entering the bearing.  This allows the machine to function in difficult, dusty or hostile environments. Standard

  • Automatic Load/Unload System

    Automatic Load/Unload System

    Adds the ability for the CNC router to automatically attach labels to predefined areas of the sheet after it is located into position on the table. The label cycle is conducted as part of each sheet cycle prior to the machining process. The label placement is achieved utilizing Thermwood's Control Nesting. Standard

  • Automatic Labeling System

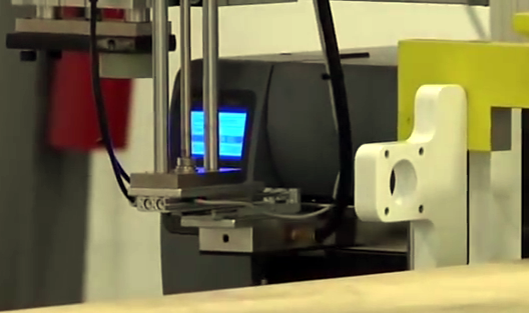

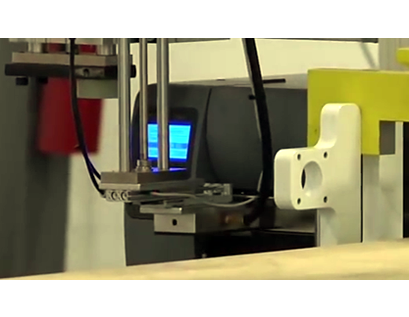

    Automatic Labeling System

    Adds the ability for the CNC router to automatically attach labels to predefined areas of the sheet after it is located into position on the table. The label cycle is conducted as part of each sheet cycle prior to the machining process. The label placement is achieved utilizing Thermwood's Control Nesting. Standard

  • Volumetric Laser Compensated Axis Alignment

    Volumetric Laser Compensated Axis Alignment

    The machine is calibrated in all axes using a three-dimensional volumetric laser interferometer. This type of calibration is the most sophisticated and most accurate available today resulting in machines that are extremely accurate. Others may use single axis calibration (not nearly as good) and others may not calibrate at all. Uncalibrated machines can generate dimensional errors that can become a real problem. Standard

  • QCore SuperControl

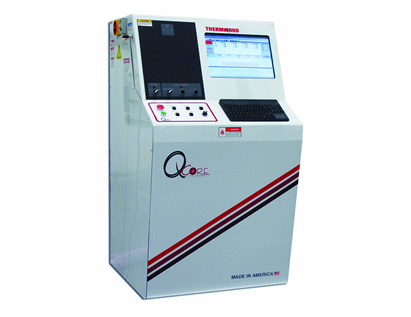

    QCore SuperControl

    The Thermwood QCore SuperControl is a feature rich, high performance CNC control system. Thermwood, the only major CNC router manufacturer that designs and builds its own CNC control, is a leader in implementing advanced control technology. As a result, Thermwood has been granted more patents on CNC router technology than all other CNC router manufactures in the world, combined. Standard

  • Control Nesting

    Control Nesting

    A user-friendly nesting package integrated into the Thermwood control to nest various parts into sheet stock, thus creating a better yield. Also accepts layered DXF files. Standard

  • Machine Training

    Machine Training

    We are by your side during your 5 Day training course at our modern, state of the art center (devoted specifically to educating our customers). This is, by far, the fastest and most efficient way to learn. Our machine operator/programmer courses are located adjacent to the machine training lab, where students complete the prescribed projects on a specific training machine utilized only for training purposes. Then, when it comes time for practical applications on a full sized machine, Thermwood's training lab is equipped with a CabinetShop 45 outfitted with all major options and features. Real production-type parts are cut. What a confidence builder!  Standard

Machine Options

  • 18 HP (13 kw) Spindle

    18 HP (13 kw) Spindle

    The 18HP (13 kw) spindle (3,000 to 20,000 programmable RPM). Accepts HSK F63 toolholders as well as Thermwood Aggregates and is equipped with an electric fan.Optional

  • Personal Pause Button

    Personal Pause Button

    Thermwood has developed a remote wireless "Pause Button" which can be clipped to a belt or pocket.  Pressing this button stops the machine in place. Optional

  • Drill Bank

    Drill Bank

    The drill unit is a vertical boring head with nine vertical spindles, arranged in a right angle pattern with four arranged front to back and four arranged left to right (with one additional, which is common to both). The spindles are on 32mm centers.. Optional

  • Vacuum Pump

    Vacuum Pump

    Universal Vacuum System is a unique method for holding panels to the table top for machining.  A sheet of particleboard or low density MDF is used as a work surface on the top fo the table.  The high flow pump vacuums through the work surface, holding the part to the table.  Pumps are available as 15HP (11kw).  Conventional vacuum also available. Optional
