Neville,, we use the cnc to make carved cutting boards for our clients. We do it by making a blank of the same size for each one, cut the outline into a melamine sheet and then inserting the blank into the hole. The melamine holds tight and the blank fits tightly into the hole (use shims if necessar...

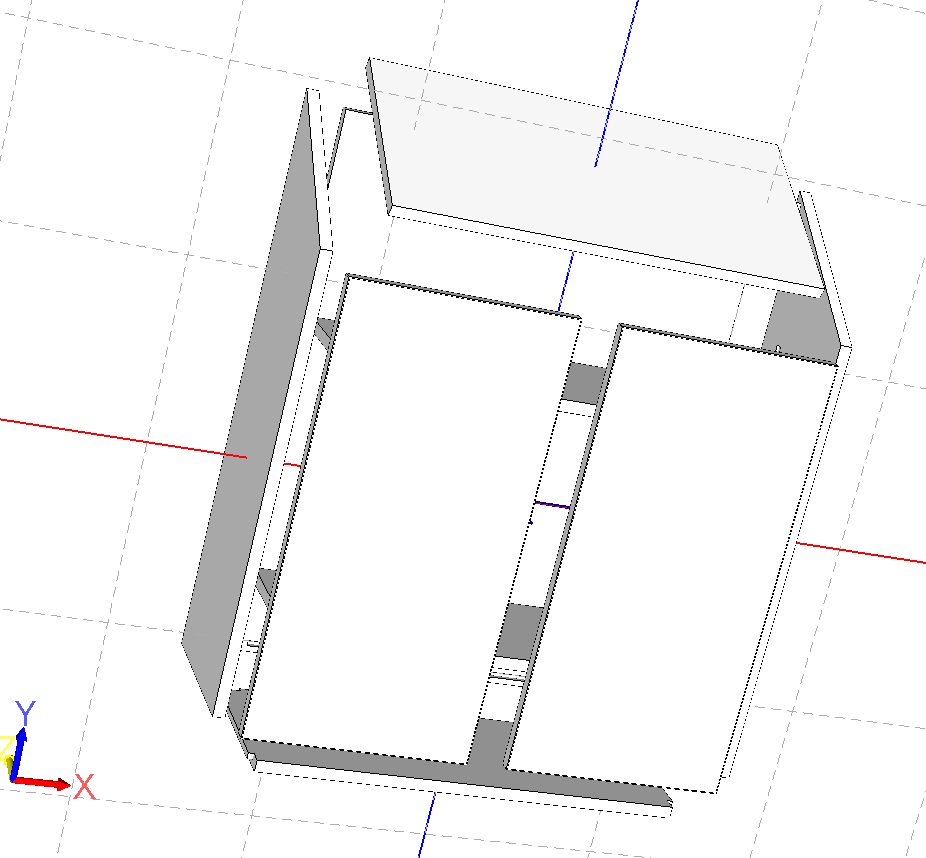

Greg, if I understand the situation correctly, we work around this by making a 72" wide cabinet and at each 24", we would put in two partitions, one tab right, one tab left and put the "gap" between them at 0.001". Software works as long as gap is some positive number but in...

On the nesting page, go to "Filter" and take them out by clicking in box. Then re-nest the job.

Stuart, ours tends to do this in very humid weather. Not sure if in hardware or just the surface and finger dirt. Best success we have had is to restart things after we get to stopping point. Dust on pad or fingers is a problem too. We have been living with this for a long time and it is not getting...

Michael,
Basswood is our choice and is great carving wood, no splinters, light and machines like butter. It is less $ than maple where we are. It is really soft though so handling is key after carving.
Hope your project goes well.

Neville, You Build died a couple months ago. We signed to be a cut center but never got an order. I think the concept is sound but word never got out it existed so no customers. I think Thermwood has offered their new concept Cut Center so people could go into a store who owns a Thermwood, plug in t...

David, been using eCabs and making cabinets since 2003. I fall into Will's Owner category and so I personally haven't made too many cabinets recently. I do my fair share of programming though. And we check the Forum pretty much daily because we learn a lot from it.

Thanks Brad. Tried on a couple letters and look good. Will give it a try on all of it this weekend.

I had a customer send me his lettering files. He is an architect and is using some modified font instead of pre-loaded one so he sent them in Autocad file, I converted them in Mastercam and went to cut them. The arcs are now a lot of jagged straight sections instead of a smooth arc. Do I need to use...

Solution: Scott was most helpful as always. My error was I did not read the manual for this new feature. I needed to name tools for this and when I did, success. Go to Thermwood/software manuals/control nesting and then look up "pocketscrew" and it will guide you through it. It is not over...

Forrest, maybe stupid question but do I need to include the quotation marks on the name "pocketscrew"?

Forrest, Thanks for the reply. We outline with a 3/8 tool so I set up a second 3/8 tool to do the pocketscrew. I have it checked for rout/dado, drill, interpolate, and pocket. I think I did as told by going to Operation List in CN and there is the option to name a tool operation and I entered "...

All, Tried our first pocket screw joinery on a small test cabinet. It did not make the pockets. It drilled the 1/8" hole for the step and it drilled, retracted to above the surface and then angled out to what should have been a pocket but it was in space above the sheet. It never made the actua...

Am getting "data execution prevention" which stops download and shuts down computer. I successfully loaded this once and after "verifying" license, it killed my whole computer and went to safe mode. Suggestions?

brad,
we use a 3/8 compression tool to outline. The dado is done by either the same tool or a 1/4" straight tool or a 3/16 straight cutter, depending on the "width" of the tenon. The material is 3/4 plywood with actual thickness of 0.726" on average.
