Search found 250 matches

by tim lucas
Thu, Jun 28 2018, 6:45PM
Forum: eCabinet Systems Software
Topic: Sloped Ceiling
Replies: 3
Views: 64

Re: Sloped Ceiling

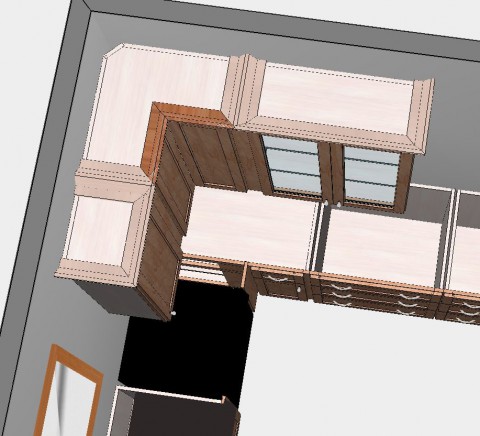

well, I guess you can by using a Display Cube

you would need a picture of what you want it to look like or just a color to put on the cube but you can make the cube the size you need and maybe 1" thick then align it in place

Tim

by tim lucas
Thu, Jun 28 2018, 6:10PM
Forum: eCabinet Systems Software
Topic: Sloped Ceiling
Replies: 3
Views: 64

Re: Sloped Ceiling

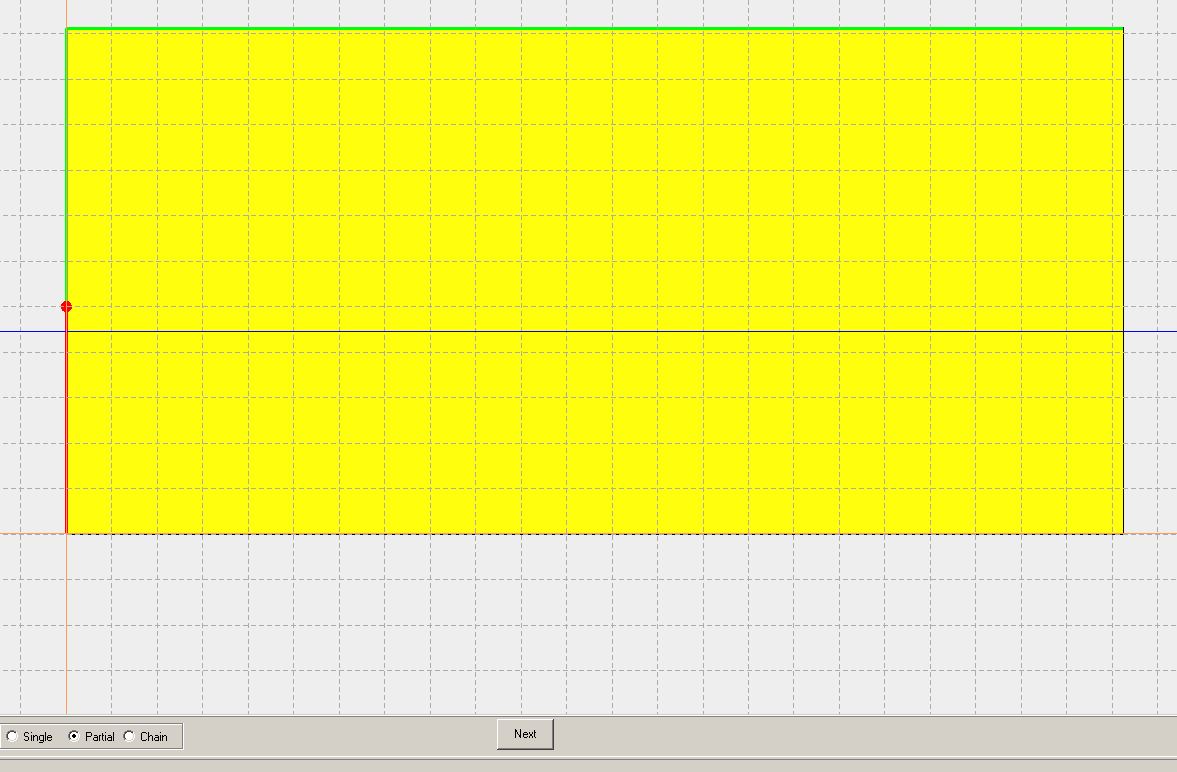

Yes sir, Select the wall you want to slope then click green wall icon second from left in there you can change the height of one side or the other - if you change the center height you will make the whole wall the same height. your wall should start with the tallest height then set one end to the sh...
by tim lucas
Wed, Jun 27 2018, 7:20PM
Forum: eCabinet Systems Software
Topic: Drawer Reveal Issue
Replies: 18
Views: 223

Re: Drawer Reveal Issue

I thought we were looking a the height problem not width, sorry. So i am looking at your height of drawers, you do not need any space between the drawer fronts height wise? You have them set to 0 drawer width - you have a reveal of 1.5 mm reveal - that means take the cabinet side material thickness ...
by tim lucas
Wed, Jun 27 2018, 7:07PM
Forum: eCabinet Systems Software
Topic: Drawer Reveal Issue
Replies: 18
Views: 223

Re: Drawer Reveal Issue

Terry

Dont give up :shock:

The best way is to use a seed cabinet.

I understand your delema but this system will work for you.
by tim lucas
Wed, Jun 27 2018, 4:19PM
Forum: eCabinet Systems Software
Topic: Drawer Reveal Issue
Replies: 18
Views: 223

Re: Drawer Reveal Issue

Thanks Ralph. All my material is in mm and are whole numbers. I replaced all the material in the cabinet with my material other than drawer boxes and drawers/doors which I couldn’t figure out at first. I believe I was able to do that through global settings but perhaps when I add new drawers it doe...
by tim lucas
Tue, Jun 26 2018, 6:57PM
Forum: eCabinet Systems Software
Topic: Drawer Reveal Issue
Replies: 18
Views: 223

Re: Drawer Reveal Issue

I'm having issues with the drawer reveals while trying to make a 32mm base cabinet using "Cntr 16 Shift x 2" design from https://davelers.com/32mm/Drawers/images/1767_02.png When I open eCabinet software, I choose develop cabinets or assemblies. I choose an empty carcass base cabinet whic...
by tim lucas
Tue, Jun 26 2018, 6:47PM
Forum: eCabinet Systems Software
Topic: In Need of Tall Frameless Cabinet
Replies: 5
Views: 126

Re: In Need of Tall Frameless Cabinet

Yes sir, you can add crown to a base cab and you can add light rail to a wall cabinet using the lower or base molding.
by tim lucas
Thu, Jun 21 2018, 7:23PM
Forum: eCabinet Systems Software
Topic: Line drawing printing issue
Replies: 2
Views: 78

Re: Line drawing printing issue

LDE has some issues, sometimes I can JPG a drawing and everything is there then next time it wont be. If I restart eCabs it usually works right. I also noticed that if a cabinet or countertop is not assocaited to a wall it wont show in LDE.
by tim lucas
Wed, Jun 20 2018, 5:34AM
Forum: Thermwood 3-Axis Machinery
Topic: Y axis Out of bounds
Replies: 12
Views: 344

Re: Y axis Out of bounds

I would start checking wires and connections - does it have the problem when just moving at the same location?
by tim lucas
Mon, May 28 2018, 8:14PM
Forum: eCabinet Systems Software
Topic: Adj shelf holes in corner cab
Replies: 4
Views: 221

Re: Adj shelf holes in corner cab

Better yet, look at the settings in this pic, notice we have all three colums checked to apply holes, on the right side I gave the back holes a negitive number (-3) so it would put the holes off the part and they would not show up. Set your cabinet to these settings and then take a look and see if t...
by tim lucas
Mon, May 28 2018, 8:03PM
Forum: eCabinet Systems Software
Topic: Adj shelf holes in corner cab
Replies: 4
Views: 221

Re: Adj shelf holes in corner cab

Post your corner cabinet if you can
by tim lucas
Sun, May 27 2018, 6:51AM
Forum: Lounge
Topic: Finished ends
Replies: 2
Views: 236

Re: Finished ends

we finish the ends also

What if the owner sees the cabinets without the appliance in place, would they think we provide quality if we dont finish the ends?

Tim
by tim lucas
Sun, May 27 2018, 6:48AM
Forum: eCabinet Systems Software
Topic: Adj shelf holes in corner cab
Replies: 4
Views: 221

Re: Adj shelf holes in corner cab

Andy,
Three holes would work as long as you use the shelf clips so they hold the top of the shelf. But myself I use 5 holes even with the clips.

Tim
by tim lucas
Fri, May 04 2018, 5:59AM
Forum: eCabinet Systems Software
Topic: Trouble cutting cabinet parts
Replies: 11
Views: 664

Re: Trouble cutting cabinet parts

I agree that in an ideal world I would not have to do any flip operations. Is it possible to set up blind dado joinery without flip operations? This particular cabinet I showed is a frameless 4 drawer cabinet with blind dados on the sides, top, and bottom, with a fully inset back. Alec The back is ...
by tim lucas
Wed, May 02 2018, 8:06PM
Forum: eCabinet Systems Software
Topic: Wish list
Replies: 4
Views: 278

Re: Wish list

You can add job items with cost - also you can add items to a cabinet -

hover over right side, select Job Buy List, or Cabinet Buy List, you may have to scroll to the bottom and / or scroll to the right to see Add Items to Job or Add Items To Assembly.

Not sure about hinge

Tim
