Search found 62 matches

by JR Allen
Tue, Apr 21 2020, 10:30AM
Forum: eCabinet Systems Software
Topic: Cabinets not showing in Scaled Print
Replies: 4
Views: 1779

Re: Cabinets not showing in Scaled Print

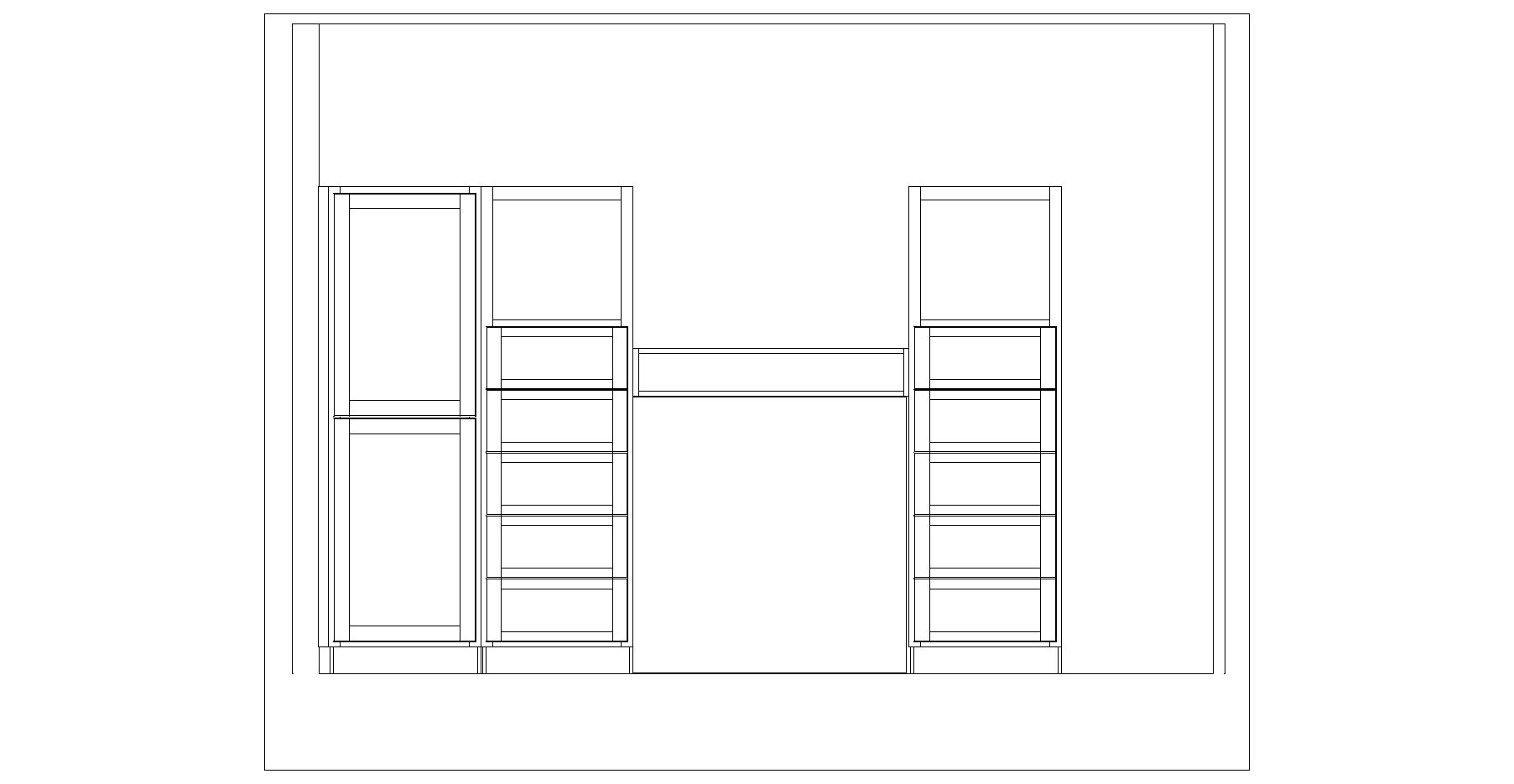

Hi Vince, Try this, in elev / wall with all cabinets associated to the wall - right click to open menu and select scaled print and you should be able to see all your cabinets with measures.

elev page.jpg


scaled print.jpg
by JR Allen
Tue, Feb 04 2020, 10:12AM
Forum: eCabinet Systems Software
Topic: reinstall ecabinets
Replies: 1
Views: 1443

reinstall ecabinets

Had to install a new hard drive and have backup files. My last eCabinets upgrade was 11/22/19 V.6.25Setup. Do I need to download the latest version from the website and can I use the same code? Or can I reinstall with what I have?
by JR Allen
Mon, Jan 27 2020, 5:11PM
Forum: eCabinet Systems Software
Topic: Profile edge issue
Replies: 3
Views: 1895

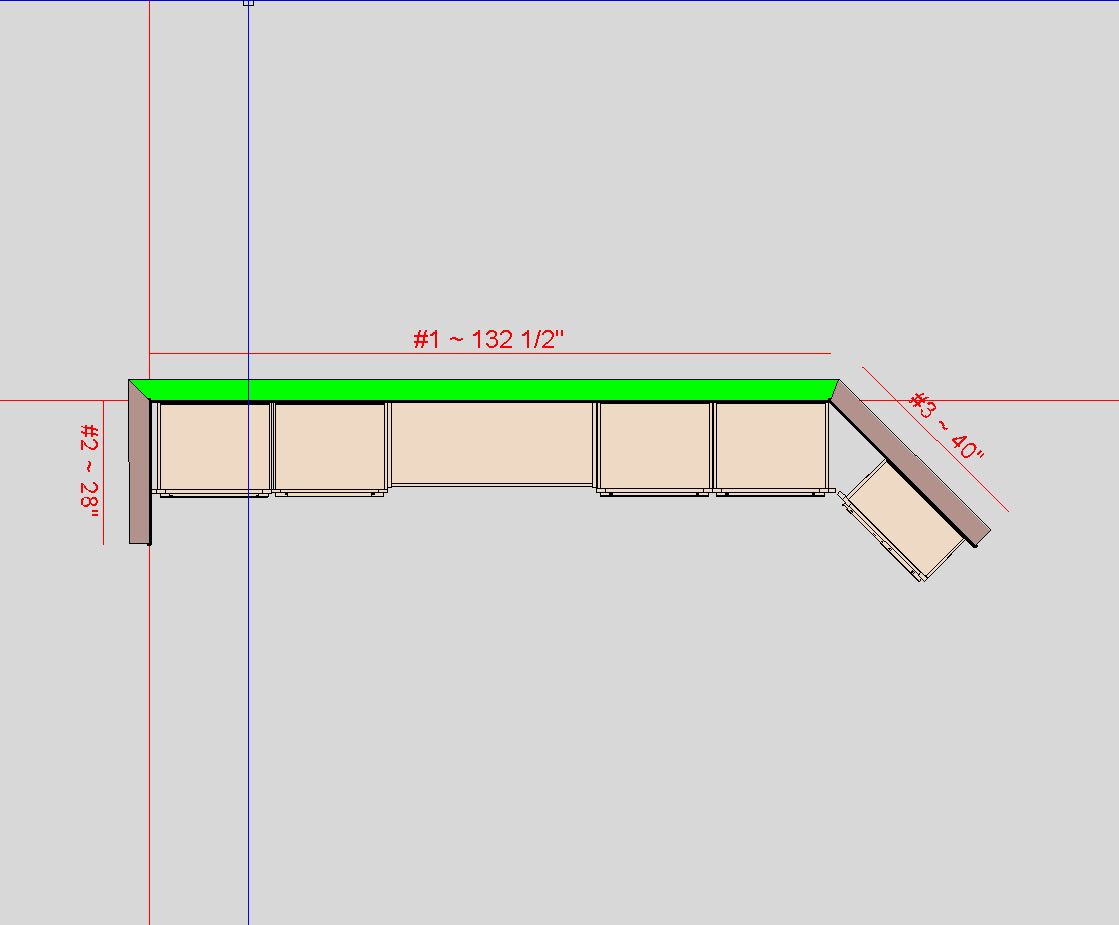

Profile edge issue

Has anyone else experienced a glitch when you select Partial in the profile edge window and select 1 edge okay but when selecting a second edge it selects all 4 edges like a Chain. Seems like I used to be able to profile 3 edges for my tops.

profile edge.jpg
by JR Allen
Wed, Jan 22 2020, 11:07AM
Forum: eCabinet Systems Software
Topic: Modify texture in render mode corner cabinet
Replies: 2
Views: 1727

Re: Modify texture in render mode corner cabinet

I usually highlite the crown and select Match Texture and click on the color I want.
by JR Allen
Mon, Feb 04 2019, 7:37PM
Forum: eCabinet Systems Software
Topic: Presentation view not working
Replies: 20
Views: 6052

Re: Presentation view not working

Looks like you need to set the tiling of the pattern. Done thru change wall texture.
by JR Allen
Mon, Feb 04 2019, 7:34PM
Forum: eCabinet Systems Software
Topic: Need A FF Cabinet for A Farm Sink
Replies: 3
Views: 2053

Re: Need A FF Cabinet for A Farm Sink

Here's one I've used in the past, used with detached toe kick

farm without sink.hsf
(610.02 KiB) Downloaded 167 times

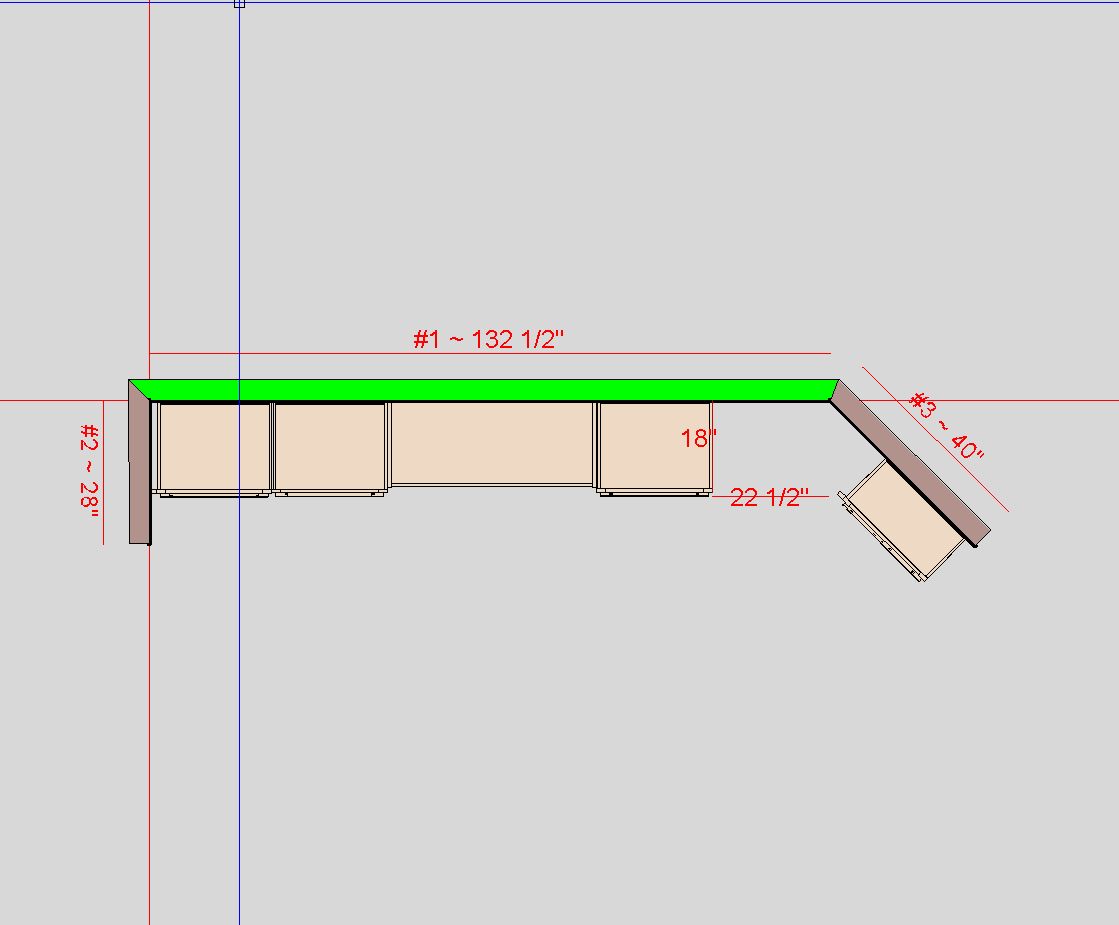

farm without sink.jpg
farm without sink.jpg (15.69 KiB) Viewed 2044 times
by JR Allen
Thu, Apr 19 2018, 8:38AM
Forum: eCabinet Systems Software
Topic: Suggestions on how to drill three sets of shelf pin holes
Replies: 9
Views: 4243

Re: Suggestions on how to drill three sets of shelf pin holes

There is a setting for adding a center row under Add Shelf settings using the apply shelf hole settings
by JR Allen
Sun, Mar 11 2018, 9:51AM
Forum: eCabinet Systems Software
Topic: How do I set costs for doors that are "build in house"
Replies: 4
Views: 2966

Re: How do I set costs for doors that are "build in house"

In the bottom right of the door selection is the " Details for Cut List " the Build in House door price will be determined by the materials selected costs.
by JR Allen
Mon, Feb 26 2018, 1:27PM
Forum: eCabinet Systems Software
Topic: Scaled print not showing all cabinets
Replies: 7
Views: 3723

Re: Scaled print not showing all cabinets

In case that doesn't work, here's the job file.

https://www.dropbox.com/s/igtzbtzzsge55 ... n.esj?dl=0
by JR Allen
Mon, Feb 26 2018, 1:23PM
Forum: eCabinet Systems Software
Topic: Scaled print not showing all cabinets
Replies: 7
Views: 3723

Re: Scaled print not showing all cabinets

Thanks for the reply Rick, here's a dropbox link to the folder. I also noticed elevations do not show up on the #1 wall on some jobs even though all cabinets are associated to the wall.

https://www.dropbox.com/s/saoyqwi0bubf3 ... n.zip?dl=0
by JR Allen
Fri, Feb 23 2018, 3:59PM
Forum: eCabinet Systems Software
Topic: Scaled print not showing all cabinets
Replies: 7
Views: 3723

Re: Scaled print not showing all cabinets

Thanks for the reply Rick,can't seem to send the job file in question, even compressed it's 40 MB and Gmail allows 25MB.Will a Dropbox link? I did discover the little pop up box to change scale and orientation.
by JR Allen
Thu, Feb 22 2018, 11:09AM
Forum: eCabinet Systems Software
Topic: Scaled print not showing all cabinets
Replies: 7
Views: 3723

Re: Scaled print not showing all cabinets

Never posted a job before, is there a a specific way other than upload esj. file to this forum?
by JR Allen
Wed, Feb 21 2018, 4:29PM
Forum: eCabinet Systems Software
Topic: Scaled print not showing all cabinets
Replies: 7
Views: 3723

Scaled print not showing all cabinets

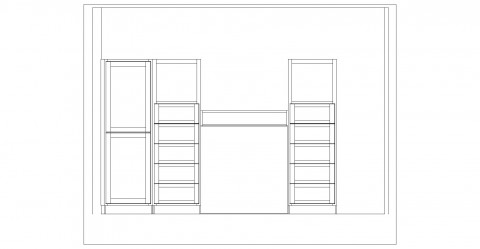

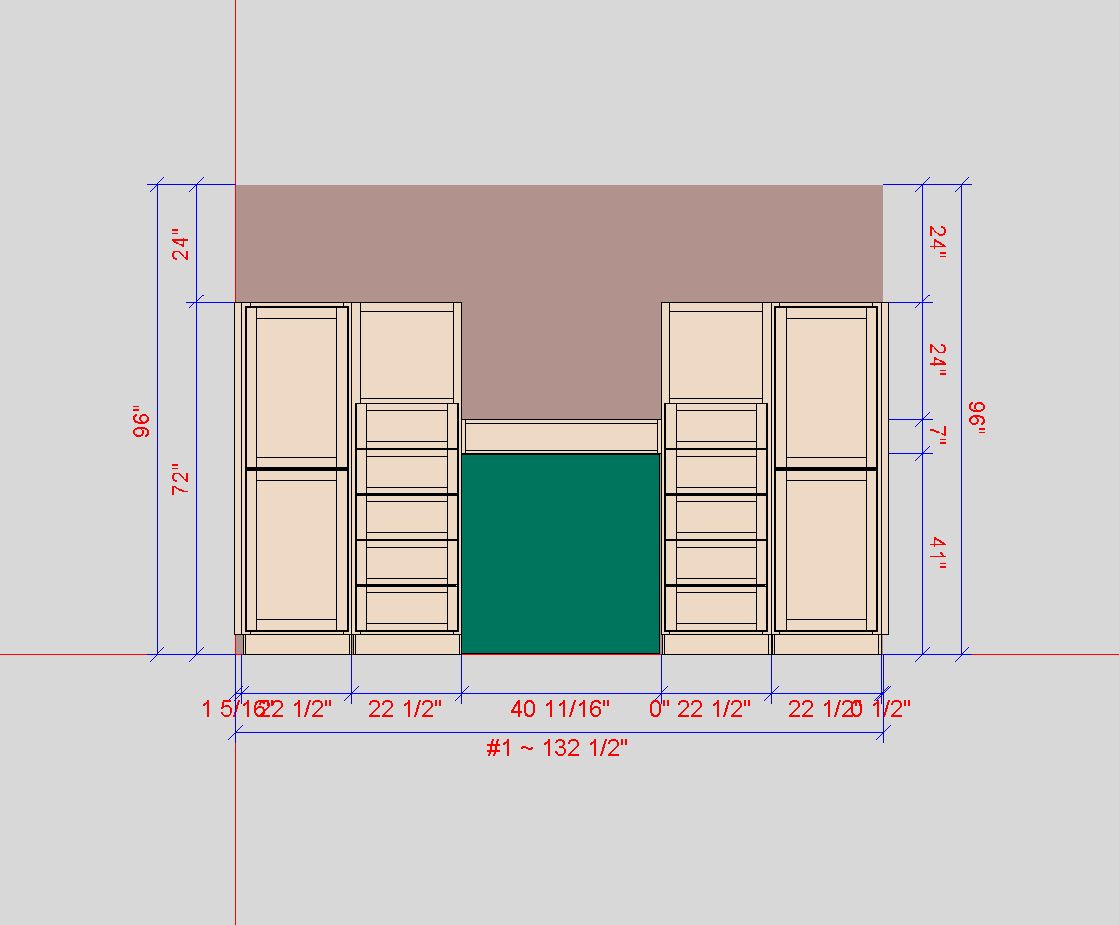

Just noticed in the new version that the lower cabinets do not show on the Scaled Print option. Not sure if I missed something, also is there away to change to landscape view?

eCab elev 1.png


eCab elev 2.png
by JR Allen
Wed, Feb 21 2018, 10:24AM
Forum: eCabinet Systems Software
Topic: 6.2 elevations
Replies: 2
Views: 2401

6.2 elevations

Liking the dimensions in the elevation view, great work Thermwood!!
by JR Allen
Tue, Feb 06 2018, 7:05PM
Forum: eCabinet Systems Software
Topic: LDE -Big Blank Page
Replies: 3
Views: 2700

Re: LDE -Big Blank Page

You may want to try hitting the escape button to clear any selections and try scrolling inwards until you see the LDE frame. I know sometimes I zoom out to far and if something is selected you can't zoom inwards or out.
