by Troy Hollinshead
Tue, Jun 11 2019, 9:07AM
Forum: Thermwood 3-Axis Machinery
Topic: Cutting into adjacent parts
Replies: 6
Views: 321

Re: Cutting into adjacent parts

Years ago when we 1st got our cnc. I had the same issue. Im not possitive since its been a while but im pretty sure I added a part clearance value and that solved my issue.


Troy
by Troy Hollinshead
Mon, Oct 22 2018, 6:51AM
Forum: eCabinet Systems Software
Topic: Pocket Cutting Off Profiled Edge
Replies: 13
Views: 3895

Re: Pocket Cutting Off Profiled Edge

Clint,

Sorry It took me a while to get back to you. I modified my drawing and was waiting on the outcome from the shop.

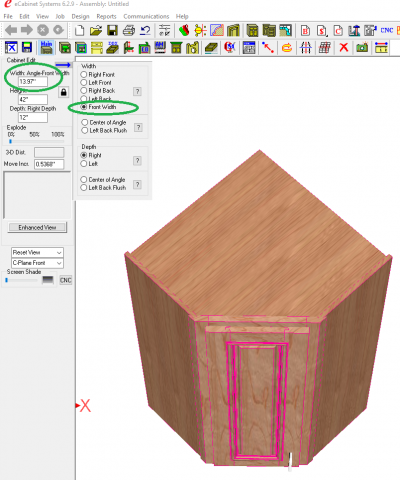

Attached is a picture of the changes I made to my drawing to get it to cut perfectly.




Thanks Again!

Troy
by Troy Hollinshead
Fri, Oct 12 2018, 6:42AM
Forum: eCabinet Systems Software
Topic: Pocket Cutting Off Profiled Edge
Replies: 13
Views: 3895

Re: Pocket Cutting Off Profiled Edge

Clint,

The Update did the trick my part cut fine. Now the customer made some changes and added another pocket with profiled edge and I get "Sweep not possible" error box. Any ideas?
Sweep Operation Not Possible.png


Thanks
Troy
by Troy Hollinshead
Fri, Sep 28 2018, 6:28AM
Forum: eCabinet Systems Software
Topic: Pocket Cutting Off Profiled Edge
Replies: 13
Views: 3895

Re: Pocket Cutting Off Profiled Edge

Clint,
will that same link for my THM Desktop also?
Thanks
by Troy Hollinshead
Fri, Sep 14 2018, 7:28AM
Forum: eCabinet Systems Software
Topic: Pocket Cutting Off Profiled Edge
Replies: 13
Views: 3895

Re: Pocket Cutting Off Profiled Edge

Clint,

Have you heard anything from the engineers?

Thanks

Troy
by Troy Hollinshead
Thu, Sep 06 2018, 11:33AM
Forum: eCabinet Systems Software
Topic: Pocket Cutting Off Profiled Edge
Replies: 13
Views: 3895

Re: Pocket Cutting Off Profiled Edge

Clint,

Thanks a million...I've been going in circles.

Troy
by Troy Hollinshead
Thu, Sep 06 2018, 10:41AM
Forum: eCabinet Systems Software
Topic: Pocket Cutting Off Profiled Edge
Replies: 13
Views: 3895

Re: Pocket Cutting Off Profiled Edge

Sure Clint.....Attached are the files you asked for.
Thanks
by Troy Hollinshead
Thu, Sep 06 2018, 9:21AM
Forum: eCabinet Systems Software
Topic: Pocket Cutting Off Profiled Edge
Replies: 13
Views: 3895

Pocket Cutting Off Profiled Edge

Hi Guys, I'm not good at describing my issue and I hope that the photo shows whats going on. Ive included the ecabs file, A DXF drawing of the Front and Back sides and also the Profile Tool that I made (The Modeling Tool At the CNC Is a .5 Downsheer Bit). I've Started over 2 times trying to get diff...
by Troy Hollinshead
Wed, Jun 06 2018, 9:44AM
Forum: eCabinet Systems Software
Topic: Dowel Holes
Replies: 4
Views: 1401

Re: Dowel Holes

Clint,

It seems to work. Im going to play with it and throw some different scenarios at it and see how it works out. I will let you know.

Thanks
Troy
by Troy Hollinshead
Tue, Jun 05 2018, 12:19PM
Forum: eCabinet Systems Software
Topic: Dowel Holes
Replies: 4
Views: 1401

Re: Dowel Holes

Thomas, Its been a long time since I've set up my cabinet library. I can't remember all the downsides to using the KD/RTA fastener. I just applied KD/RTA fastener and without spending alot of time on it, It only allows me to put the hole at the top or bottom edge of the stretcher. Dowel_Hole.png Tha...
by Troy Hollinshead
Tue, Jun 05 2018, 8:54AM
Forum: eCabinet Systems Software
Topic: Dowel Holes
Replies: 4
Views: 1401

Dowel Holes

I've seen post's about dowels in the past on here. Can we get some kind of dowel system that works? Right now I manually drill the dowel holes and constrain them and it is a real pain when Stiles/Rails Change width or we use a detached toe. The new constraints in ecabs doesnt help and deletes all ot...
by Troy Hollinshead
Sat, Aug 22 2015, 7:04PM
Forum: Customer Tools
Topic: Profiled Part Sizes
Replies: 1
Views: 5058

Re: Profiled Part Sizes

I was just looking back thru my post and noticed this one and figured I post again.
If I remember correctly............
I fixed this error in the profile modeler, by changing the bit from spherical to straight.
by Troy Hollinshead
Wed, Aug 19 2015, 2:10PM
Forum: eCabinet Systems Software
Topic: Paneling With a V Groove
Replies: 1
Views: 2051

Re: Paneling With a V Groove

Got it!

Had to Choose Custom Tool in profile modeler for each region.
