by jerry johnson
Mon, Mar 31 2008, 9:45AM
Forum: eCabinet Systems Software
Topic: toe kick construction
Replies: 5
Views: 1087

Re: toe kick construction

Glenn, we do toe kicks a little different. Are you cutting these on a router? If so this method is fool proof for assembly. I make a standard base cabinet, with no toe, the height of my toe kick. Then make the face frame out of sheet stock and add partitions for the stretcers. (adding partitions is ...
by jerry johnson
Wed, Mar 05 2008, 10:20PM
Forum: Thermwood 3-Axis Machinery
Topic: Help with machining a display panel
Replies: 8
Views: 1206

Re: Help with machining a display panel

Damon, if I am understanding you correctly you do not want the router to outline the panel. If that is the case after you load the file and before you write to cnc open the settings page at the controller and check off outline cuts. Hope this helps. 8)
by jerry johnson
Wed, Mar 05 2008, 5:45PM
Forum: Thermwood 3-Axis Machinery
Topic: How to restart in the middle of a program (RP-FR-MF0005)
Replies: 3
Views: 572

Re: How to restart in the middle of a program (RP-FR-MF0005)

Dan, the FSH093 has a .030 cut diameter, 2 1/2" over all length, and 1/4" shank. The .030 point really makes the carving pop out of the wood. If your other cutters have a larger cutting diameter the results may not be the same. Have fun! 8)
by jerry johnson
Wed, Mar 05 2008, 3:23PM
Forum: Thermwood 3-Axis Machinery
Topic: How to restart in the middle of a program (RP-FR-MF0005)
Replies: 3
Views: 572

Re: How to restart in the middle of a program (RP-FR-MF0005)

Hi, Dan. I ran this program, as well as others, and have had to start in the middle of a program too. What I have found is that it is tricky! One thing I try to do is watch when the tool changes occur and make a note as to which line of code that happens on. Also, when you shut the machine down make...
by jerry johnson
Tue, Mar 04 2008, 8:49PM
Forum: eCabinet Systems Software
Topic: full dados on front edge
Replies: 10
Views: 1011

Re: full dados on front edge

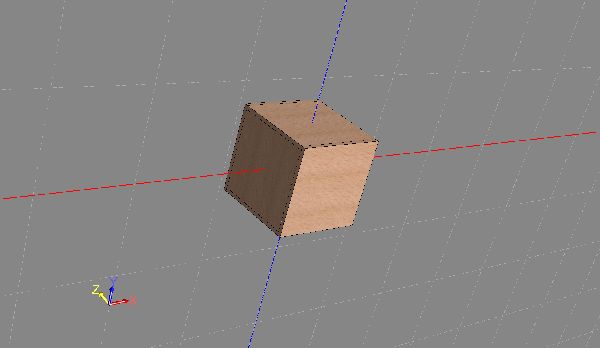

Gale, if you use a select sheet stock for your face frames you can get a complete cube with dados. If you need to change the size of your cube you must change the size of the face frame part you use as well. Hope this helps.
12 x 12 x 12 CUBE.jpg
12 x 12 x 12 CUBE.jpg (15.5 KiB) Viewed 1005 times

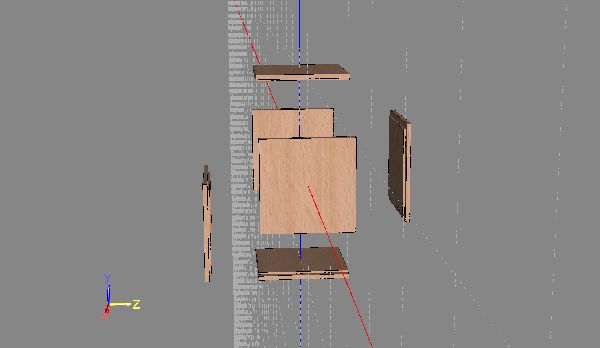

CUBE EXPLODED.jpg
CUBE EXPLODED.jpg (16.82 KiB) Viewed 1005 times
by jerry johnson
Mon, Feb 18 2008, 11:19AM
Forum: eCabinet Systems Software
Topic: display panel placement
Replies: 9
Views: 901

Re: display panel placement

Matt, if you associate the display panel to a wall and then view it in the elevation view you should be able to move it the same way you would a cabinet. Hope this helps. 8)
by jerry johnson
Mon, Feb 11 2008, 6:58PM
Forum: eCabinet Systems Software
Topic: Increase size of rails and stiles
Replies: 7
Views: 921

Re: Increase size of rails and stiles

Tom, use a Thermwood door template and you can make the stiles and rails what you want. 8)
FOUR INCS STILES AND RAILS.jpg
by jerry johnson
Mon, Jan 14 2008, 10:49AM
Forum: eCabinet Systems Software
Topic: FF cabs and drawerslide hardware holes
Replies: 4
Views: 725

Re: FF cabs and drawerslide hardware holes

Gene, check out these images cab sample 1.jpg sample cab 2.jpg Hopefully you can see where we use double partitions and how we handle double drawers. Your door margins are up to you. I typically use a 2mm margine if the cabinets are to be stained and at least a 3mm margine if they are being painted....
by jerry johnson
Sat, Jan 12 2008, 7:45PM
Forum: eCabinet Systems Software
Topic: FF cabs and drawerslide hardware holes
Replies: 4
Views: 725

Re: FF cabs and drawerslide hardware holes

Gene, we use all flush partitions. We end up with double partaitons a lot of the time but the labor savings in using the 5mm holes to mount hardware to more than pays for the additionl material. If the job is flush inset we just set the drawer boxes and doors into the cabinet the thickness of the do...
by jerry johnson
Wed, Jan 09 2008, 8:57PM
Forum: eCabinet Systems Software
Topic: Cabinet Problem!
Replies: 5
Views: 841

Re: Cabinet Problem!

Terry, if your pocket starts from the center of the cut out, which it should, you can block stop after the bit enters the panel and scroll down in the program a ways and restart cutting. You will get a cut across the panel but if you restart at the right place it won't matter. This will take a bit o...
by jerry johnson
Wed, Jan 02 2008, 12:31PM
Forum: Thermwood 3-Axis Machinery
Topic: Automatic oiler problem?
Replies: 5
Views: 895

Automatic oiler problem?

I have had my CS45 for about six months and just recently we got the automatic oiling system to work correctly. Here are some things we found: Tha glass bowl mounted to the Z axis must be perfectly level to properly distribute oil to all of the tubes. Also, we had to play with the manifold that is m...
by jerry johnson
Mon, Dec 31 2007, 1:46PM
Forum: eCabinet Systems Software
Topic: 5 piece doors, but no raised panel
Replies: 15
Views: 4698

Re: 5 piece doors, but no raised panel

Mark... I did not expalin very accurately my method. It is not exactly as Damon suggested. I print my cut list then enter each panel in a batch list that I save with the approiate job then send the whole thing to the router. This process opens the posibility of human error and that is what I want mo...
by jerry johnson
Fri, Dec 28 2007, 8:05PM
Forum: eCabinet Systems Software
Topic: 5 piece doors, but no raised panel
Replies: 15
Views: 4698

Re: 5 piece doors, but no raised panel

I am glad to see someone else with the same question that I have had since getting my router. I use the manual panel input like Damon suggested. It works but it would be much better and simpler if Thermwood would allow the choice of sheet stock when selecting door panel material. Is this a programmi...
by jerry johnson
Fri, Dec 28 2007, 12:52PM
Forum: eCabinet Systems Software
Topic: Mid rails on corner cabinets
Replies: 3
Views: 537

Re: Mid rails on corner cabinets

Alan Odell wrote:I have found if you turn off the face frames then turn them back on it will work then.

Thank you, Alan. That works.
by jerry johnson
Thu, Dec 27 2007, 8:09PM
Forum: eCabinet Systems Software
Topic: Mid rails on corner cabinets
Replies: 3
Views: 537

Mid rails on corner cabinets

When I add a mid rail to a corner cabinet I am unable to move it. Is this a glitch or am I missing something?
