Part Editor & Constraint manager

Postby Steve Detina » Mon, Jun 21 2010, 8:41AM

I have been experiencing problems with both editors. For example I will take a cabinet, delete all of the components except for the back and then modify is to create a furniture style kick. I will take this part into the part editor make the necessary changes and then then take the same part into the constraint manager and apply my constraints. Once all this is done I save the part. I then try to stretch or shrink the part but it does not change size. Is there something I am doing wrong? Attached is a copy of the file.
rinaldi kick 24-5.hsf
(112.02 KiB) Downloaded 32 times

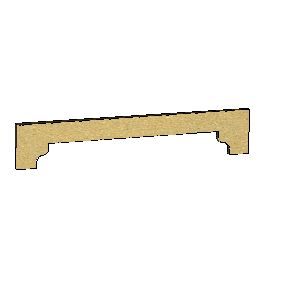

rinaldi kick 24-5.jpg
rinaldi kick 24-5.jpg (5.27 KiB) Viewed 656 times

User avatar
Brad McIntosh
Guru Member
Posts: 507
Joined: Wed, May 18 2005, 6:59PM
Company Name: CNC Automation
Location: St. Zotique, Québec, Canada

Re: Part Editor & Constraint manager

Postby Brad McIntosh » Mon, Jun 21 2010, 9:53AM


I reviewed your cabinet and I think that the main issue was that the part itself had been re-sized to 29.875" wide within the constraints manager - meanwhile the "cabinet" that contained it was only 24.5" wide. Since the widths did not "match" you could not re-size. I just reset the width back to 24.5 to match the "cabinet" and things worked.

(Note: I also had tried to simplify the constraints, which did not seem to help, but work none the less.)

It re-sizes correctly now....

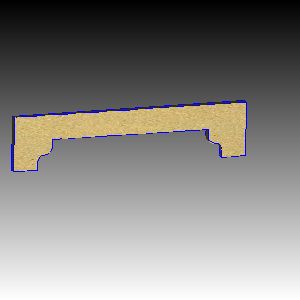

rinaldi kick 24-5-CNC.jpg
rinaldi kick 24-5-CNC.jpg
rinaldi kick 24-5-CNC.jpg (7.08 KiB) Viewed 645 times
rinaldi kick 24-5-CNC.hsf
rinaldi kick 24-5-CNC.hsf
(130.02 KiB) Downloaded 29 times
