Sink cut out in counter top

Postby tim lucas » Sat, Feb 19 2011, 11:52AM

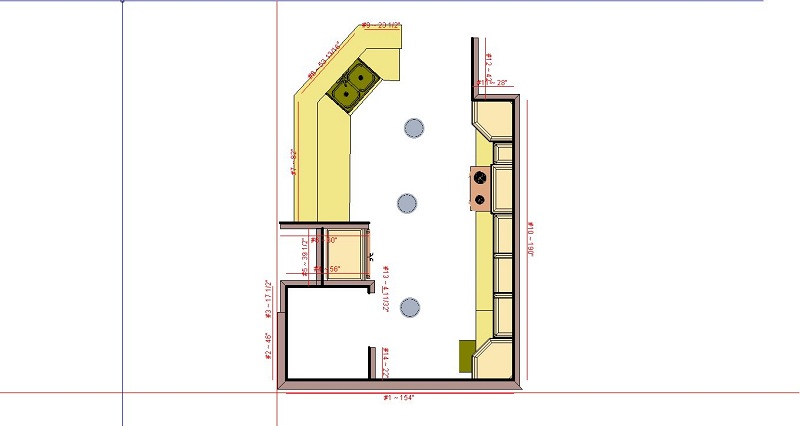

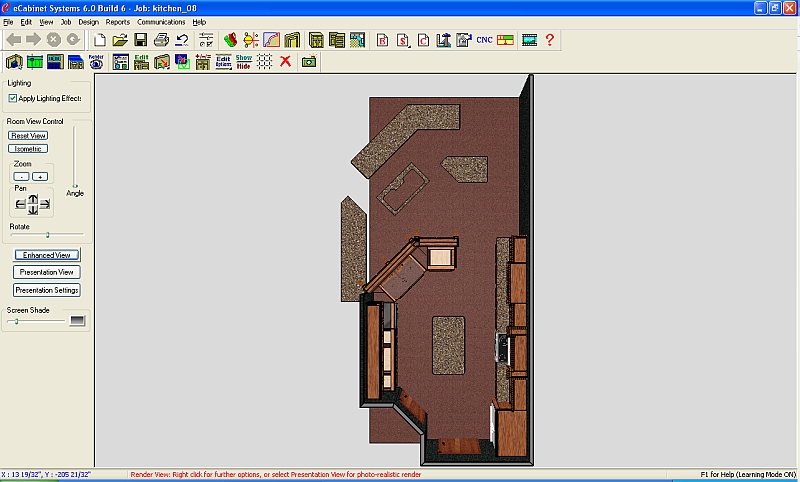

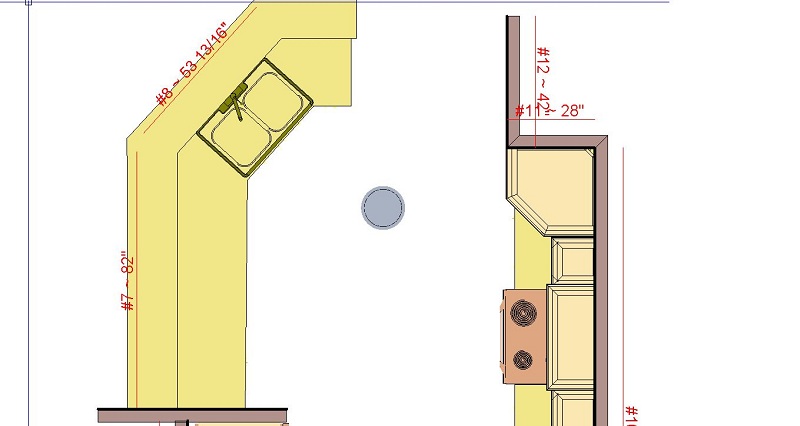

I always take my counter top in the Parts Editor to cut out for my display sink but this time my counter top is on a 45 degree angle and I cant see how to mark the area. Is there a way to rotate the top in parts editor :?:

HP Desktop
i5 2400 @ 3.10 GHz
8.0 G Ram
Win 7 Pro
Nvidia Quadro NVS 290

Blessed is the man who finds wisdom,
the man who gains understanding.

User avatar
Kerry Fullington
Wizard Member
Posts: 4566
Joined: Mon, May 09 2005, 7:33PM
Company Name: ProSource of Amarillo
Country: UNITED STATES
Location: Amarillo, TX

Re: Sink cut out in counter top

Postby Kerry Fullington » Sat, Feb 19 2011, 9:22PM

Tim,

Make your top for the sink a seperate top the size of your cabinet, this makes the cuttout simple, then do the rest of the tops.

tim lucas
Guru Member
Posts: 252
Joined: Thu, Nov 29 2007, 5:18PM
Company Name: Tim Lucas Custom Woodworks LLC
Country: UNITED STATES
Location: bell, florida
Contact:

Re: Sink cut out in counter top

Postby tim lucas » Sat, Feb 19 2011, 10:23PM

Kerry, Thank you, I just did not think of it that way :shock: but it worked just right

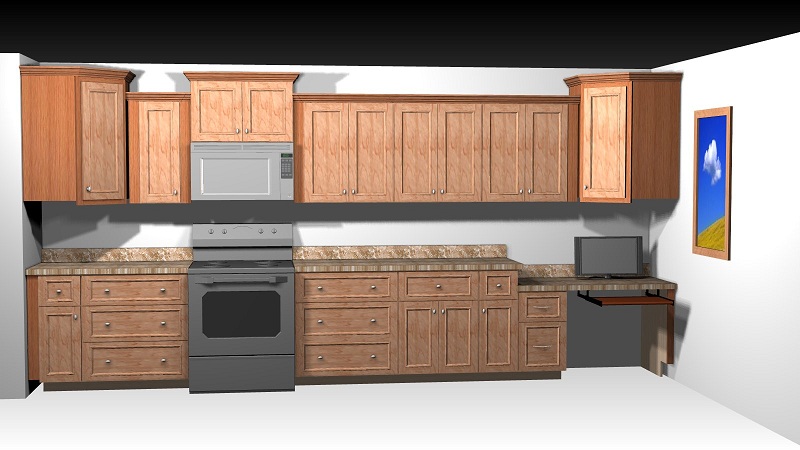

A while back I seen you post that when it comes to lighting - less is better, I have a problem that for my base cabinets to light up ok I have to turn up the brightness - then the wall cabinets washout or add more lights like this - how do you make it balance out ?


lights 2.jpg
HP Desktop
i5 2400 @ 3.10 GHz
8.0 G Ram
Win 7 Pro
Nvidia Quadro NVS 290

Blessed is the man who finds wisdom,
the man who gains understanding.

Nick M Singer
Guru Member
Posts: 828
Joined: Fri, Jun 17 2005, 12:23AM
Location: South Africa

Re: Sink cut out in counter top

Postby Nick M Singer » Sun, Feb 20 2011, 12:27AM

Tim put a light in at a lower level

tim lucas
Guru Member
Posts: 252
Joined: Thu, Nov 29 2007, 5:18PM
Company Name: Tim Lucas Custom Woodworks LLC
Country: UNITED STATES
Location: bell, florida
Contact:

Re: Sink cut out in counter top

Postby tim lucas » Sun, Feb 20 2011, 7:10PM

Nick M Singer wrote:Tim put a light in at a lower level


Yep that works even better

Thanks
HP Desktop
i5 2400 @ 3.10 GHz
8.0 G Ram
Win 7 Pro
Nvidia Quadro NVS 290

Blessed is the man who finds wisdom,
the man who gains understanding.
