Vanity cabinet with Open Bottom

Postby Justin Wallace » Wed, Nov 22 2017, 12:52AM

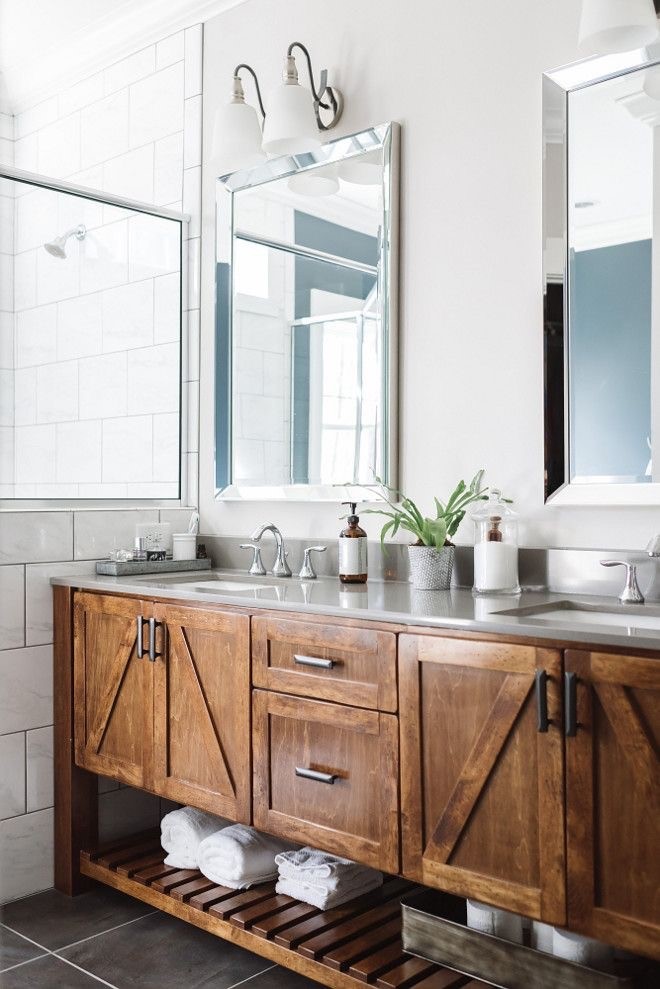

I am trying to work on a vanity cabinet like the attached file. I can't seem to figure out how to create the slat deck. Any suggestions?
Attachments

Carmen Addamo
Junior Member
Posts: 68
Joined: Sun, Oct 19 2014, 8:33PM
Company Name: Frank Raffaele and Sons Custom
Country: UNITED STATES

Re: Vanity cabinet with Open Bottom

Postby Carmen Addamo » Wed, Nov 22 2017, 4:35AM

Stretcherss, stretchers and more stretchers. I would utilze the advance settings, most importantly insets #5 and 6. When working on one stretcher set inset #5 to the slat on the left and inset #6 to the slat to the right of the one your currently working on. You will have to addresss each stretcher twice as you place one the next one in line will not have been created yet. Hopefully that makes sense.

This will make resizing the piece in the future much easier. You will still need to bring the piece into the stretcher editor when resizing as the slats will get wider or narrower as the width of the piece changes, but much quicker than the initial build.

Justin Wallace
New Member
Posts: 3
Joined: Wed, Sep 27 2017, 10:07AM
Company Name: Home Design by Justin
Country: UNITED STATES

Re: Vanity cabinet with Open Bottom

Postby Justin Wallace » Wed, Nov 22 2017, 8:55AM

I will give that that a shot this afternoon. I tried stretchers but it was telling me the two parts selected were not compatible. I probably had something set wrong. It was getting late and I was pretty tired, haha. Thank you for your quick reply.

Clint Buechlein
Thermwood Team
Posts: 182
Joined: Fri, May 15 2015, 1:21PM
Company Name: Thermwood Corp
Country: UNITED STATES

Re: Vanity cabinet with Open Bottom

Postby Clint Buechlein » Wed, Nov 22 2017, 9:07AM

You'll probably have to create a dummy stretcher from left to right first so you can get a front to back stretcher in. You can set the dummy one as a phantom part so it doesn't show up on cut list or go to CNC.

-Clint-
