Changing grain direction

Postby Carmen Addamo » Thu, Aug 09 2018, 4:05PM

Is it possible to change the direction of cabinet backs so if I have a cabinet that is 40" tall and 95" wide I can install the back accordingly so as not to have a seam. I see that I can manipulate the grain direction but doesn't change the width and length specs.

Donald Thomson
Guru Member
Posts: 765
Joined: Thu, May 14 2009, 11:41PM
Company Name: Diamond Lake Custom Woodworks
Location: Newport, WA

Re: Changing grain direction

Postby Donald Thomson » Thu, Aug 09 2018, 5:58PM

I think you could create a new sheet good that is the size you are looking for. So instead of the length being 96, make it 40. And make the width 95 instead of 48.

Don Thomson
Diamond Lake Custom Woodworks, LLC
Newport, WA

tim lucas
Guru Member
Posts: 317
Joined: Thu, Nov 29 2007, 5:18PM
Company Name: Tim Lucas Custom Woodworks LLC
Location: bell, florida

Re: Changing grain direction

Postby tim lucas » Thu, Aug 09 2018, 8:01PM

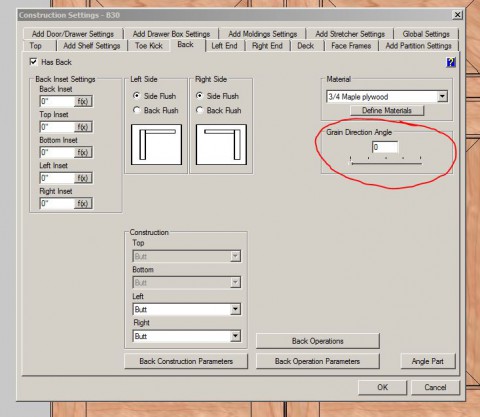

Yes you can change the grain. Take the cabinet to the editor click on the back and enter the angle you need. You can change any sheet good the same way - sides , deck top ...

Tim Lucas Custom Woodworks LLC
