need help with shape manager tool

Postby Thomas strembitsky » Fri, Aug 24 2018, 9:47AM

cant get this file to turn into a .tol keep getting this error message
im attaching the original dxf and my tool

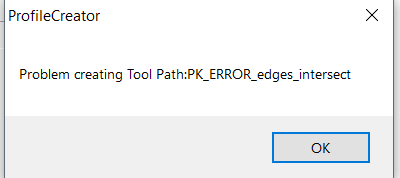

error message.PNG
error message.PNG (3.86 KiB) Viewed 2561 times


the tool file.zip
(27.73 KiB) Downloaded 197 times
Intel(R) Core(TM) i5-6400 @ 2.70GHz 8.00 GB RAM
NVIDIA GeForce GTX 950
Windows 10 Professional 64-bit
http://www.trueform.ca
CS43 cnc

User avatar
Troy Hollinshead
Junior Member
Posts: 48
Joined: Wed, Apr 30 2014, 4:13PM
Company Name: Leidys Custom Woodworking
Country: UNITED STATES
Location: Mercersburg, Pennsylvania
Contact:

Re: need help with shape manager tool

Postby Troy Hollinshead » Fri, Aug 24 2018, 10:12AM

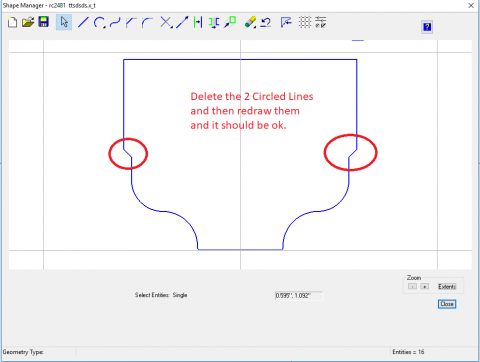

rc2481  ttsdsds.png

Clint Buechlein
Thermwood Team
Posts: 501
Joined: Fri, May 15 2015, 1:21PM
Company Name: Thermwood Corp
Country: UNITED STATES

Re: need help with shape manager tool

Postby Clint Buechlein » Fri, Aug 24 2018, 10:22AM

You can also use the Trim Two tool for the intersection points. The tops of the line don't touch the vertical portion, the bottoms of the line intersect the lower vertical lines. Something is off in the DXF from Amana. Mastercam does not recognize it as a chain.

-Clint-

Thomas strembitsky
Guru Member
Posts: 269
Joined: Fri, Jul 27 2012, 12:30PM
Company Name: true form cabinets
Country: CANADA
Contact:

Re: need help with shape manager tool

Postby Thomas strembitsky » Fri, Aug 24 2018, 11:56AM

thanks
