Postby Forrest Chapman » Wed, May 27 2020, 2:10PM

Has anyone figured out a way to profile model the inside edge of a door with a flat recessed panel?

Thomas strembitsky
Guru Member
Posts: 269
Joined: Fri, Jul 27 2012, 12:30PM
Company Name: true form cabinets
Country: CANADA
Contact:

Re: Profile modeler

Postby Thomas strembitsky » Thu, May 28 2020, 10:08AM

use a different program like panelmetrix
Intel(R) Core(TM) i5-6400 @ 2.70GHz 8.00 GB RAM
NVIDIA GeForce GTX 950
Windows 10 Professional 64-bit
http://www.trueform.ca
CS43 cnc

Forrest Chapman
eCabinets Beta Tester
Posts: 1164
Joined: Mon, May 30 2005, 2:26PM
Location: Anderson SC.
Contact:

Re: Profile modeler

Postby Forrest Chapman » Thu, May 28 2020, 10:53AM

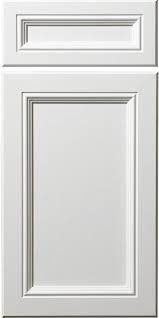

I have other programs I can make the door shown (example only) with dedicated profile tooling. However if I need to do a custom profile I have to profile model it. In this case I'm just going to model it in Solidworks but when I have a bunch of different sizes that sucks.
I profile modeled some door frames the other day and rabbited the back inside edge for glass. I think I'll do something like that for another job I have coming up and add a 1/4" panel.



Thanks, Forrest

Clint Buechlein
Thermwood Team
Posts: 493
Joined: Fri, May 15 2015, 1:21PM
Company Name: Thermwood Corp
Country: UNITED STATES

Re: Profile modeler

Postby Clint Buechlein » Thu, May 28 2020, 11:12AM

Forrest,

I feel like I am missing something with this one. I can't see too much of an issue creating a door like this. You won't be able to create it as an MDF door in the Door Designer, but you should be able to use a cabinet back, delete the extra parts, pocket the center in Part Editor, come out, set your constraints on the pocket, and then go back in to sweep the profile. Should now be a resizable "door" with your profiles. The "door" I made is attached.

-Clint-
Attachments
Recessed Panel.hsf
(278.02 KiB) Downloaded 59 times

Forrest Chapman
eCabinets Beta Tester
Posts: 1164
Joined: Mon, May 30 2005, 2:26PM
Location: Anderson SC.
Contact:

Re: Profile modeler

Postby Forrest Chapman » Thu, May 28 2020, 11:51AM

That is basically what I'm trying to do but for whatever reason I'm getting an error. Maybe it has to do with the profile touching the bottom of the pocket. I'll try it a few different ways to see if I can get it to work.

Thanks, Forrest

Clint Buechlein
Thermwood Team
Posts: 493
Joined: Fri, May 15 2015, 1:21PM
Company Name: Thermwood Corp
Country: UNITED STATES

Re: Profile modeler

Postby Clint Buechlein » Thu, May 28 2020, 12:57PM

Is it an error in eCabinets or at the machine? Let me know if you can't get it figured out.

-Clint-

Tommy Wieler
Junior Member
Posts: 82
Joined: Fri, Sep 22 2017, 7:49AM
Company Name: Silverpine Cabinets
Country: CANADA

Re: Profile modeler

Postby Tommy Wieler » Fri, May 29 2020, 8:48AM

Maybe it has to do with the profile touching the bottom of the pocket

Maybe you could try drawing the model so it stops .2mm off the bottom of the pocket, then just add .2mm to the daylight value of the modelling tool at the machine.

Forrest Chapman
eCabinets Beta Tester
Posts: 1164
Joined: Mon, May 30 2005, 2:26PM
Location: Anderson SC.
Contact:

Re: Profile modeler

Postby Forrest Chapman » Tue, Jun 02 2020, 3:17PM

Clint, I'm having a problem with these doors. It gives me a "Calculate Tool Path Error". I'm using a 1/4" BN and 1/8" BN. Can you take a look please?
Attachments
IKB_Coleman Kitchen doors and panels.zip
(1.74 MiB) Downloaded 43 times
Tooling.zip
(21.96 KiB) Downloaded 44 times

Forrest Chapman
eCabinets Beta Tester
Posts: 1164
Joined: Mon, May 30 2005, 2:26PM
Location: Anderson SC.
Contact:

Re: Profile modeler

Postby Forrest Chapman » Tue, Jun 02 2020, 6:39PM

Here is another door with the same profile that I was able to get it to apply on a flat recess panel by not letting the profile touch the bottom of the pocket. I'm still getting the same error when trying to nest it though. It will however work as a single door in PM with the same setup. Maybe it has something to do with the pocketing that doesn't occur in PM.
Attachments
Factory Delaware Glass or flat panel.tol
(17.19 KiB) Downloaded 43 times
Integrity door 2.hsf
(400.02 KiB) Downloaded 46 times
Test5.zip
(346.22 KiB) Downloaded 43 times
Tooling test5.zip
(21.95 KiB) Downloaded 40 times

Clint Buechlein
Thermwood Team
Posts: 493
Joined: Fri, May 15 2015, 1:21PM
Company Name: Thermwood Corp
Country: UNITED STATES

Re: Profile modeler

Postby Clint Buechlein » Wed, Jun 03 2020, 7:29AM

Forrest,

Can you post an export from Control Nesting? If you don't want to post it, you can email it to cabinets@thermwood.com

-Clint-

Forrest Chapman
eCabinets Beta Tester
Posts: 1164
Joined: Mon, May 30 2005, 2:26PM
Location: Anderson SC.
Contact:

Re: Profile modeler

Postby Forrest Chapman » Wed, Jun 03 2020, 8:19AM

Is the Tooling test5 file not what you need?

Clint Buechlein
Thermwood Team
Posts: 493
Joined: Fri, May 15 2015, 1:21PM
Company Name: Thermwood Corp
Country: UNITED STATES

Re: Profile modeler

Postby Clint Buechlein » Wed, Jun 03 2020, 9:18AM

The Save Tooling/Settings will only grab the tooling and settings from Control Nesting. It does not get us anything from Profile Modeler, your machines tool table, etc. Export gets us most everything.

-Clint-

Forrest Chapman
eCabinets Beta Tester
Posts: 1164
Joined: Mon, May 30 2005, 2:26PM
Location: Anderson SC.
Contact:

Re: Profile modeler

Postby Forrest Chapman » Wed, Jun 03 2020, 9:27AM

Sorry, its been a while.
Attachments
ControlNest6-17.cab.zip
(315.83 KiB) Downloaded 38 times

Clint Buechlein
Thermwood Team
Posts: 493
Joined: Fri, May 15 2015, 1:21PM
Company Name: Thermwood Corp
Country: UNITED STATES

Re: Profile modeler

Postby Clint Buechlein » Wed, Jun 03 2020, 10:51AM

So I have two possible solutions to work around the issue:

1. Your group settings are calling for a 1/4" ballnose and 1/8" endmill to model. If you actually wanted the second tool to be an 1/8" ballnose(not sure as your previous post indicated both were ballnose bits), if you add a stock to leave on to the 1/4" tool, it should all work and model.

2. Roll Control Nesting back to 6.14.

There is an issue in part of what does the modeling that requires a deep dive to see what is going. Rolling back to 6.14 puts you at the earlier version of the portion of the software that is causing issue.

I'll report back when I know more.

-Clint-

Forrest Chapman
eCabinets Beta Tester
Posts: 1164
Joined: Mon, May 30 2005, 2:26PM
Location: Anderson SC.
Contact:

Re: Profile modeler

Postby Forrest Chapman » Wed, Jun 03 2020, 10:59AM

For that particular profile I'd like it to use the 1/4" BN for the main cutting with the 1/8" BN getting closer in the corners and the 1/8" end mill to clean out the step downs. Is that not possible? If I set the 1/4" BN to leave stock will it not do the entire profile again with the 1/8" BN?
