Built-in Sharp undercounter MW

Postby Gene Davis » Sat, Dec 15 2007, 5:39PM

These Sharps are nice, but pricey.

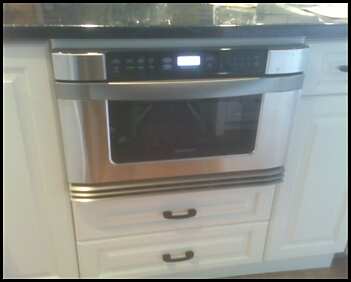

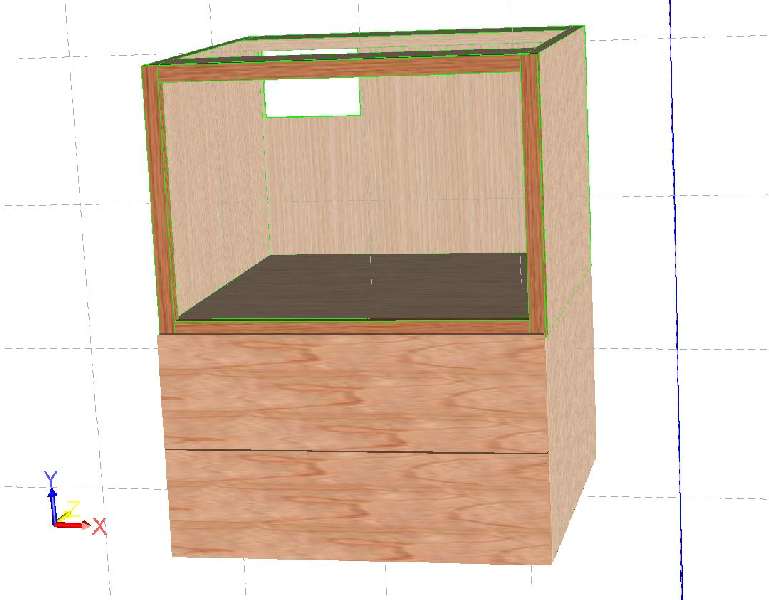

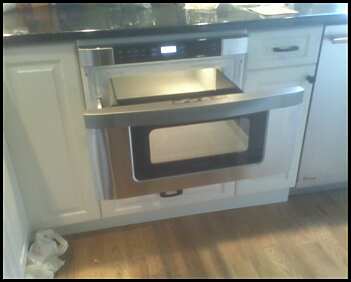

I thought you might like to see how one looks done in a frameless arrangement. The cab housing it is a faceframed box with depth 3/4 less than the drawerstack box underneath. The cutout in the back is per Sharp's spec, and is for the wall receptacle.

Sorry about the quality of the photos, as they were taken with my phone.
Attachments

tim lucas
Senior Member
Posts: 235
Joined: Thu, Nov 29 2007, 5:18PM
Company Name: Tim Lucas Custom Woodworks LLC
Country: UNITED STATES
Location: bell, florida
Contact:

Re: Built-in Sharp undercounter MW

Postby tim lucas » Sat, Dec 15 2007, 5:49PM

:beer: Nice job and your phone pics look good to :beer:
HP Desktop
i5 2400 @ 3.10 GHz
8.0 G Ram
Win 7 Pro
Nvidia Quadro NVS 290

Blessed is the man who finds wisdom,
the man who gains understanding.

Michael Yeargain
eCabinets Beta Tester
Posts: 1738
Joined: Tue, May 17 2005, 8:33PM
Company Name: Timeless Cabinetry and Mantles
Location: South East
Contact:

Re: Built-in Sharp undercounter MW

Postby Michael Yeargain » Sun, Dec 16 2007, 9:18AM

How much overhang did the microwave have over the frame?

What was the opening and frame size?
Windows 7 Pro/10 Pro 64 bit
AMD Phenom 9650 Quad-Core Processor 2.3Ghz 8GRAM 1TB
NVIDIA GeForce GT 220 1GB

User avatar
Brian Shannon
eCabinets Beta Tester
Posts: 974
Joined: Thu, May 19 2005, 10:50PM
Location: Los Alamos, CA

Re: Built-in Sharp undercounter MW

Postby Brian Shannon » Sun, Dec 16 2007, 11:59AM

Here's one that I did.
Attachments
sharp microwave drawer.pdf
(360.68 KiB) Downloaded 53 times

Mike Snodgrass
Junior Member
Posts: 70
Joined: Mon, Nov 28 2005, 10:12PM
Location: LUBBOCK, TX

Re: Built-in Sharp undercounter MW

Postby Mike Snodgrass » Mon, Dec 17 2007, 1:15PM

I have been using this appliance very regularly and when I perform a part editor cut on the back, it yanks a couple of my dados out of the cabinet.

I've had to resort to manual labor for my part editor cuts.
