DFX import

Moderators: Jason Susnjara, Larry Epplin, Clint Buechlein, Scott G Vaal

leigh mills
Senior Member
Posts: 211
Joined: Wed, Jan 23 2008, 9:49AM
Location: England UK
Contact:

DFX import

Postby leigh mills » Fri, May 09 2008, 5:51AM

Hi Guys

I am trying to bring in a DFX File which I can do, but when bringing it in the shape manager there isnt a way to rotate the part, so is there a way of doing this? Also when I take the DFX file into the line drawing editor I can then rotate but I cant then save the file again so I can use the rotated version within the shape manager, so again is there a way around this?

Thanks in advance.

Leigh Mills

User avatar
DanEpps
Wizard Member
Posts: 5852
Joined: Thu, Jul 28 2005, 10:18AM
Company Name: Dan Epps
Country: UNITED STATES
Location: Rocky Face GA

Re: DFX import

Postby DanEpps » Fri, May 09 2008, 6:03AM

You can rotate geometry (DXF in this case) using the Mirror icon on the menu bar in Contour Mode of the Part Editor.

icon bar.jpg
icon bar.jpg (13.15 KiB) Viewed 3772 times

leigh mills
Senior Member
Posts: 211
Joined: Wed, Jan 23 2008, 9:49AM
Location: England UK
Contact:

Re: DFX import

Postby leigh mills » Fri, May 09 2008, 6:13AM

Hi Dan how you doin,

The problem Im having though is I want to rotate 90° and using the mirror will only flip the image. Is there another way of doing it?

Thanks

User avatar
DanEpps
Wizard Member
Posts: 5852
Joined: Thu, Jul 28 2005, 10:18AM
Company Name: Dan Epps
Country: UNITED STATES
Location: Rocky Face GA

Re: DFX import

Postby DanEpps » Fri, May 09 2008, 6:54AM

Ahhhh...gotcha.

Since you cannot rotate parts in the Part Editor, you will have to reorient the DXF in and external CAD program.

leigh mills
Senior Member
Posts: 211
Joined: Wed, Jan 23 2008, 9:49AM
Location: England UK
Contact:

Re: DFX import

Postby leigh mills » Fri, May 09 2008, 7:08AM

Ye I thought this was the case, thanks Dan

User avatar
Scott G Vaal
Thermwood Team
Posts: 1740
Joined: Tue, May 17 2005, 12:44PM
Company Name: Thermwood Corporation
Location: Thermwood Corp: Dale, Indiana
Contact:

Re: DFX import

Postby Scott G Vaal » Fri, May 09 2008, 7:48AM

Gentlemen,

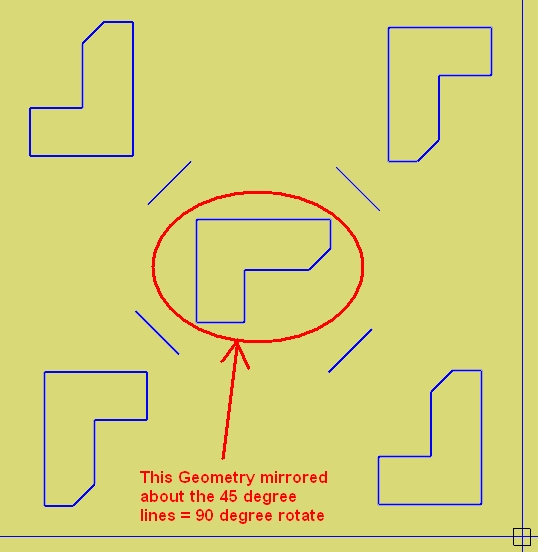

There is actually a very simple way to rotate any geometry 90 degrees (or others too) in eCabinet Systems by using the mirror functionality. (View my attached jpg and it will make sense) But the short of it is:
1.) Make a line that is 45 degrees some where (near the geometry, in the middle of it or even a 45 line that is within it already, does not matter)
2.) Select the geometry you want to rotate (the chain select method is handy for this)
3.) Select mirror, chose the line mirror option, select the 45 line and you have your 90 degree rotate.

Hope this helps.
Attachments
Rotate 90 Via Mirror.jpg
Rotate 90 Via Mirror.jpg (53.28 KiB) Viewed 3627 times
Regards,

Scott Vaal
-Thermwood/eCabinet Systems-
Dell Precision / Xeon E3-1240 / 8GB RAM /NVIDIA Quadro K2000

User avatar
DanEpps
Wizard Member
Posts: 5852
Joined: Thu, Jul 28 2005, 10:18AM
Company Name: Dan Epps
Country: UNITED STATES
Location: Rocky Face GA

Re: DFX import

Postby DanEpps » Fri, May 09 2008, 7:53AM

Well shiver me timbers...I knew it could be done but I just didn't have enough coffee coursing through the veins yet. :beer:

It sure would be nice to have a rotate option to go along with mirroring, moving, copying and offseting. :wink: :wink:

leigh mills
Senior Member
Posts: 211
Joined: Wed, Jan 23 2008, 9:49AM
Location: England UK
Contact:

Re: DFX import

Postby leigh mills » Fri, May 09 2008, 9:39AM

That is very good to know, thanks you very much

Mike Seisser
eCabinets Beta Tester
Posts: 544
Joined: Wed, Feb 22 2006, 11:40PM
Company Name: NCB Inc.
Country: UNITED STATES

Re: DFX import

Postby Mike Seisser » Fri, May 09 2008, 10:58AM

Scott beat me to it. :cry:
Proper Planning Prevents Poor Production.
