Drw Guides

Postby John J. Desmond » Wed, Jan 14 2009, 5:46PM

I was wondering how some of you installed your drawer guides. Where I work, we attach them to "track backs" which is 3/4" in kitchen cabinets and 1/2" for vanities. We then staple them to the back of the cabinet. I was wondering, and I am sure there is, if there is a better way to do it? We use 1/2" material for most partitions as well as for unfinished ends. It is difficult to screw them to the sides and partitions this way.

John
Wood Designs Unlimited
Custom Furniture & Cabinets

http://wooddesignsunlimited.com

Nick M Singer
Guru Member
Posts: 828
Joined: Fri, Jun 17 2005, 12:23AM
Location: South Africa

Re: Drw Guides

Postby Nick M Singer » Sun, Jan 18 2009, 1:39AM

John what is a "Track Back"? I thought most people would just screw the carcass profile to the side.

User avatar
Damon Nabors
eCabinets Beta Tester
Posts: 923
Joined: Wed, Apr 05 2006, 5:50PM
Location: Marion, Ar.
Contact:

Re: Drw Guides

Postby Damon Nabors » Sun, Jan 18 2009, 1:16PM

It sounds like he is referring to a rear drawer slide socket. That is the only thing I can think of that would or could be stapled to the back of a cabinet. I have had to go out and repair some of these things when the socket is stapled and the drawer gets overloaded and causes the socket to fall off. Some of these sockets are mounted in a track to allow side to side movement as the drawer goes in and out to prevent the drawer from binding up in the event the opening is too tight or too loose.
Damon Nabors

User avatar
John J. Desmond
Senior Member
Posts: 238
Joined: Wed, Oct 24 2007, 9:58PM
Company Name: Wood Designs Unlimited
Location: Joplin, Missouri
Contact:

Re: Drw Guides

Postby John J. Desmond » Sun, Jan 18 2009, 3:20PM

Yes Damon, it is a plastic mount that the drawer guide slides into. The plastic mount is then screwed onto a piece of 3/4" material and then stapled to the back of the cabinet. Notice in the attachment I make the drawer an inch narrower than the opening so as to receive the drawer guide which is a half inch. I attach the front of the guide to the inside of the face frame between the drawer and the stile. Notice at the back of the drawer there is no place to attach the guide unless a socket is used. I guess you could use filler strips along the guides. Do any of you make the drawer openings that same size as the face frame and attache them right to the side and partition of the cabinet? I am just trying to see how others do it so that I am not stuck doing it the way the "other" guy does it simply because that is what I was taught. I hope that makes sense. Anyone's experience will be appreciated.

John

Sample Vanity.jpg
Wood Designs Unlimited
Custom Furniture & Cabinets

http://wooddesignsunlimited.com

User avatar
Damon Nabors
eCabinets Beta Tester
Posts: 923
Joined: Wed, Apr 05 2006, 5:50PM
Location: Marion, Ar.
Contact:

Re: Drw Guides

Postby Damon Nabors » Sun, Jan 18 2009, 4:30PM

Using your example and assuming the right side of that cabinet is not a finished end. I would flush out the partition and the right side with the inside of the face frame so that I could mount my slides directly onto the panels.
Damon Nabors

User avatar
John J. Desmond
Senior Member
Posts: 238
Joined: Wed, Oct 24 2007, 9:58PM
Company Name: Wood Designs Unlimited
Location: Joplin, Missouri
Contact:

Re: Drw Guides

Postby John J. Desmond » Sun, Jan 18 2009, 4:56PM

Damon,
Thanks for the information. I use 2" stiles which on an unfinished end would then leave an 1 1/2" scribe. Is this what you would do? It would seem to be fine on the partition which would give a larger area for use on the sink side. It sure would make it easier for one man to install slides. Where I work it takes to guys to install slides. One guy pushes the drawer in and holds it straight, the other staples it off from the back. Just so you know, I work for a man who explained that he wanted his shop to be the wal-mart of cabinet shops. It is pretty low budget but yet the finished product looks fairly nice. He just does what it takes to get the job done. I want to do more for my customers. I know I need to break away from what I have learned there and upgrade my own work. I am appreciative to all you guys who are willing to offer seasoned advice and helps.

John

Sample Vanity 2.jpg
Wood Designs Unlimited
Custom Furniture & Cabinets

http://wooddesignsunlimited.com

User avatar
Damon Nabors
eCabinets Beta Tester
Posts: 923
Joined: Wed, Apr 05 2006, 5:50PM
Location: Marion, Ar.
Contact:

Re: Drw Guides

Postby Damon Nabors » Sun, Jan 18 2009, 5:24PM

Yes, if the end is unfinished, that is what I would do. You do not benefit from having the extra 1.25" space inside of a drawer stack.

KREG makes a tool that holds your slide in line with the face frame so that you can attach them by yourself. I use it all the time on FF type cabinets.

Look HERE

If you need to, flush the partition side and then use a vertical 2" or 3" wide strip on the end panel side towards the front of the cab just behind the face frame and then another at the rear. This way you only have two strips rather than blocking out each individual drawer slide.
Attachments
forum cabinet.jpg
forum cabinet.jpg (55.48 KiB) Viewed 5761 times
Damon Nabors

User avatar
Damon Nabors
eCabinets Beta Tester
Posts: 923
Joined: Wed, Apr 05 2006, 5:50PM
Location: Marion, Ar.
Contact:

Re: Drw Guides

Postby Damon Nabors » Sun, Jan 18 2009, 5:30PM

One other thing about the vertical strips. You can use them like a ladder rack and premark your slide position so that you can align your slides accurately if you do not have a jig of some sorts like the one I posted by Kreg.
Damon Nabors

User avatar
Gary Puckett
Wizard Member
Posts: 1324
Joined: Mon, May 19 2008, 1:39PM
Company Name: The Woodworkery
Location: Saint Charles, Missouri
Contact:

Re: Drw Guides

Postby Gary Puckett » Sun, Jan 18 2009, 7:08PM

John,

Try using blum tandom they cost a little more but you get a much better slide and installation is a one man job so 1) your client gets a much better slide and 2) you save on labor.

Gary
HP Pavilion
Vista home Premium 64bit S. pack 2
AMD Phenom-X4
9850 Quad-Core Processor
6.0GB/Go Memory
1 TB/To Hard Drive
Nividia GeForce 9800 GT

User avatar
Gary Puckett
Wizard Member
Posts: 1324
Joined: Mon, May 19 2008, 1:39PM
Company Name: The Woodworkery
Location: Saint Charles, Missouri
Contact:

Re: Drw Guides

Postby Gary Puckett » Sun, Jan 18 2009, 7:42PM

John,


Sorry didn't read all of your post these slides are pricey, and I misspelled the slide it is blum tandem.

Gary
HP Pavilion
Vista home Premium 64bit S. pack 2
AMD Phenom-X4
9850 Quad-Core Processor
6.0GB/Go Memory
1 TB/To Hard Drive
Nividia GeForce 9800 GT

Rick Palechuk
Wizard Member
Posts: 1896
Joined: Wed, May 18 2005, 7:54PM
Company Name: Milltech Millworks Ltd.
Country: CANADA
Location: Edmonton, Alberta
Contact:

Re: Draw Guides

Postby Rick Palechuk » Mon, Jan 19 2009, 8:59AM

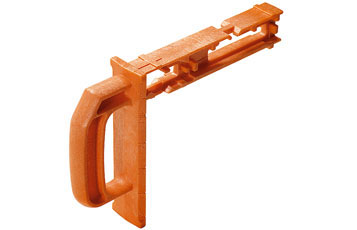

This jig will hold the slide in the correct position for you to fasten it to the carcase. All manufacturers have there version of this. (This one is Blum).
Attachments
Drawer Guide Jig.jpg
Drawer Guide Jig.jpg (10.18 KiB) Viewed 5746 times

Nick M Singer
Guru Member
Posts: 828
Joined: Fri, Jun 17 2005, 12:23AM
Location: South Africa

Re: Drw Guides

Postby Nick M Singer » Mon, Jan 19 2009, 10:14AM

Can you use that Jig with Tandem Rick?

Rick Palechuk
Wizard Member
Posts: 1896
Joined: Wed, May 18 2005, 7:54PM
Company Name: Milltech Millworks Ltd.
Country: CANADA
Location: Edmonton, Alberta
Contact:

Re: Drw Guides

Postby Rick Palechuk » Mon, Jan 19 2009, 3:17PM

I'm not sure. I beleive it is for the Epoxy slides only.

User avatar
Gary Puckett
Wizard Member
Posts: 1324
Joined: Mon, May 19 2008, 1:39PM
Company Name: The Woodworkery
Location: Saint Charles, Missouri
Contact:

Re: Drw Guides

Postby Gary Puckett » Mon, Jan 19 2009, 3:49PM

No Nick you can't , but if you use 3" wide rails between your drawer openings you can just set the tandem on the rail and up against the side works great.

Gary
HP Pavilion
Vista home Premium 64bit S. pack 2
AMD Phenom-X4
9850 Quad-Core Processor
6.0GB/Go Memory
1 TB/To Hard Drive
Nividia GeForce 9800 GT

BEN HOLM
Junior Member
Posts: 42
Joined: Wed, Nov 19 2008, 1:05AM

Re: Drw Guides

Postby BEN HOLM » Mon, Jan 19 2009, 9:21PM

Were do you guys get your drawer guides and hinges. Namely blum tandem. Im sure some of you get them locally but how about an online store or on in the Los Angeles area. The cheapest I found was at WWW.ahturf.com $27.98 for the 21" Tandem slide - full extension - integrated blumotion 562H5330B and the clips are $0.72 each. Then there is shipping. But no TAX!
