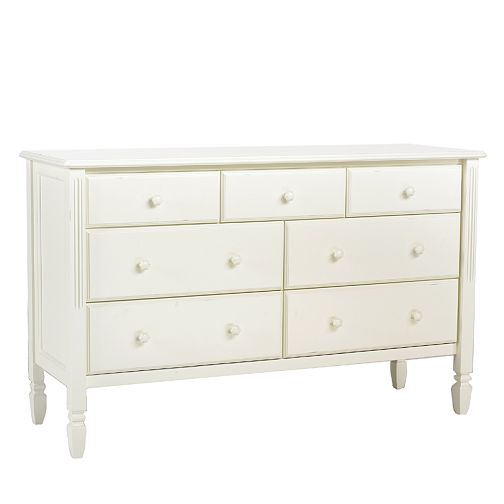

At the suggestion of Dan Epps, I'm going to attempt to post a pic of
a wide dresser I am trying draw in eCab 4.1.4 This is tied in with another
post entitled \"Creation of Dresser\". OK, here goes, I hope I do this right
Bill Hodge
Attachments
Madeline Style Extra Wide Dresser.jpg (12.86 KiB) Viewed 7711 times
DanEpps
Wizard Member
Posts: 5852 Joined: Thu, Jul 28 2005, 10:18AM
Company Name: Dan Epps
Country: UNITED STATES
Location: Rocky Face GA
Post
by DanEpps » Thu, Jun 08 2006, 2:51PM
I'd say you got it right Bill. That looks nice.
Brad McIntosh
Guru Member
Posts: 539 Joined: Wed, May 18 2005, 6:59PM
Company Name: CNC Automation
Country: CANADA
Location: St. Zotique, Québec, Canada
Contact:
Post
by Brad McIntosh » Thu, Jun 08 2006, 6:16PM
Dan,
I think that that picture is what Bill would LIKE to draw up in eCabinets....
I may be wrong...
Tom Houser
Senior Member
Posts: 165 Joined: Wed, May 18 2005, 8:26PM
Location: Coos Bay, Or.
Contact:
Post
by Tom Houser » Thu, Jun 08 2006, 6:31PM
I'm thinking your righr Brad.
David Norton
Guru Member
Posts: 710 Joined: Thu, May 19 2005, 11:01AM
Company Name: Custom Trim and Millwork
Country: UNITED STATES
Location: Lawrenceburg,Tennessee
Post
by David Norton » Thu, Jun 08 2006, 7:16PM
Should be able to use legs from Adams, Make the end panels as separate
parts. Lose the end panels on a frameless cab, and associate new end panels to substitute. Add drawers and yer done.
Dave Norton
David Norton
Guru Member
Posts: 710 Joined: Thu, May 19 2005, 11:01AM
Company Name: Custom Trim and Millwork
Country: UNITED STATES
Location: Lawrenceburg,Tennessee
Post
by David Norton » Thu, Jun 08 2006, 8:16PM

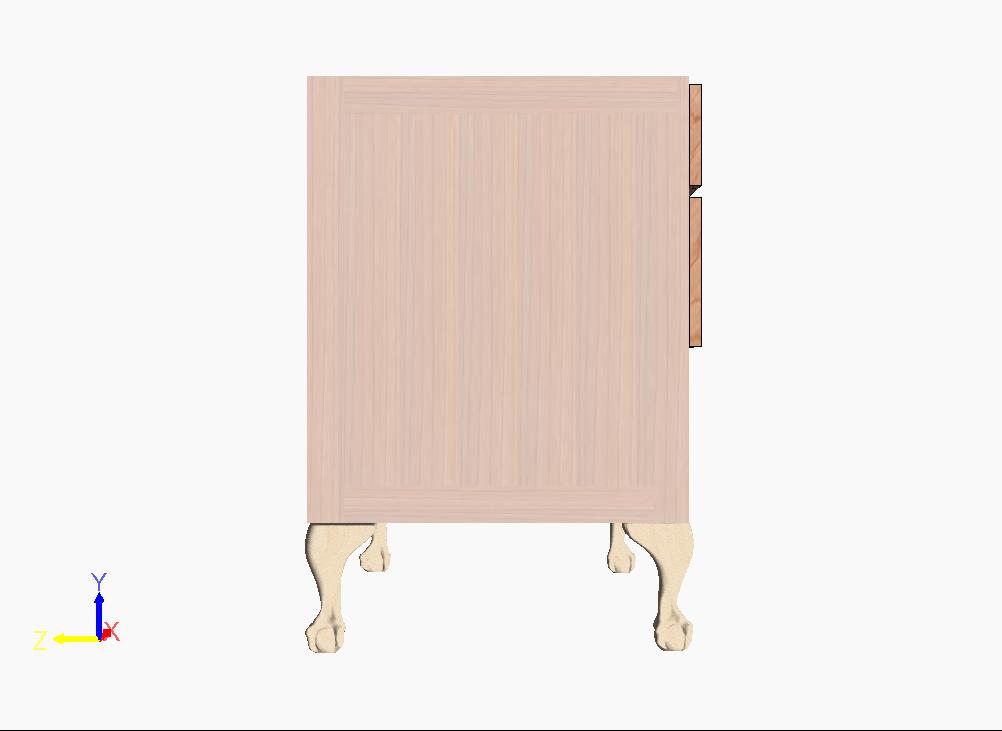

This is what I came up with on the fly. Drawers should be sized to fit openings.
Attachments
Dave Norton
