Profiled Part Sizes

Postby Troy Hollinshead » Tue, Nov 25 2014, 10:43AM

New to using ecabinets shape manager. I have made a 12.5 wide piece, but it cuts at rite around 12.1875 not the 12.5 its supposed to be. I set the depth of the bit to -.75 and mic'd the material at .78 I have included the tool file I made and the assembly. any help would be great.
Attachments
Tool_and_Assembly.zip
(37.88 KiB) Downloaded 161 times

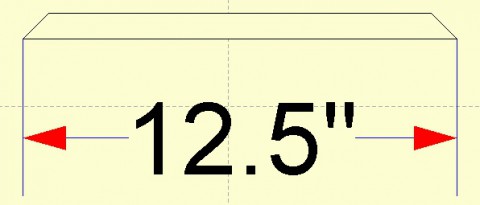

Angled Part.jpg

User avatar
Troy Hollinshead
New Member
Posts: 14
Joined: Wed, Apr 30 2014, 4:13PM
Company Name: Leidys Custom Woodworking
Country: UNITED STATES
Location: Mercersburg, Pennsylvania
Contact:

Re: Profiled Part Sizes

Postby Troy Hollinshead » Sat, Aug 22 2015, 7:04PM

I was just looking back thru my post and noticed this one and figured I post again.
If I remember correctly............
I fixed this error in the profile modeler, by changing the bit from spherical to straight.
