Signs from DXF

Postby Gerry A Brown » Sun, Jun 17 2012, 6:08PM

Hello,

We have been approached by a sign company in the area to route signs on our router. Their software will export files in DXF format.

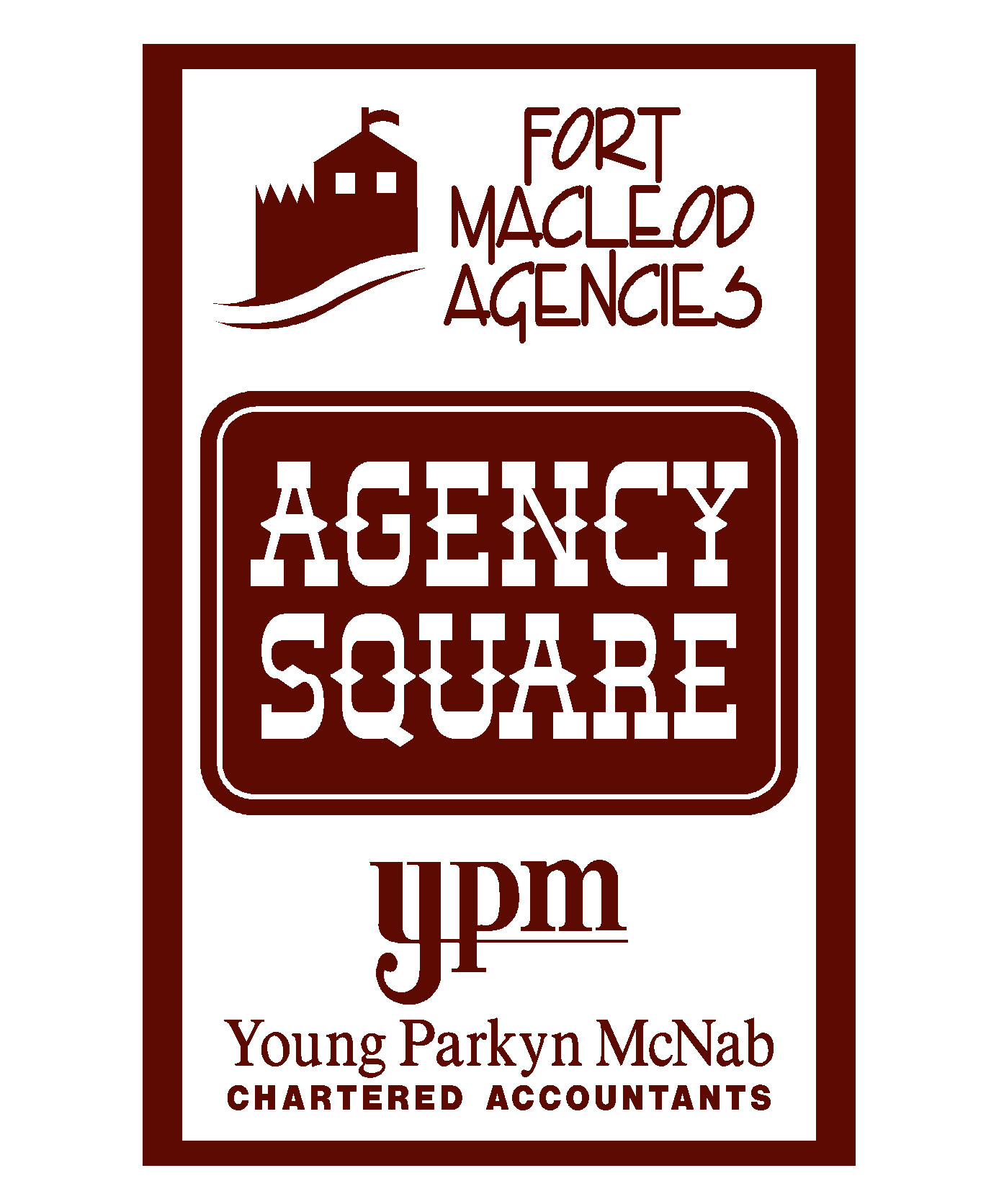

Has anyone tried to cut signs from DXF files? I use TurboCad & have read through the CN manual about running DXF files & it looks like it will be a lot of work to get the sign file to the point where it could be run on the machine. I have attached the jpg of the sign they want cut, the white would be cut away.
The sign is 54" x 84" & the field would be .5" deep.

I can see cutting simple panels with pockets & dadoes but don't know if it will be worth trying to get the sign file to the point it can be run? :wall:


Thanks,
Gerry

Daniel Odom
Senior Member
Posts: 204
Joined: Thu, Oct 20 2011, 12:52PM
Company Name: Carlton Kitchen and Bath
Country: UNITED STATES

Re: Signs from DXF

Postby Daniel Odom » Sun, Jun 17 2012, 8:23PM

It would be nice if islands in pockets were supported, I'm not complaining though, dxf nesting is great for simple parts. I've seen people on here post ways to do this by dividing entities with islands into separate pockets... looks time consuming, but not impossible. Another way to do this is to manually offset poly lines by distance equal to the diameter of the bit and use a center-line layer to manually lay out the tool path for the pocket, use chain comp in and out on the letters outlines.

User avatar
Gerry A Brown
Senior Member
Posts: 135
Joined: Fri, May 27 2005, 8:56AM
Company Name: Old Style Woodwork
Country: CANADA
Location: Southern Alberta

Re: Signs from DXF

Postby Gerry A Brown » Sun, Jun 17 2012, 10:57PM

Hi Daniel,

Islands in pockets.......that is where I was coming to a halt in my thinking to make this work but did not not know what to call it :?

I think the DFX import will work well for some things but I am starting to think that signs is not one of those things.

Thanks,
Gerry

User avatar
Neville Bastian
Guru Member
Posts: 589
Joined: Fri, May 20 2005, 6:48PM
Company Name: Classic Cabinetry
Location: Albany Western Australia
Contact:

Re: Signs from DXF

Postby Neville Bastian » Mon, Jun 18 2012, 5:22AM

Gerry, we use artcam for signs and things we find a bit hard through Ecabinets. Are your sure the signwriters software does not export to the Thermwood as Artcam does. I think enroute does as well? Maybe you could get a dxf and send to the Thermwood guys and they could say if it possible?
Regards

Neville
Neville Australia

User avatar
Kerry Fullington
Wizard Member
Posts: 4566
Joined: Mon, May 09 2005, 7:33PM
Company Name: ProSource of Amarillo
Country: UNITED STATES
Location: Amarillo, TX

Re: Signs from DXF

Postby Kerry Fullington » Mon, Jun 18 2012, 6:25AM

Gerry,

Cut 2D software from Vectric is the easiest and least expensive way to do that sign.

User avatar
Brad McIntosh
Guru Member
Posts: 480
Joined: Wed, May 18 2005, 6:59PM
Company Name: CNC Automation
Location: St. Zotique, Québec, Canada
Contact:

Re: Signs from DXF

Postby Brad McIntosh » Mon, Jun 18 2012, 8:46AM

ArtCAM Express (Thermwood is an ArtCAM representative) should be able to do that as well for about $150. You may want to add the Advanced 2D Machining Module for some advanced "pocketing" features (about $150 extra). ArtCAM Express also has other modules that can be added on if you need additional features.

User avatar
Gerry A Brown
Senior Member
Posts: 135
Joined: Fri, May 27 2005, 8:56AM
Company Name: Old Style Woodwork
Country: CANADA
Location: Southern Alberta

Re: Signs from DXF

Postby Gerry A Brown » Mon, Jun 18 2012, 9:00AM

Hi,

So the consensus is clear. Well I am off to evaluate the programs you all have suggested.

One of my customers once told me his biggest fear was that he would spend almost enough to get what he needs. :joker:
That is always my concern when I am buying software like this although most seem to have a reasonable upgrade path.

Thanks everyone for your input,

Gerry

FredHirsch
Senior Member
Posts: 167
Joined: Tue, Oct 03 2006, 6:51PM
Location: Phoenix, AZ
Contact:

Re: Signs from DXF

Postby FredHirsch » Mon, Jun 18 2012, 11:34AM

Gerry,
We've been running the Vectric packages from version 1. Works very nicely with the router. I can't recommend them highly enough.
Fred
Fred Hirsch

User avatar
Gerry A Brown
Senior Member
Posts: 135
Joined: Fri, May 27 2005, 8:56AM
Company Name: Old Style Woodwork
Country: CANADA
Location: Southern Alberta

Re: Signs from DXF

Postby Gerry A Brown » Mon, Jun 18 2012, 1:10PM

Hi Fred,

I downloaded ArtCam express, VCarve Pro & Cut2D trial editions & are working through them to see if they will do the job for me.
They will all obviously do this sign but I need to think about future jobs also. The Full version of ArtCam is a bit of a heart stopper when you get to the bottom line :shock:

Thanks Fred,
Gerry

Scott Marshburn
Guru Member
Posts: 736
Joined: Sat, Mar 05 2011, 7:29AM
Company Name: Heritage WoodWorks
Country: UNITED STATES
Location: Jacksonville Nc
Contact:

Re: Signs from DXF

Postby Scott Marshburn » Tue, Jun 19 2012, 5:42AM

Gerry A Brown wrote:Hi Fred,

I downloaded ArtCam express, VCarve Pro & Cut2D trial editions & are working through them to see if they will do the job for me.
They will all obviously do this sign but I need to think about future jobs also. The Full version of ArtCam is a bit of a heart stopper when you get to the bottom line :shock:

Thanks Fred,
Gerry

Check out Aspire Trial Edition.
Yes! Oh Yes! I Think We Are Going to make It!
https://www.youtube.com/user/ecabinetstips

User avatar
Gerry A Brown
Senior Member
Posts: 135
Joined: Fri, May 27 2005, 8:56AM
Company Name: Old Style Woodwork
Country: CANADA
Location: Southern Alberta

Re: Signs from DXF

Postby Gerry A Brown » Tue, Jun 19 2012, 7:33AM

Hi Scott,

I was trying to avoid spending that much but we do have a rotary playback on our router so it may be the best way to go.

Thanks,
Gerry

Terry Davis
Senior Member
Posts: 168
Joined: Thu, Oct 11 2007, 7:33PM
Company Name: Penn Laminates
Country: UNITED STATES
Location: Trafford PA
Contact:

Re: Signs from DXF

Postby Terry Davis » Tue, Jun 26 2012, 4:35PM

We use Aspire by Vectric which works very well with the router, you can import dxf's directly and apply a tool path and cut or import a photo and vectoriize, apply toolpaths and cut that way. Also does rotary and 3D work.

User avatar
Gerry A Brown
Senior Member
Posts: 135
Joined: Fri, May 27 2005, 8:56AM
Company Name: Old Style Woodwork
Country: CANADA
Location: Southern Alberta

Re: Signs from DXF

Postby Gerry A Brown » Wed, Jun 27 2012, 3:11PM

Hi Terry,

We went with V Carve pro. It looks like it will do everything we need to do & if we decide we need Aspire we get a very good upgrade discount. We also bought Cut3D for those odd jobs :roll:

Thanks everyone for your advice,

Gerry
