Aggregate Tool

Postby Nemanja Vujkovic » Mon, Mar 12 2007, 1:19PM

Are aggregate tools competible with Profile Modeler?
Roger and i are trying to run radius molding thats 3-4 inches thick and the profile is on inside.
Can this be done???

Ryan Hochgesang

Postby Ryan Hochgesang » Mon, Mar 12 2007, 4:33PM

By design, horizontal tooling is not supported by Control Nesting. Horizontal tooling typically would not have enough clearance between parts to access side cuts. Also, typically parts using horizontal tooling require some sort of fixturing that raises part off of table to allow tool to reach for cutting.

User avatar
Roger Erismann
Senior Member
Posts: 169
Joined: Sun, Dec 04 2005, 11:42PM
Location: Sacramento, CA and Rolla, Mo

Postby Roger Erismann » Mon, Mar 12 2007, 10:49PM

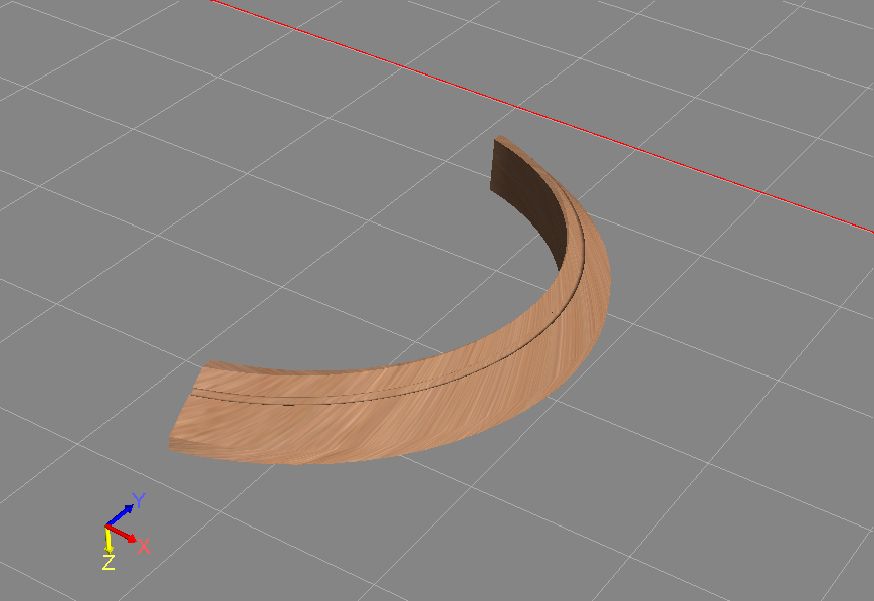

Ryan...someone from thermwood is coming ourway this week...if it's you please come by the shop floor and say hi to Nano and Roger..anyways here is what we want(well we want radius crown but his is the start)
Wood Butcher/Case Maker

Ryan Hochgesang

Postby Ryan Hochgesang » Tue, Mar 13 2007, 12:15PM

I'm not sure who is going to be stopping by your facility this week. I do know that I'm in house this week though. However, if I were the one comming out your way, I would certainly stop in to say hello :)

The pict. you've attached should be able to be done using Profile Modeler. The groove around ring would probably look nice with a regular endmill taking a single centerline type tool path.
