Help converting DXF to STL

Postby Nick Sollecito » Thu, Jan 06 2011, 11:18AM

Hi
Could someone help with converting a DXF to STL?
I downloaded Accutran and loaded in the following 3d dxf file for a viking refrigerator but when it loads in Accutran it only shows the nameplate. When I look at the file with a solidworks dxf viewer it shows all of the views for the refrigerator. Not sure if it's something I'm not doing right or if the file is bad. I download it from Viking's Site.
Thanks!
Nick
m2510710_VCWB300.zip
(542.63 KiB) Downloaded 158 times
Nick Sollecito
Home Genius
http://www.MyHomeGenius.com
ynd@comcast.net

User avatar
George Davidson
eCabinets Beta Tester
Posts: 1585
Joined: Tue, May 17 2005, 1:16PM
Location: Norwood Pa.

Re: Help converting DXF to STL

Postby George Davidson » Thu, Jan 06 2011, 8:49PM

VCWB300R
In STL
Attachments
VCWB300R.zip
(7.41 MiB) Downloaded 153 times

User avatar
Nick Sollecito
Junior Member
Posts: 51
Joined: Sun, Mar 05 2006, 11:03AM
Location: Swansea, MA
Contact:

Re: Help converting DXF to STL

Postby Nick Sollecito » Fri, Jan 07 2011, 7:37AM

Hi George,
Thank you for doing the conversion. Much appreciated. I would really like to know how you were able to find the parts of the file to convert. When I opened the file in Accutran I could only see the Viking nameplate.
Thanks
Nick

User avatar
George Davidson
eCabinets Beta Tester
Posts: 1585
Joined: Tue, May 17 2005, 1:16PM
Location: Norwood Pa.

Re: Help converting DXF to STL

Postby George Davidson » Fri, Jan 07 2011, 9:43AM

Hi Nick
Here is how it opens up in just 2 of my Cad programs
1-TurboCAD Professional
2-Punch! ViaCAD
I would say you need to change something in your Accutran then it will open ok
Attachments

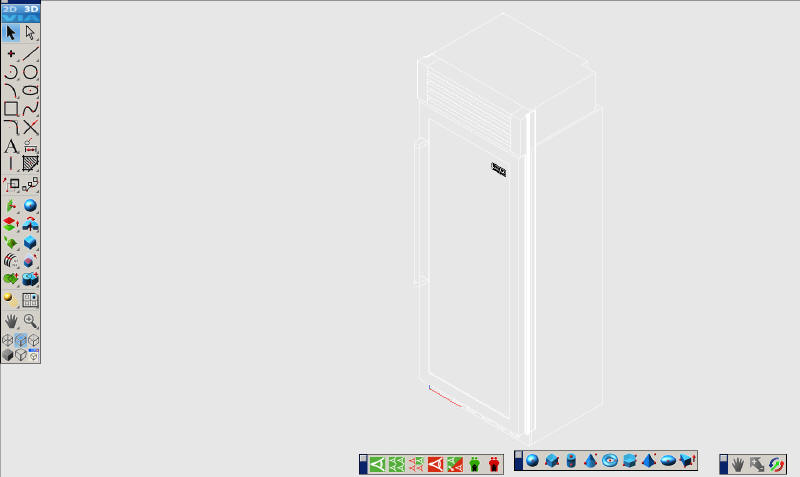

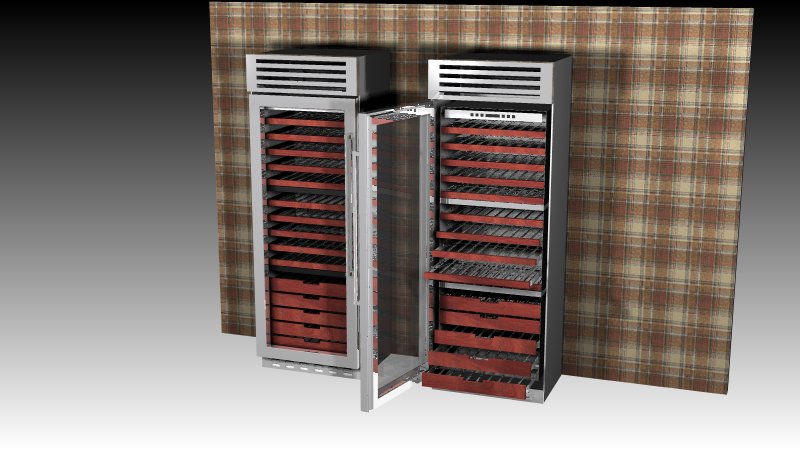

Punch! ViaCAD .jpg
TurboCAD Professional .jpg

User avatar
Nick Sollecito
Junior Member
Posts: 51
Joined: Sun, Mar 05 2006, 11:03AM
Location: Swansea, MA
Contact:

Re: Help converting DXF to STL

Postby Nick Sollecito » Fri, Jan 07 2011, 10:18AM

I'll play around with it. I just downloaded Accutran and I am not familiar with it.
On the files that you sent me...
I unzipped the files and put all the stl files in the Appliance/Refrigerator folder. I also put the jpg in the same folder. I cannot see the wine refrigerator in the refrigerator list. Am I doing this correctly?
Thanks!
Nick
