Using the f/x editor

Postby Carmen Addamo » Sun, May 14 2017, 7:02PM

Can someone enlighten me as to its purpose. I have been trying to figure out a way to lock the width of a fixed shelf to 4" for example no matter the cabinet depth but haven't figured out a way

Scott Marshburn
Guru Member
Posts: 744
Joined: Sat, Mar 05 2011, 7:29AM
Company Name: Heritage WoodWorks
Country: UNITED STATES
Location: Jacksonville Nc
Contact:

Re: Using the f/x editor

Postby Scott Marshburn » Mon, May 15 2017, 7:49AM

Hi Carmen. Here is a video where I demonstrate this feature for half shelves.
https://www.youtube.com/watch?v=D07KS8e ... U&index=15
Hope this helps
Yes! Oh Yes! I Think We Are Going to make It!
https://www.youtube.com/user/ecabinetstips

User avatar
Brad McIntosh
Guru Member
Posts: 484
Joined: Wed, May 18 2005, 6:59PM
Company Name: CNC Automation
Location: St. Zotique, Québec, Canada
Contact:

Re: Using the f/x editor

Postby Brad McIntosh » Mon, May 15 2017, 8:09AM

Try the following in the "Shelf/Partion Editor":

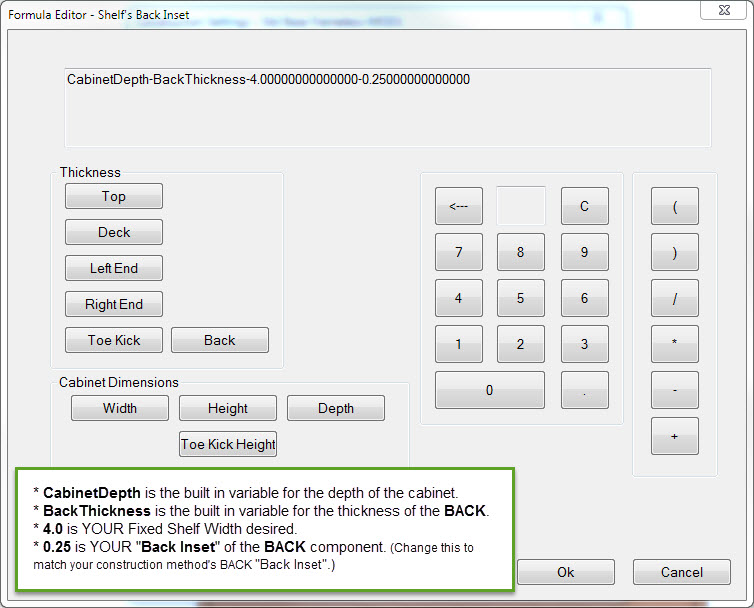

Formula Editor.jpg


CabinetDepth-BackThickness-4.00000000000000-0.25000000000000

Where:
  • CabinetDepth is the built in variable for the depth of the cabinet.
  • BackThickness is the built in variable for the thickness of the BACK.
  • 4.0 is YOUR Fixed Shelf Width desired.
  • 0.25 is YOUR "Back Inset" of the BACK component. (Change this to match your construction method's BACK "Back Inset".)

Carmen Addamo
Junior Member
Posts: 68
Joined: Sun, Oct 19 2014, 8:33PM
Company Name: Frank Raffaele and Sons Custom
Country: UNITED STATES

Re: Using the f/x editor

Postby Carmen Addamo » Mon, May 15 2017, 7:02PM

Scott and Brad Thank You. I will play with this tomorrow. I'll post back how it went.

User avatar
Brad McIntosh
Guru Member
Posts: 484
Joined: Wed, May 18 2005, 6:59PM
Company Name: CNC Automation
Location: St. Zotique, Québec, Canada
Contact:

Re: Using the f/x editor

Postby Brad McIntosh » Mon, May 15 2017, 7:22PM

carmen,

I just want to point out that I was assuming a "drawer stretcher" sort of application. The same sort of thing could be done when applied to the "Front Offset".

Carmen Addamo
Junior Member
Posts: 68
Joined: Sun, Oct 19 2014, 8:33PM
Company Name: Frank Raffaele and Sons Custom
Country: UNITED STATES

Re: Using the f/x editor

Postby Carmen Addamo » Tue, May 16 2017, 7:07AM

Brad you are correct in your drawer stretcher assumption :D
