angled front cabinet

Postby Carl Hoover » Sat, Feb 23 2013, 2:34PM

Hi Folks

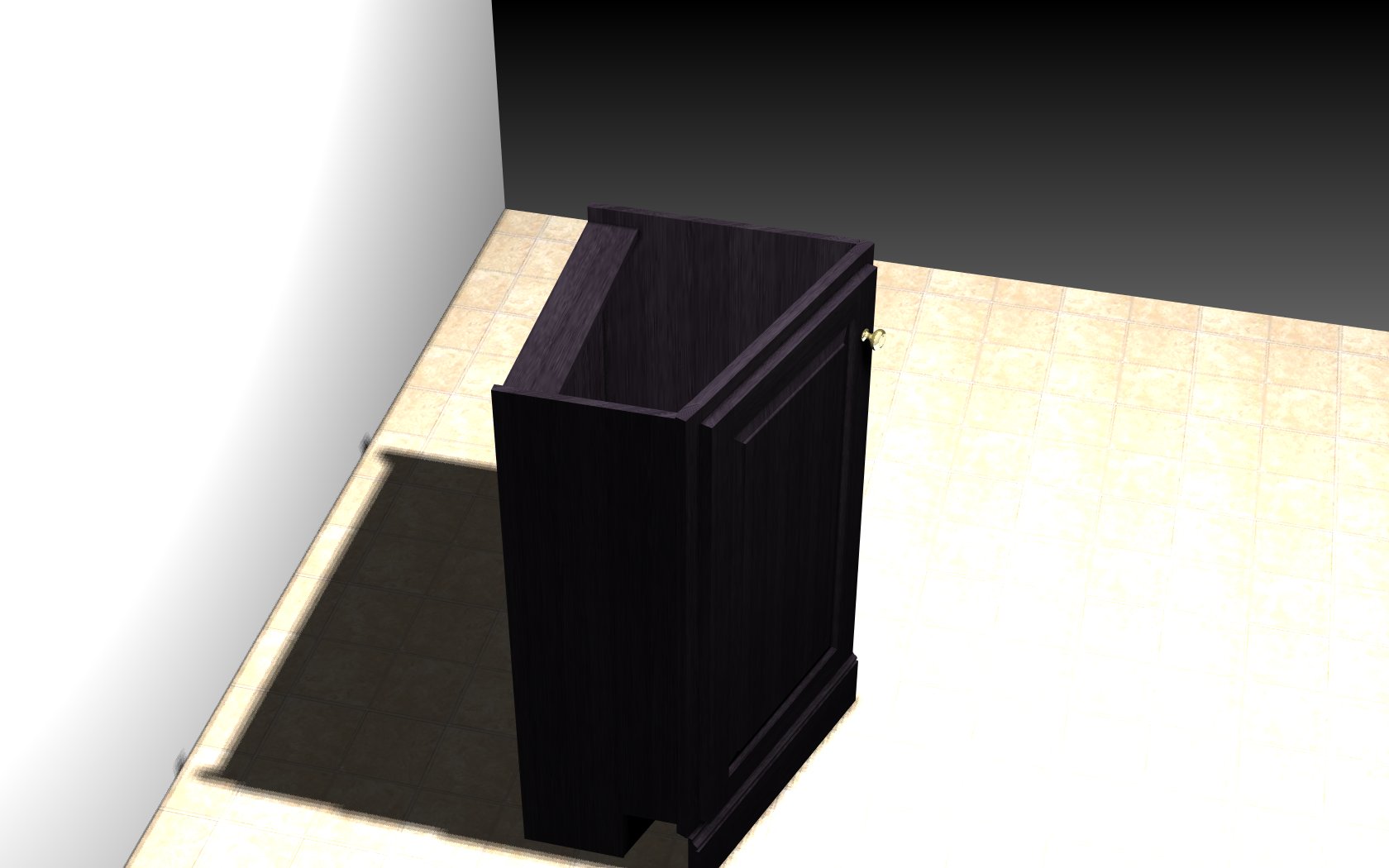

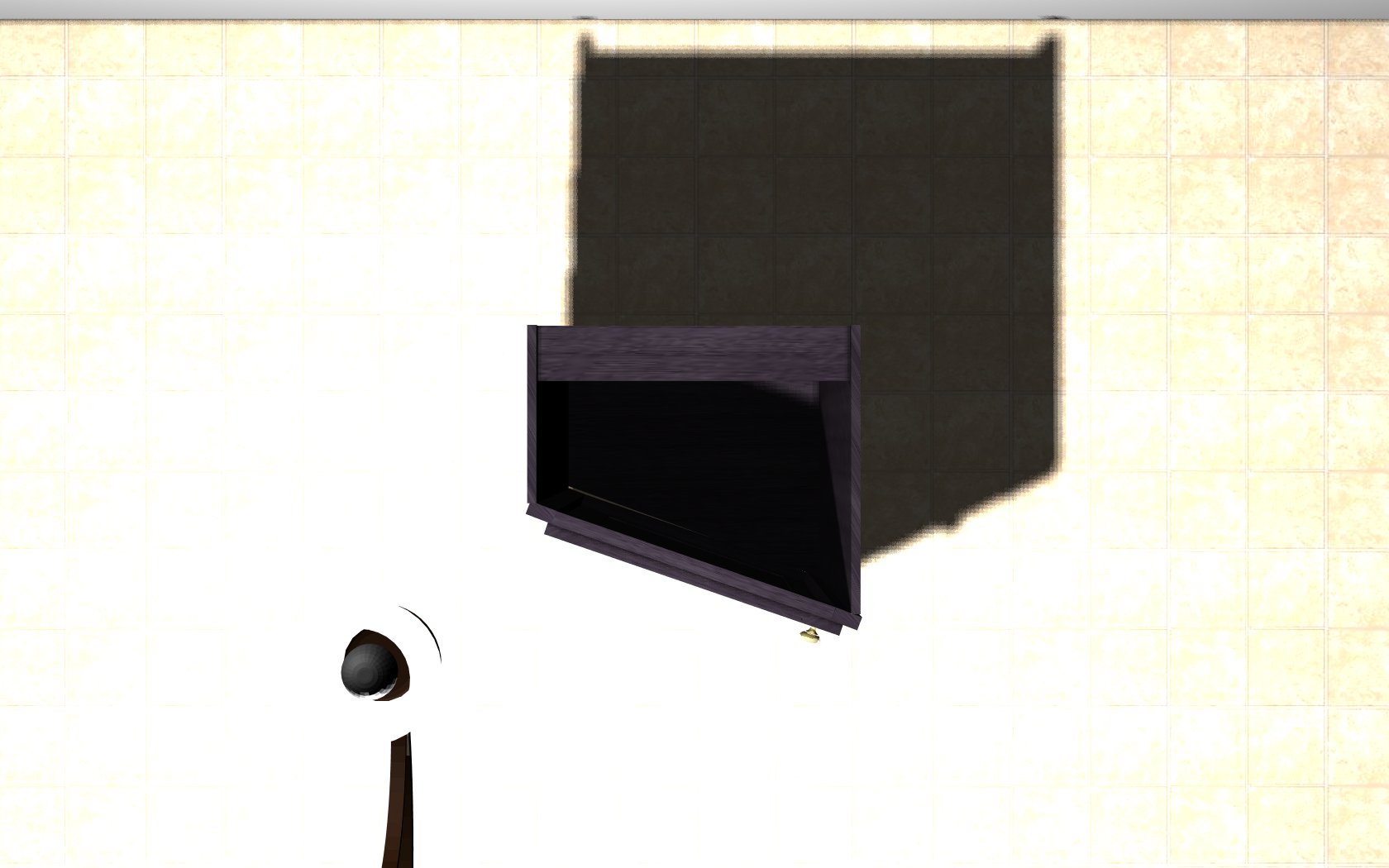

Is there anyway to make a cabinet like this by entering the dimensions as opposed to adding and angling parts on an assembly.

User avatar
Scott Marshburn
Guru Member
Posts: 790
Joined: Sat, Mar 05 2011, 7:29AM
Company Name: Heritage WoodWorks
Location: Jacksonville Nc

Re: angled front cabinet

Postby Scott Marshburn » Sat, Feb 23 2013, 3:37PM

Carl you would probably get more responses if you posted this in the eCabinets Software Forum. As For that type of cabinet The only way that I am aware of is to cut the angles on the parts in part editor and add a face frame from another cabinet and save it as a assembly
