CN Sheet printout formatting

Postby Jeremy Schiffer » Wed, May 21 2014, 10:37AM

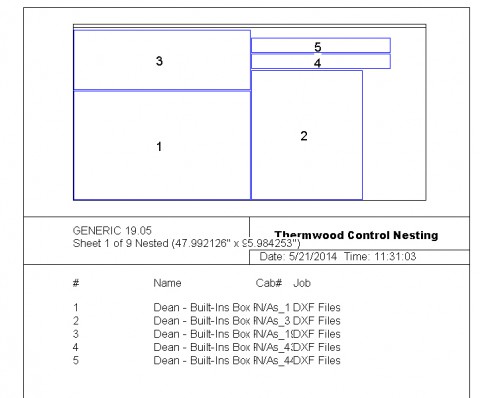

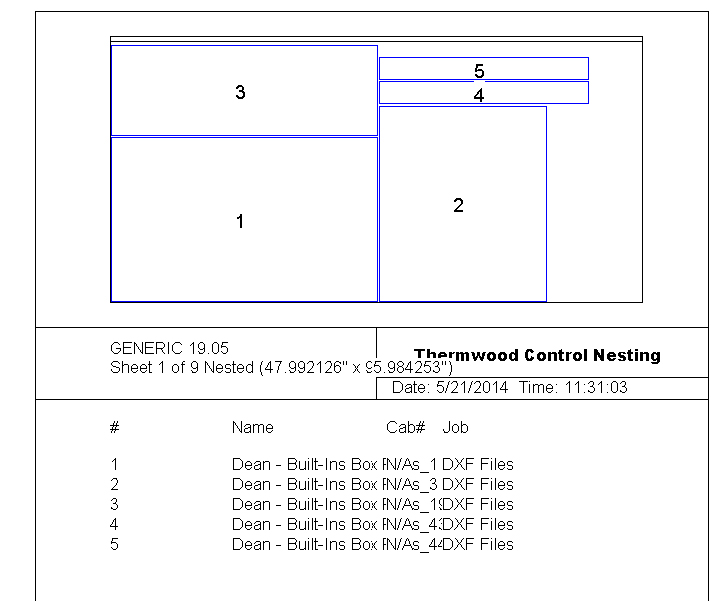

Pretty please could we have larger margins on the nest sheets printed by CN? The names are almost always crammed and overlapped, while there are huge margins that, if used, would alleviate 99% of the problem. With sugar on top? :mrgreen:
Attachments
http://www.corlanecabinetry.com

Intel Core i7-5820 3.3GHz, 16GB RAM, NVidia Quadro K2200 4GB, Windows 8.1 Pro 64 bit

Blair Courtney
New Member
Posts: 2
Joined: Fri, Oct 03 2014, 8:40AM
Company Name: Misani Custom Design
Country: CANADA

Re: CN Sheet printout formatting

Postby Blair Courtney » Fri, Oct 03 2014, 10:33AM

Pretty please could we have larger margins on the nest sheets printed by CN? The names are almost always crammed and overlapped, while there are huge margins that, if used, would alleviate 99% of the problem.


Increase your collar and clearance between parts in the general settings of the nesting program .

User avatar
Brad McIntosh
Guru Member
Posts: 484
Joined: Wed, May 18 2005, 6:59PM
Company Name: CNC Automation
Location: St. Zotique, Québec, Canada
Contact:

Re: CN Sheet printout formatting

Postby Brad McIntosh » Mon, Oct 06 2014, 9:55AM

Blair,

I believe Jeremy is talking about the PRINT OUT margins and NOT those associated with the actual nesting. As you can see in Jeremy's report example, long part names and over-run other columns.

Jeremy - in addition to your "margin" adjustments, perhaps some of the columns need to be redefined (some reduced in width, others increased). Also, a point size or two reduction in the font used as well as some of these fields actually "wrapping" in extreme cases would help.

User avatar
Jeremy Schiffer
eCabinets Beta Tester
Posts: 956
Joined: Tue, May 10 2005, 9:36PM
Location: Carnesville, GA
Contact:

Re: CN Sheet printout formatting

Postby Jeremy Schiffer » Thu, Oct 23 2014, 3:10PM

You're right, Brad, the text overlapping is what I'm talking about. I have not seen any way to change the width of the columns or the size of the font on these printouts. Have I just overlooked something? Please say "Yes, dummy, you have." :lol:
http://www.corlanecabinetry.com

Intel Core i7-5820 3.3GHz, 16GB RAM, NVidia Quadro K2200 4GB, Windows 8.1 Pro 64 bit
