Convex Face Frame Cabinet

Postby Kerry Fullington » Mon, Dec 15 2014, 2:24PM

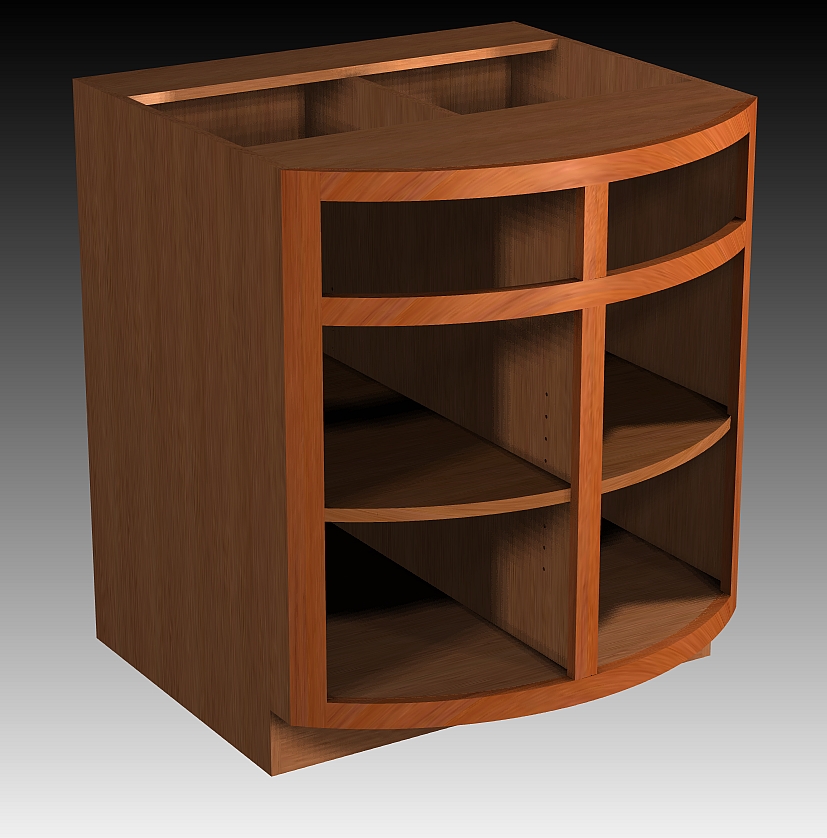

I woke up last night with the solution to drawing curved face frames in eCabinets. The funny thing was, I haven't been trying to do this. It just popped into my head. I will try a concave next.



Convex 2.jpg

Scott Marshburn
Guru Member
Posts: 736
Joined: Sat, Mar 05 2011, 7:29AM
Company Name: Heritage WoodWorks
Country: UNITED STATES
Location: Jacksonville Nc
Contact:

Re: Convex Face Frame Cabinet

Postby Scott Marshburn » Mon, Dec 15 2014, 3:09PM

Nice Kerry. Did you use display boards, cubes or panel? We did something similar awhile back. I was able to contact Dan Epps and he sent me his video that he made on how to make the doors also.
Yes! Oh Yes! I Think We Are Going to make It!
https://www.youtube.com/user/ecabinetstips

User avatar
Kerry Fullington
Wizard Member
Posts: 4566
Joined: Mon, May 09 2005, 7:33PM
Company Name: ProSource of Amarillo
Country: UNITED STATES
Location: Amarillo, TX

Re: Convex Face Frame Cabinet

Postby Kerry Fullington » Mon, Dec 15 2014, 4:37PM

Scott,

That is an actual face frame.

Scott Marshburn
Guru Member
Posts: 736
Joined: Sat, Mar 05 2011, 7:29AM
Company Name: Heritage WoodWorks
Country: UNITED STATES
Location: Jacksonville Nc
Contact:

Re: Convex Face Frame Cabinet

Postby Scott Marshburn » Mon, Dec 15 2014, 5:31PM

Cool! Could you elaborate on how you accomplished this? Unless I am missing something I did not think that you could use different thickness materials for face frames.
Yes! Oh Yes! I Think We Are Going to make It!
https://www.youtube.com/user/ecabinetstips

User avatar
Kerry Fullington
Wizard Member
Posts: 4566
Joined: Mon, May 09 2005, 7:33PM
Company Name: ProSource of Amarillo
Country: UNITED STATES
Location: Amarillo, TX

Re: Convex Face Frame Cabinet

Postby Kerry Fullington » Tue, Dec 16 2014, 8:21AM

Scott,

That is exactly it. Create a face frame material with a thickness equal to the rise of your frame arc then create a tool to shape the parts.

Convex 3.jpg

Will Williamson
Guru Member
Posts: 396
Joined: Thu, Dec 08 2005, 6:10PM
Company Name: Williamson Finewoodwork
Country: UNITED STATES
Location: Capac MI
Contact:

Re: Convex Face Frame Cabinet

Postby Will Williamson » Tue, Dec 16 2014, 7:01PM

That,s why you are the wizard. So, do you think the whole thing will cut out?
Will

http://www.willmade.com

KEG/Intel Core i 7 CPU K875 @ 2.93 GHZ/12G Ram
Dual boot XP PRO/Windows 7 Nvidia Quatro 600 1Gig Ram

User avatar
Kerry Fullington
Wizard Member
Posts: 4566
Joined: Mon, May 09 2005, 7:33PM
Company Name: ProSource of Amarillo
Country: UNITED STATES
Location: Amarillo, TX

Re: Convex Face Frame Cabinet

Postby Kerry Fullington » Wed, Dec 17 2014, 9:01AM

Will,

The box will certainly nest and cut fine. The face frame parts would be just straight cuts in 6" material. I would need to create the curved mid rails in the part editor if I wanted to nest them.

User avatar
George Davidson
eCabinets Beta Tester
Posts: 1585
Joined: Tue, May 17 2005, 1:16PM
Location: Norwood Pa.

Re: Convex Face Frame Cabinet

Postby George Davidson » Wed, Dec 17 2014, 9:36PM

Hi Kerry that looks great

User avatar
Kerry Fullington
Wizard Member
Posts: 4566
Joined: Mon, May 09 2005, 7:33PM
Company Name: ProSource of Amarillo
Country: UNITED STATES
Location: Amarillo, TX

Re: Convex Face Frame Cabinet

Postby Kerry Fullington » Thu, Dec 18 2014, 8:29AM

Thanks George. Really good to hear from you.

Scott,

I would like to see Dan's video as I can't remember the technique that he used. Here are some doors I did a while back but they are way too involved to use every day.

Curve Door 1.jpg


Curve Door 2.jpg
