Interior walls

Postby Carmen Addamo » Fri, Dec 11 2015, 6:10AM

Hello all. New to the software but do have some of the basics down. Trying to create a room and can build the perimeter walls but having trouble figuring out how to place my interior walls. For example I build a simple 18' x 24' rectangular room and want to build the two walls a specified distance that create the bathroom or a closet within the rectangular room. So far any interior walls I have been able to build have no dimension lines associated with them so I can't just select them and move them to a specified distance. Could use a little guidance.

tim lucas
Guru Member
Posts: 252
Joined: Thu, Nov 29 2007, 5:18PM
Company Name: Tim Lucas Custom Woodworks LLC
Country: UNITED STATES
Location: bell, florida
Contact:

Re: Interior walls

Postby tim lucas » Fri, Dec 11 2015, 8:13AM

If you set your starting point to 0,0 to start building your walls you can calculate where you need your interior walls

and if you turn on your snap and set it to 1 inch it will make it a little easier

hope this helps

Tim
HP Desktop
i5 2400 @ 3.10 GHz
8.0 G Ram
Win 7 Pro
Nvidia Quadro NVS 290

Blessed is the man who finds wisdom,
the man who gains understanding.

Carmen Addamo
Junior Member
Posts: 67
Joined: Sun, Oct 19 2014, 8:33PM
Company Name: Frank Raffaele and Sons Custom
Country: UNITED STATES

Re: Interior walls

Postby Carmen Addamo » Sat, Dec 12 2015, 7:41AM

Tim, Thank you. That helps. Do you know if there is any way to get dimension lines to these interior walls.

tim lucas
Guru Member
Posts: 252
Joined: Thu, Nov 29 2007, 5:18PM
Company Name: Tim Lucas Custom Woodworks LLC
Country: UNITED STATES
Location: bell, florida
Contact:

Re: Interior walls

Postby tim lucas » Sat, Dec 12 2015, 8:55AM

Carmen Addamo wrote:Tim, Thank you. That helps. Do you know if there is any way to get dimension lines to these interior walls.

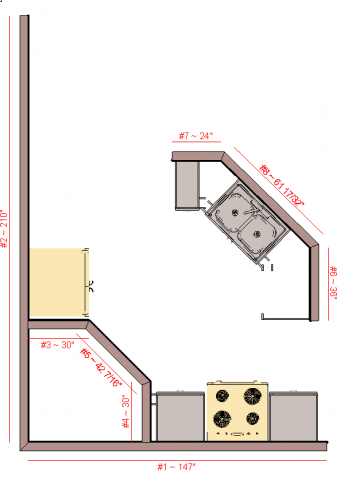

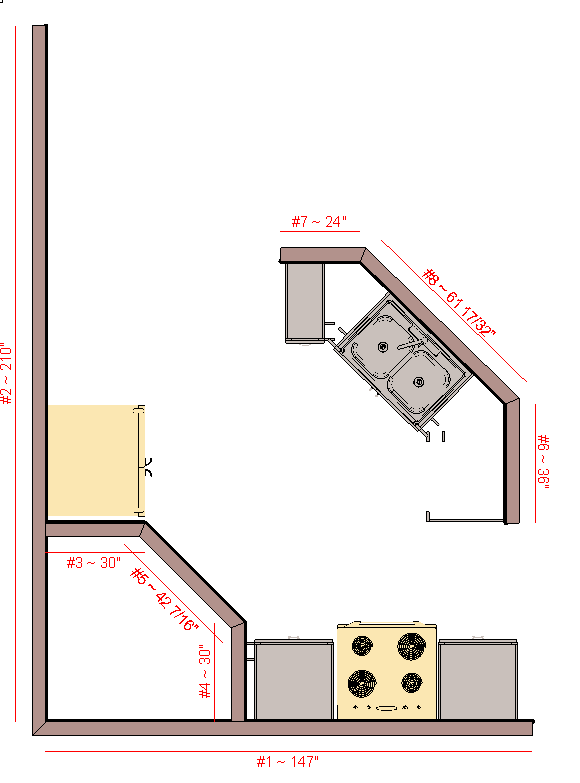

Not sure what you mean, should look like this

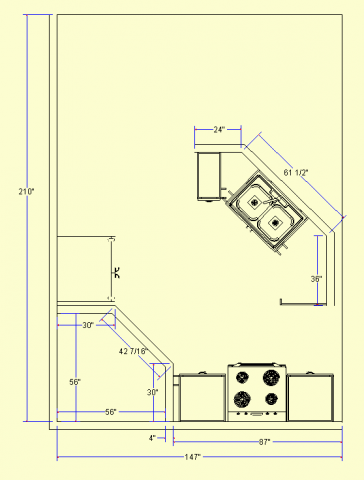

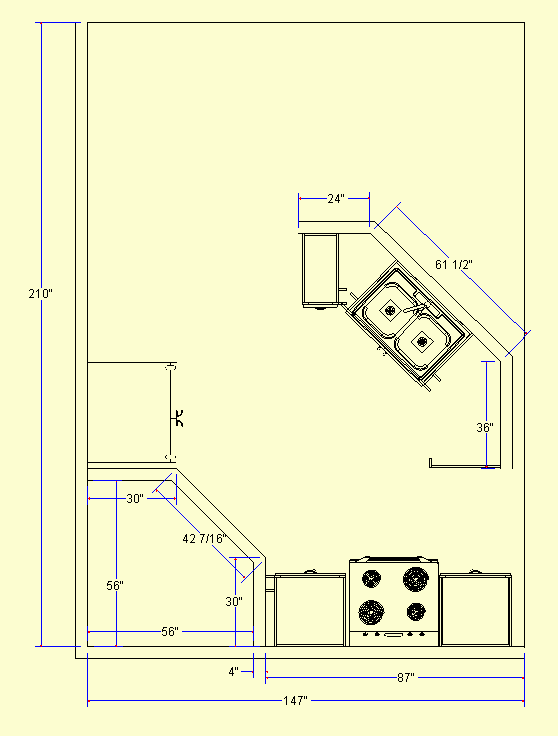

Or if you need more, you can take the layout into the "Line Drawing Editor" and add all the measurments

Tim
HP Desktop
i5 2400 @ 3.10 GHz
8.0 G Ram
Win 7 Pro
Nvidia Quadro NVS 290

Blessed is the man who finds wisdom,
the man who gains understanding.

Carmen Addamo
Junior Member
Posts: 67
Joined: Sun, Oct 19 2014, 8:33PM
Company Name: Frank Raffaele and Sons Custom
Country: UNITED STATES

Re: Interior walls

Postby Carmen Addamo » Sun, Dec 13 2015, 7:18PM

Thanks again, Tim. Line editor is what I am after. Haven't gotten that far yet.
