constraint deletes hole

Moderators: Jason Susnjara, Larry Epplin, Clint Buechlein, Scott G Vaal

Marcel Thibodeau
New Member
Posts: 12
Joined: Thu, Jan 02 2014, 5:46PM
Company Name: Northwest Kitchen Centre
Country: CANADA

constraint deletes hole

Postby Marcel Thibodeau » Sat, Oct 07 2017, 12:25PM

I'm trying to create a pilot hole in the front of my drawer box for attaching drawer fronts. I've got a 5mm hole that is placed 1/2 an inch from the left(and right) of the edge of the drawer box, I'm trying to develop a constraint that will drill the hole in the horizontal center so no matter the height of my drawer box the hole will be in the center. When i try to add formula h/2 it simply deletes my hole.

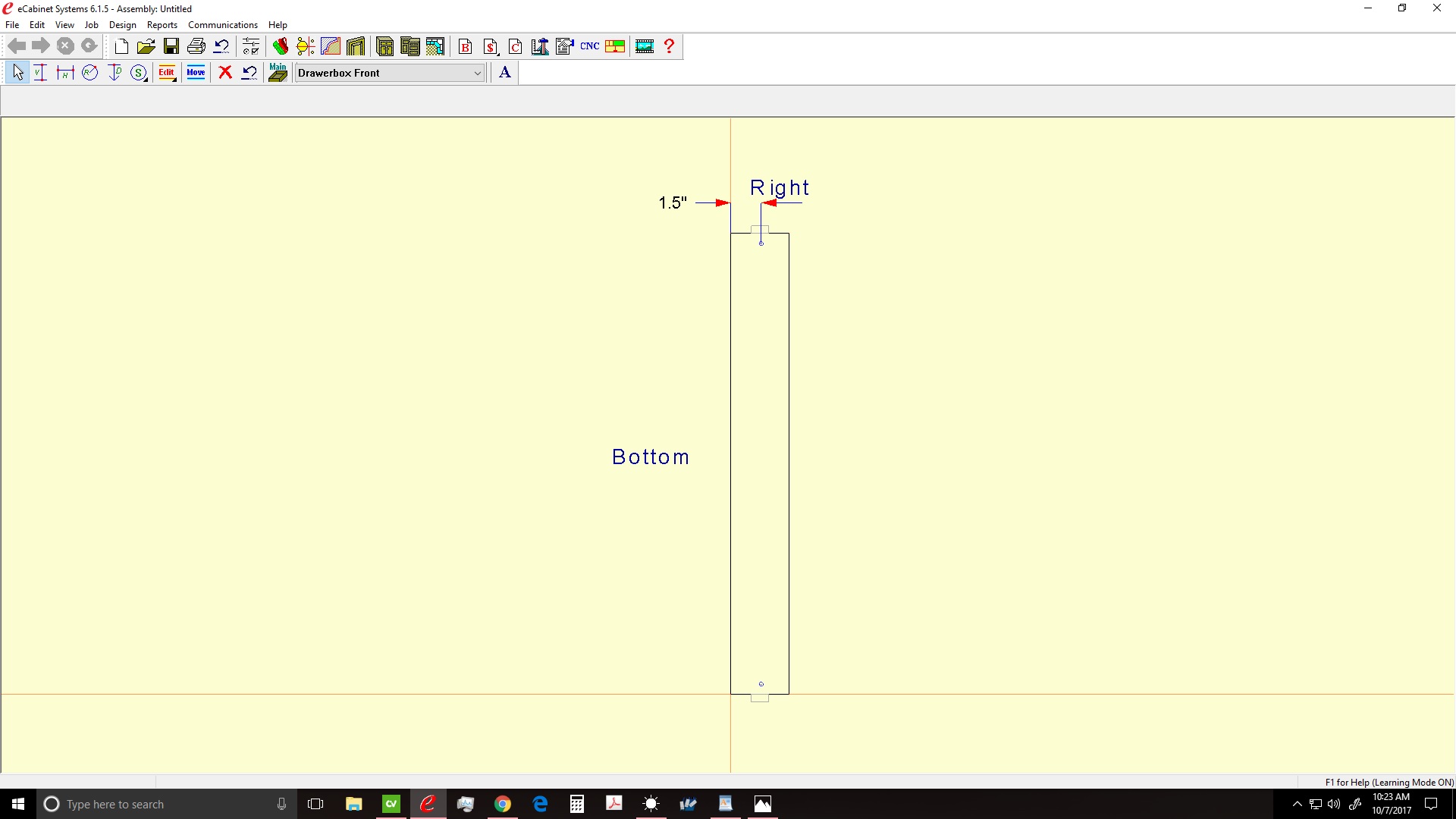

drawer front.jpg

tim lucas
Senior Member
Posts: 248
Joined: Thu, Nov 29 2007, 5:18PM
Company Name: Tim Lucas Custom Woodworks LLC
Country: UNITED STATES
Location: bell, florida
Contact:

Re: constraint deletes hole

Postby tim lucas » Sat, Oct 07 2017, 6:37PM

I just tried it on one of my cabinets and it worked fine. resized the drawer and it re-centered the hole.
can you post what you are working on?
Tim
HP Desktop
i5 2400 @ 3.10 GHz
8.0 G Ram
Win 7 Pro
Nvidia Quadro NVS 290

Blessed is the man who finds wisdom,
the man who gains understanding.

Ian Richardson
Junior Member
Posts: 37
Joined: Fri, Feb 15 2013, 5:21PM
Company Name: Millworx
Country: CANADA

Re: constraint deletes hole

Postby Ian Richardson » Tue, Oct 10 2017, 6:45AM

Try using the formula "w/2". The drawer face is rotated 90' in the pic

Forrest Chapman
eCabinets Beta Tester
Posts: 1082
Joined: Mon, May 30 2005, 2:26PM
Location: Anderson SC.
Contact:

Re: constraint deletes hole

Postby Forrest Chapman » Tue, Oct 10 2017, 7:38AM

Marcel, my drawers are done this way too. Its possible you may have a graphics issue. If you rebuild the drawer after making the constraints does the hole show up?

Ian is correct too that it should be w/2.

Forrest

Marcel Thibodeau
New Member
Posts: 12
Joined: Thu, Jan 02 2014, 5:46PM
Company Name: Northwest Kitchen Centre
Country: CANADA

Re: constraint deletes hole

Postby Marcel Thibodeau » Wed, Oct 11 2017, 10:55AM

I will try using w/2, never considered that, brain wired wrong
