DXF Lettering for eCabinets
Moderators: Jason Susnjara, Larry Epplin, Clint Buechlein, Scott G Vaal
DXF Lettering for eCabinets
:idea:
I have had a lot of eCabinet members ask me about being able to do lettering within eCabinets (especially those people with Thermwood CNC Routers).
I figured that if we had a selection of DXF lettering sets available in different fonts, then one could simply import these letters into eCabinets and either create letters from their outlines or cut away the shape from the original part.
This could prove to be extremely useful in shopfitting and a variety of other situations.
Are their any members out their who might have the resources, time, patience and good eCabinet community spirit to create various lettering sets in DXF file format that all of the members could share?
I have had a lot of eCabinet members ask me about being able to do lettering within eCabinets (especially those people with Thermwood CNC Routers).
I figured that if we had a selection of DXF lettering sets available in different fonts, then one could simply import these letters into eCabinets and either create letters from their outlines or cut away the shape from the original part.
This could prove to be extremely useful in shopfitting and a variety of other situations.
Are their any members out their who might have the resources, time, patience and good eCabinet community spirit to create various lettering sets in DXF file format that all of the members could share?
-
- eCabinets Beta Tester
- Posts: 1738
- Joined: Tue, May 17 2005, 8:33PM
- Company Name: Timeless Cabinetry and Mantles
- Location: South East
- Contact:
Here is a set of just the letters. I can seperate the letters, but this will take some time. If there are any special request for a specific letter I will try to accomidate. Someone can try them if you like.
- Attachments
-
- Courier New.zip
- (1.51 MiB) Downloaded 241 times
Windows 7 Pro/10 Pro 64 bit
AMD Phenom 9650 Quad-Core Processor 2.3Ghz 8GRAM 1TB
NVIDIA GeForce GT 220 1GB
AMD Phenom 9650 Quad-Core Processor 2.3Ghz 8GRAM 1TB
NVIDIA GeForce GT 220 1GB
-
- eCabinets Beta Tester
- Posts: 1738
- Joined: Tue, May 17 2005, 8:33PM
- Company Name: Timeless Cabinetry and Mantles
- Location: South East
- Contact:
Here are 2 that I have seperated with numbers.
- Attachments
-
- Arial.zip
- (90.67 KiB) Downloaded 227 times
-
- Ambrosia.zip
- (201.37 KiB) Downloaded 236 times
Windows 7 Pro/10 Pro 64 bit
AMD Phenom 9650 Quad-Core Processor 2.3Ghz 8GRAM 1TB
NVIDIA GeForce GT 220 1GB
AMD Phenom 9650 Quad-Core Processor 2.3Ghz 8GRAM 1TB
NVIDIA GeForce GT 220 1GB
-
- eCabinets Beta Tester
- Posts: 1738
- Joined: Tue, May 17 2005, 8:33PM
- Company Name: Timeless Cabinetry and Mantles
- Location: South East
- Contact:
DXF File
Mike, you are a LEGEND. Well done.
It sure would be good to get that courier_new separated.
If you happen to get on a roll, Times New Roman is always a popular choice along with some type of script font.
I tried a few letters and they are a bit funky, however with a bit of manipulation and re-saving them as a X_T file in eCabinets, they can be dragged out, placed on a part and either cut out or cut away.
I'll do a bit more work on it and keep you posted.
The basic sort of approach was to import the letter, copy it, \"create Edges\" save it again. Like I said a little funky but i will come up with a sure fire sequence and post it here.
In the meantime, keep up the good work with the DXFs.
I have attached the numeral 1 in Arial font, take a look, it works great
It sure would be good to get that courier_new separated.
If you happen to get on a roll, Times New Roman is always a popular choice along with some type of script font.
I tried a few letters and they are a bit funky, however with a bit of manipulation and re-saving them as a X_T file in eCabinets, they can be dragged out, placed on a part and either cut out or cut away.
I'll do a bit more work on it and keep you posted.
The basic sort of approach was to import the letter, copy it, \"create Edges\" save it again. Like I said a little funky but i will come up with a sure fire sequence and post it here.
In the meantime, keep up the good work with the DXFs.
I have attached the numeral 1 in Arial font, take a look, it works great
- Attachments
-
- 1.zip
- (16.37 KiB) Downloaded 214 times
-
- eCabinets Beta Tester
- Posts: 1738
- Joined: Tue, May 17 2005, 8:33PM
- Company Name: Timeless Cabinetry and Mantles
- Location: South East
- Contact:
Re: DXF File
Here is New times Romans.
I see it works as a parasolid import, But will it cut on the Thermwood?
I see it works as a parasolid import, But will it cut on the Thermwood?
- Attachments
-
- Times New Roman.zip
- (144.37 KiB) Downloaded 225 times
Windows 7 Pro/10 Pro 64 bit
AMD Phenom 9650 Quad-Core Processor 2.3Ghz 8GRAM 1TB
NVIDIA GeForce GT 220 1GB
AMD Phenom 9650 Quad-Core Processor 2.3Ghz 8GRAM 1TB
NVIDIA GeForce GT 220 1GB
-
- eCabinets Beta Tester
- Posts: 1738
- Joined: Tue, May 17 2005, 8:33PM
- Company Name: Timeless Cabinetry and Mantles
- Location: South East
- Contact:
Here is the Courier New seperated.
- Attachments
-
- Courier New.zip
- (165.9 KiB) Downloaded 211 times
Windows 7 Pro/10 Pro 64 bit
AMD Phenom 9650 Quad-Core Processor 2.3Ghz 8GRAM 1TB
NVIDIA GeForce GT 220 1GB
AMD Phenom 9650 Quad-Core Processor 2.3Ghz 8GRAM 1TB
NVIDIA GeForce GT 220 1GB
Number One
Hi Michael
Number 1 cut out and looks pretty good. Next time I`ll use a 3mm cutter, that will get a finer result. Thanks so much for your input. I`ll send you a picture when I`m happy with it.
Cheers
Doug
Number 1 cut out and looks pretty good. Next time I`ll use a 3mm cutter, that will get a finer result. Thanks so much for your input. I`ll send you a picture when I`m happy with it.
Cheers
Doug
-
- eCabinets Beta Tester
- Posts: 1738
- Joined: Tue, May 17 2005, 8:33PM
- Company Name: Timeless Cabinetry and Mantles
- Location: South East
- Contact:
Very welcome Doug.
It only takes me about 15 minutes per set, both capital and small letters. I labled the small letters with a double letter. I didn't know of any easier way.
I am happy to contribute.
It only takes me about 15 minutes per set, both capital and small letters. I labled the small letters with a double letter. I didn't know of any easier way.
I am happy to contribute.

Windows 7 Pro/10 Pro 64 bit
AMD Phenom 9650 Quad-Core Processor 2.3Ghz 8GRAM 1TB
NVIDIA GeForce GT 220 1GB
AMD Phenom 9650 Quad-Core Processor 2.3Ghz 8GRAM 1TB
NVIDIA GeForce GT 220 1GB
I love this ideal but I really hate polylines, especially if these are blown up to larger sizes. I would rather collect fonts that are made from only arcs and lines.
Maybe I am just being too picky here.
Maybe I am just being too picky here.

Last edited by Paul Huff on Mon, Oct 22 2007, 6:19PM, edited 1 time in total.
- Roger Erismann
- Senior Member
- Posts: 169
- Joined: Sun, Dec 04 2005, 11:42PM
- Location: Sacramento, CA and Rolla, Mo
-
- eCabinets Beta Tester
- Posts: 1738
- Joined: Tue, May 17 2005, 8:33PM
- Company Name: Timeless Cabinetry and Mantles
- Location: South East
- Contact:

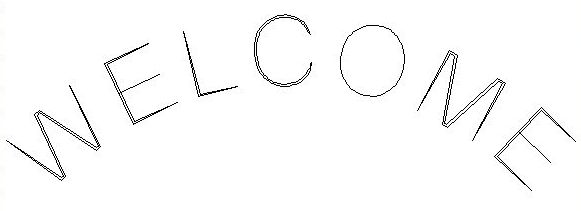

If you guys have a particular typeset you would like to see. I will be glad to share it with you. I just don't have the time to retrace with archs.
I can provide lettering, words including curved paths for the lettering.
I can provide lettering, words including curved paths for the lettering.
- Attachments
-
- welcome.jpg (11.87 KiB) Viewed 5809 times
Windows 7 Pro/10 Pro 64 bit
AMD Phenom 9650 Quad-Core Processor 2.3Ghz 8GRAM 1TB
NVIDIA GeForce GT 220 1GB
AMD Phenom 9650 Quad-Core Processor 2.3Ghz 8GRAM 1TB
NVIDIA GeForce GT 220 1GB
- Roger Erismann
- Senior Member
- Posts: 169
- Joined: Sun, Dec 04 2005, 11:42PM
- Location: Sacramento, CA and Rolla, Mo
