UPHOLSTERED FRAMES - HIGH-THROUGHPUT - MDF - PLYWOOD - NESTED BASED

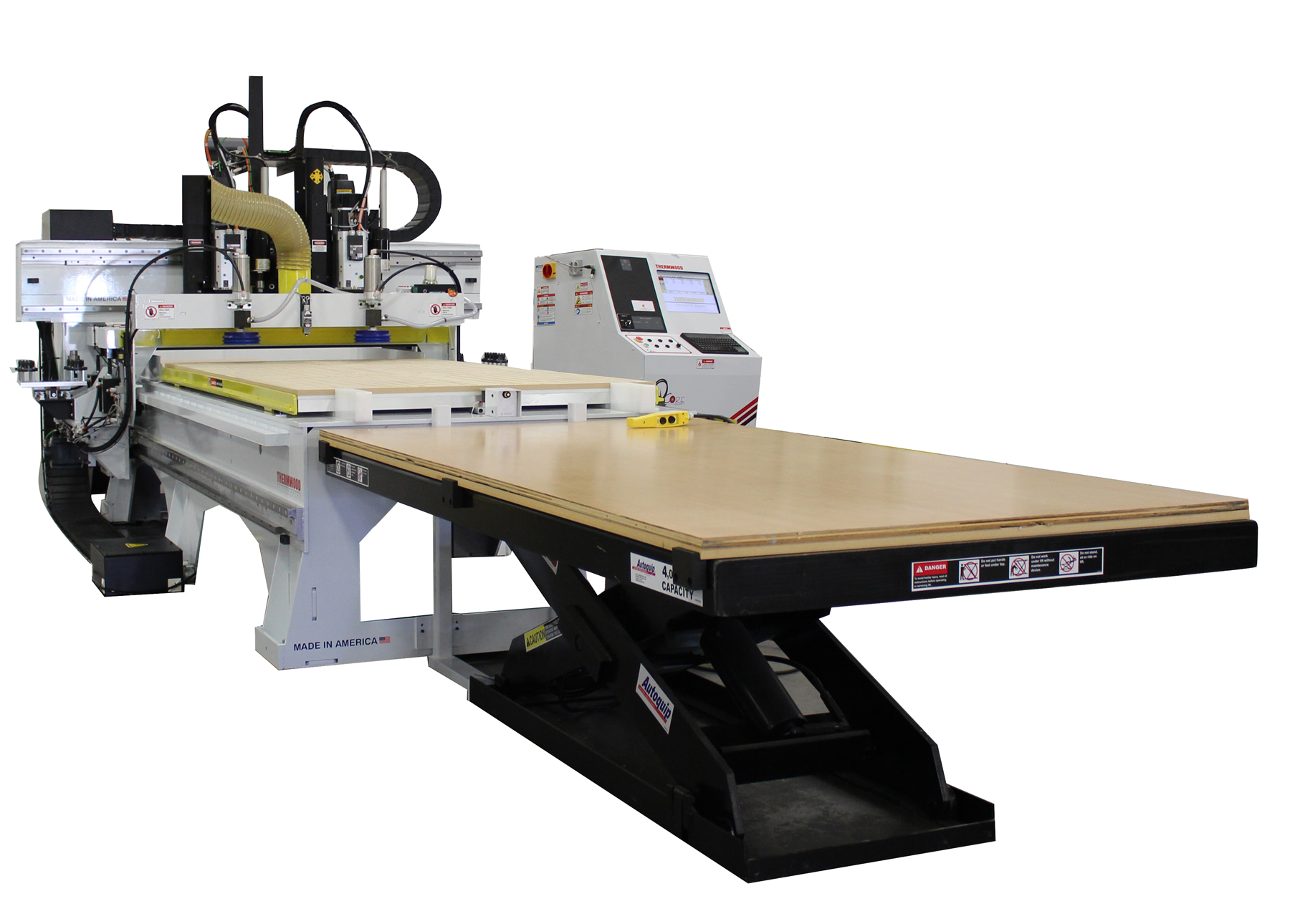

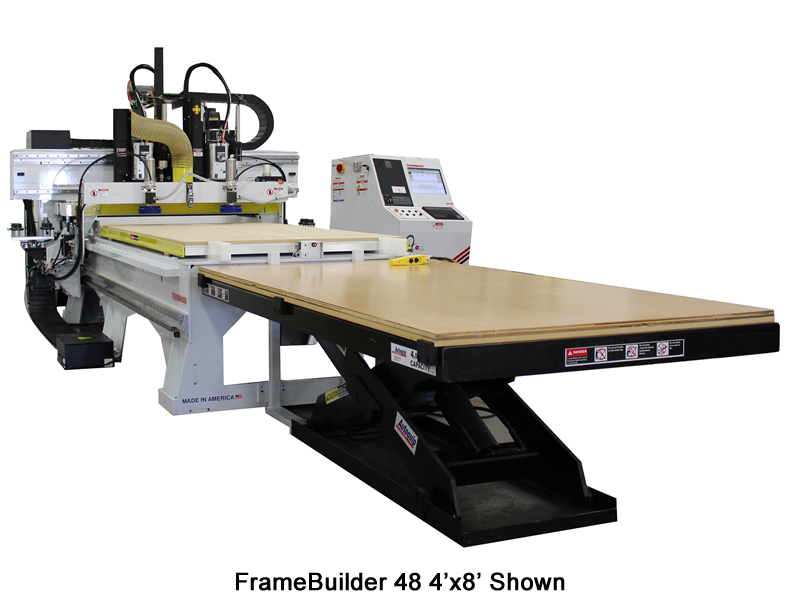

Complete three axis CNC routing system to machine nested upholstered frame parts from sheet stock.
Complete three axis CNC routing system to machine nested upholstered frame parts from sheet stock. The moving gantry, fixed table with roller hold down system is designed for routing and stack machining. This system is suited for machining 4'x8' sheets of plywood.
Available Table Sizes: 4'x8'
The 18HP (13 kw) spindle (3,000 to 20,000 programmable RPM). Accepts HSK F63 toolholders as well as Thermwood Aggregates and is equipped with an electric fan. Standard
Roller Hold Down System is a series of urethane covered steel rollers which are pressed to the spoilboard by air cylinders. the router travels between the rollers during the machining operation. This system works well with rough plywood or stacked sheets of material. Standard
An automatic load/unload system is available to automate the process of loading the sheet material onto the machine table and automatically off-loading the parts to a sorting table upon completion. Standard

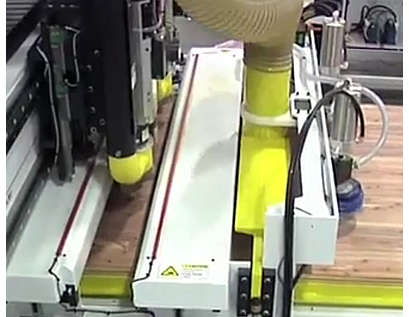

Built-in dust collection hood on the rake bar that cleans the table as it executes the automatic load/unload cycle. Standard
A user-friendly nesting package integrated into the Thermwood control to nest various parts into sheet stock, thus creating a better yield. Also accepts layered DXF files. Standard
The machine is calibrated in all axes using a three-dimensional volumetric laser interferometer. This type of calibration is the most sophisticated and most accurate available today resulting in machines that are extremely accurate. Others may use single axis calibration (not nearly as good) and others may not calibrate at all. Uncalibrated machines can generate dimensional errors that can become a real problem. Standard
The Thermwood SuperControl is a feature rich, high performance CNC control system. Thermwood, the only major CNC router manufacturer that designs and builds its own CNC control, is a leader in implementing advanced control technology. As a result, Thermwood has been granted more patents on CNC router technology than all other CNC router manufactures in the world, combined. Standard
We are by your side during your 5 Day training course at our modern, state of the art center (devoted specifically to educating our customers). This is, by far, the fastest and most efficient way to learn. Our machine operator/programmer courses are located adjacent to the machine training lab, where students complete the prescribed projects on a specific training machine utilized only for training purposes. Then, when it comes time for practical applications on a full sized machine, Thermwood's training lab is equipped with a CabinetShop 45 outfitted with all major options and features. Real production-type parts are cut. What a confidence builder! Standard

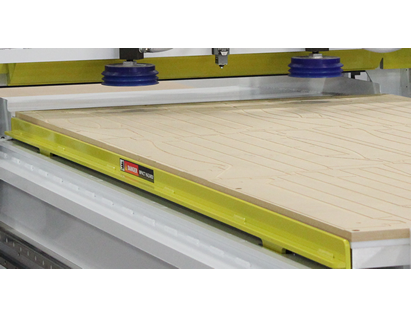

Individually programmable table side bars for providing ease of sheet positioning and unloading. In addition, a programmable, heavy-duty, locator pin is located at the rear of the table work zone for sheet positioning. Optional
A second head can be added to allow simultaneous machining of two parts. The second spindle includes a complete tool slide, second servo-controlled Z-Axis assembly and 24"(600mm) space bar. (Note: Bar Style tool changer cannot be used with this option). At the head Tool Automatic Tool Changer is also available for both heads. Optional
Provides positive pressure, air/oil lubrication to the linear trackway bearings and the ball screws This has two major benefits: First, it eliminates the lubrication points which must be servided each shift. Second, it provides positive pressure to the bearing, preventing contamination from entering the bearing. This allows the machine to function in difficult, dusty or hostile environments. Optional
Provides an automatic method of measuring tool length and entering tool length offset numbers into the control. This automatically compensates for the new tool length, eliminating the need to precisely locate the cutter bit. It provides a highly accurate method of adjusting tool length for pocketing or profile edges. Optional
The Electric Drill is a compact, high-powered drill which will provide the user with a useful tool for light and medium duty drilling. Optional

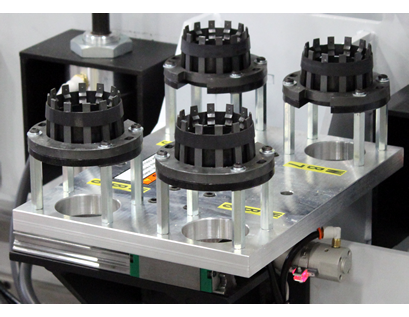

A 4-position, automatic tool changer is available for each spindle motor. The bar-style tool changer is equipped with automatic tool indexing and travels with the machine's gantry. Optional
The Lift Table is a scissor lift attached to the front of the machine. it holds the stock material just above the machine table and allows for the material to be loaded with the Automatic Load/Unload System.. Optional
