The Multi-Purpose Five Axis Series combines all the elements needed for trimming formed parts, patterns or molds using five-axis simultaneous motions.

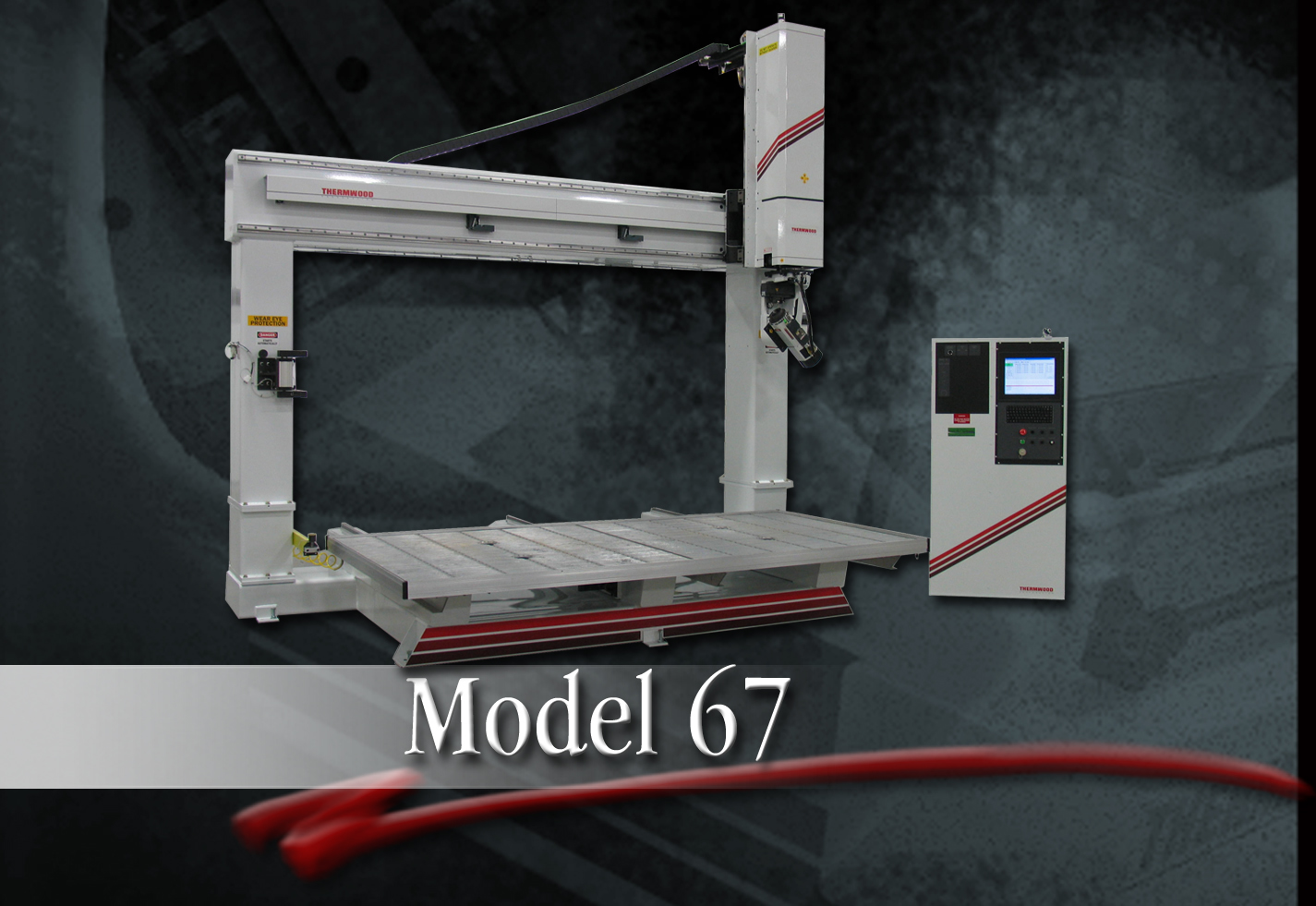

Multi-Purpose 67

MULTI-PURPOSE 67

CLICK FOR MORE INFORMATION
Multi-Purpose 67
  • Tech Specs
  • Dimensions
  • Multimedia
  • Brochure
Table Size(s)
Single Table: 5×5, 5×10, 10×5

Dual Table: 5×5, 5×10
(More table sizes available)

Multi-Purpose 67

Multi-Purpose 67 Dimensions

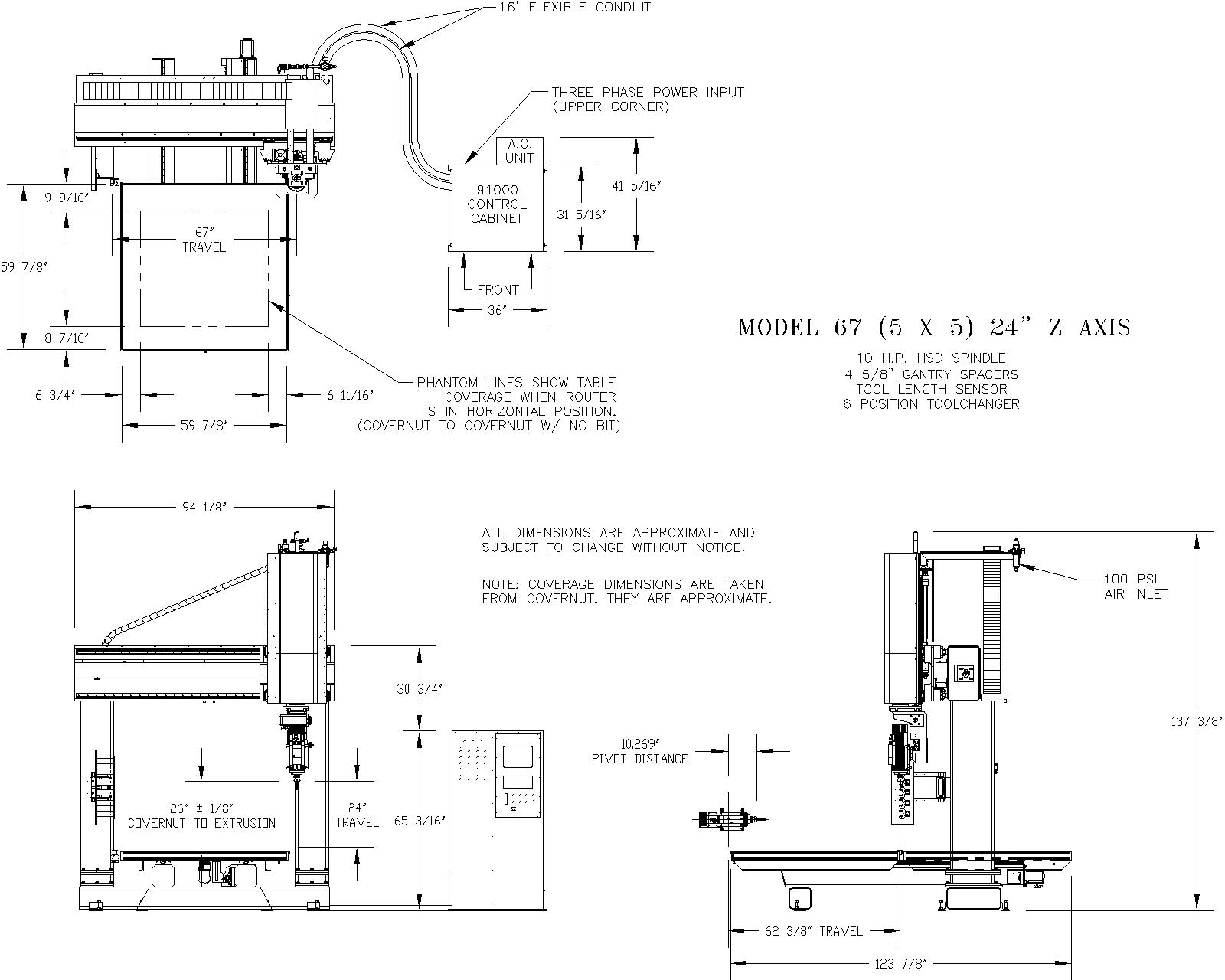

Multi-Purpose 67 Dimensions
M67 5×5

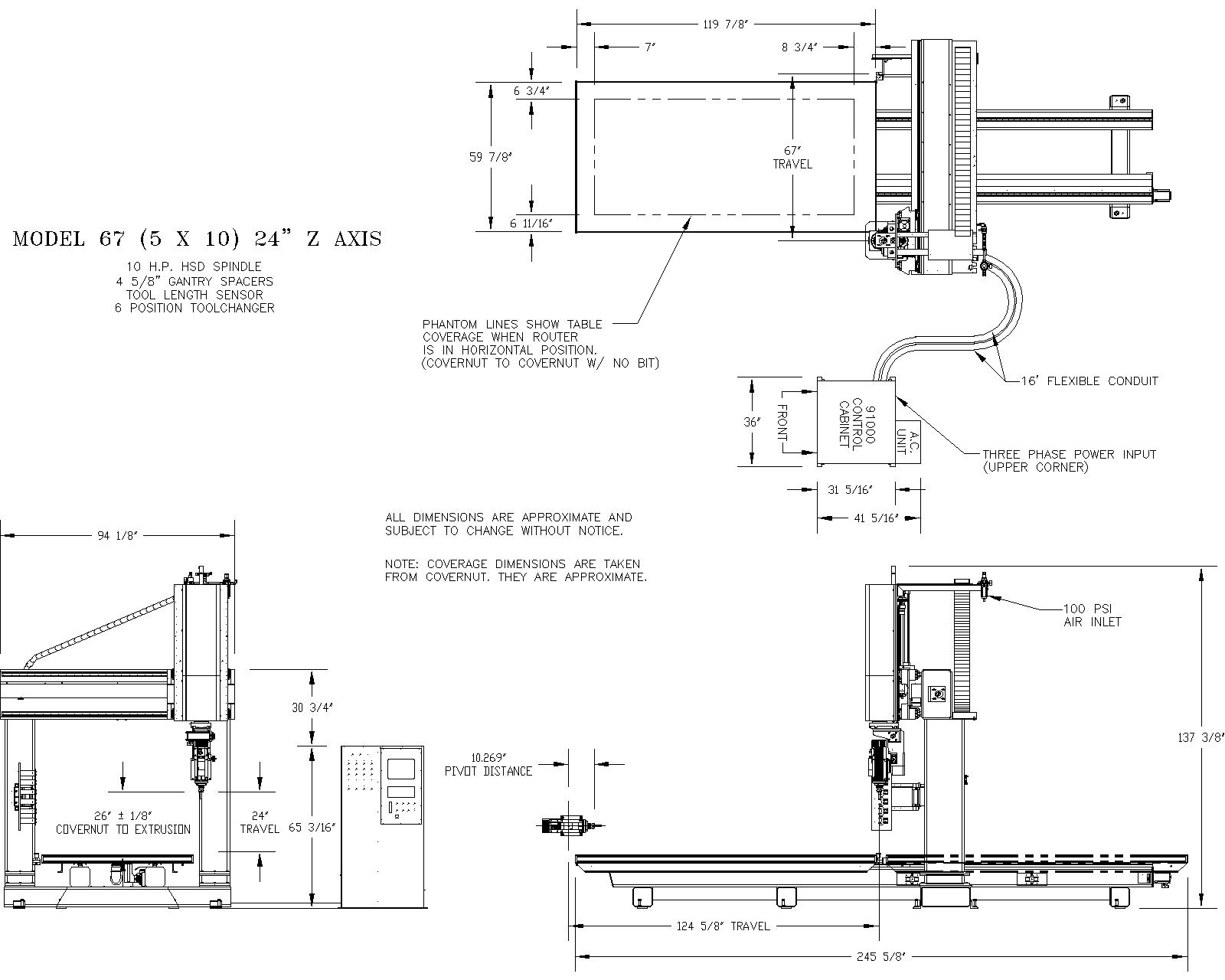

Multi-Purpose 67 Dimensions
M67 5×10
Multi-Purpose 67 Dimensions

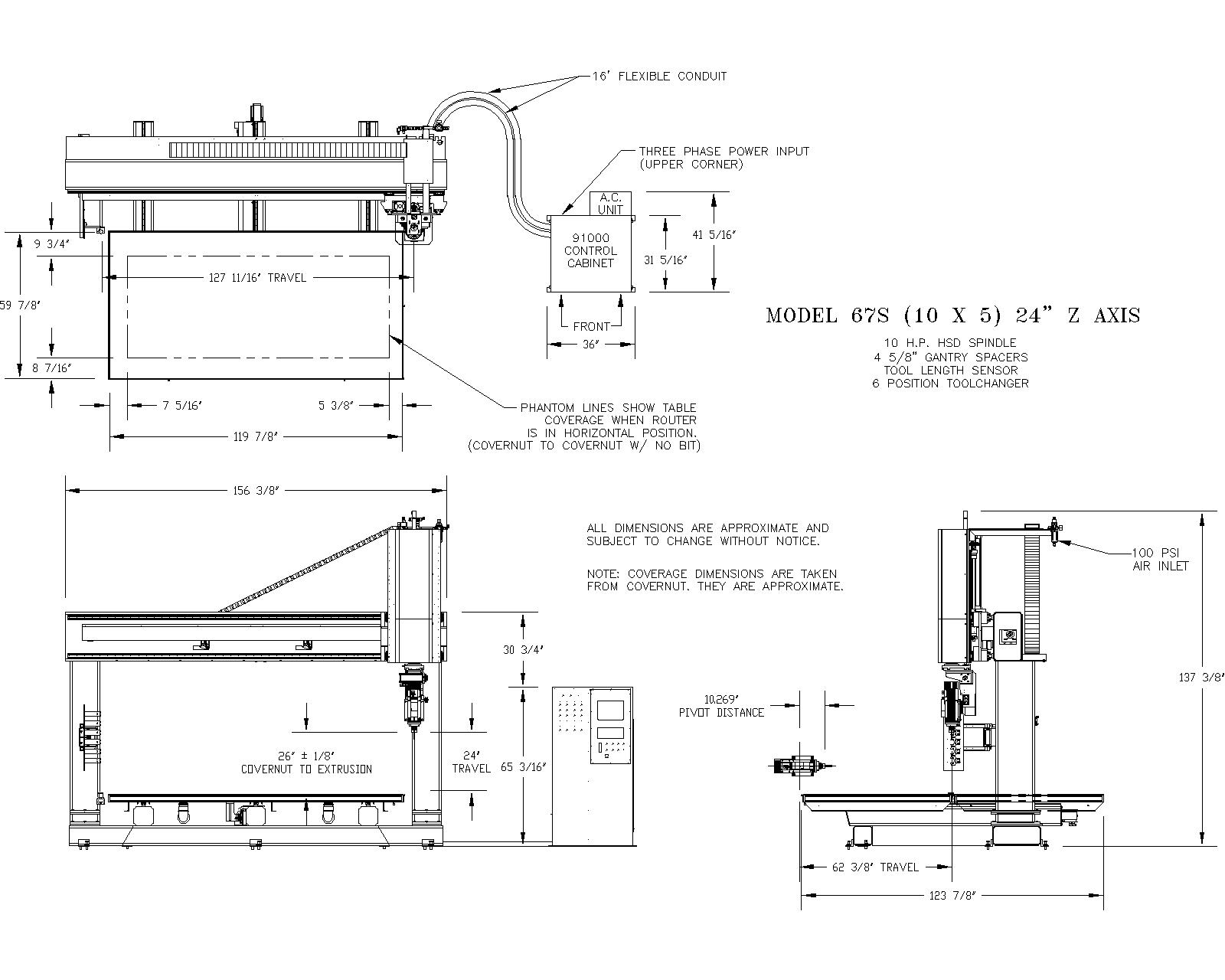

M67 10×5
Multi-Purpose 67 Dimensions

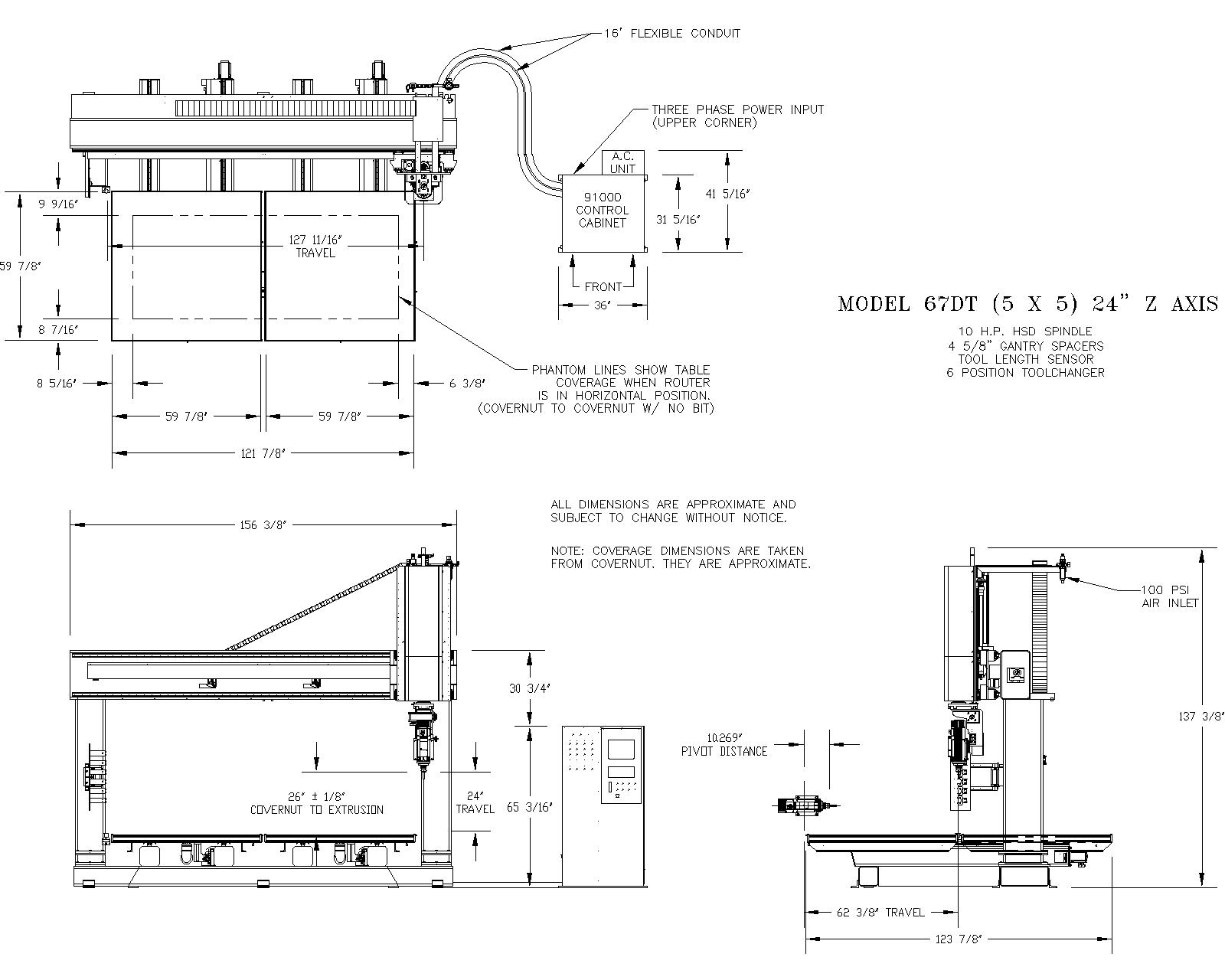

M67 5×5DT
Multi-Purpose 67 Dimensions

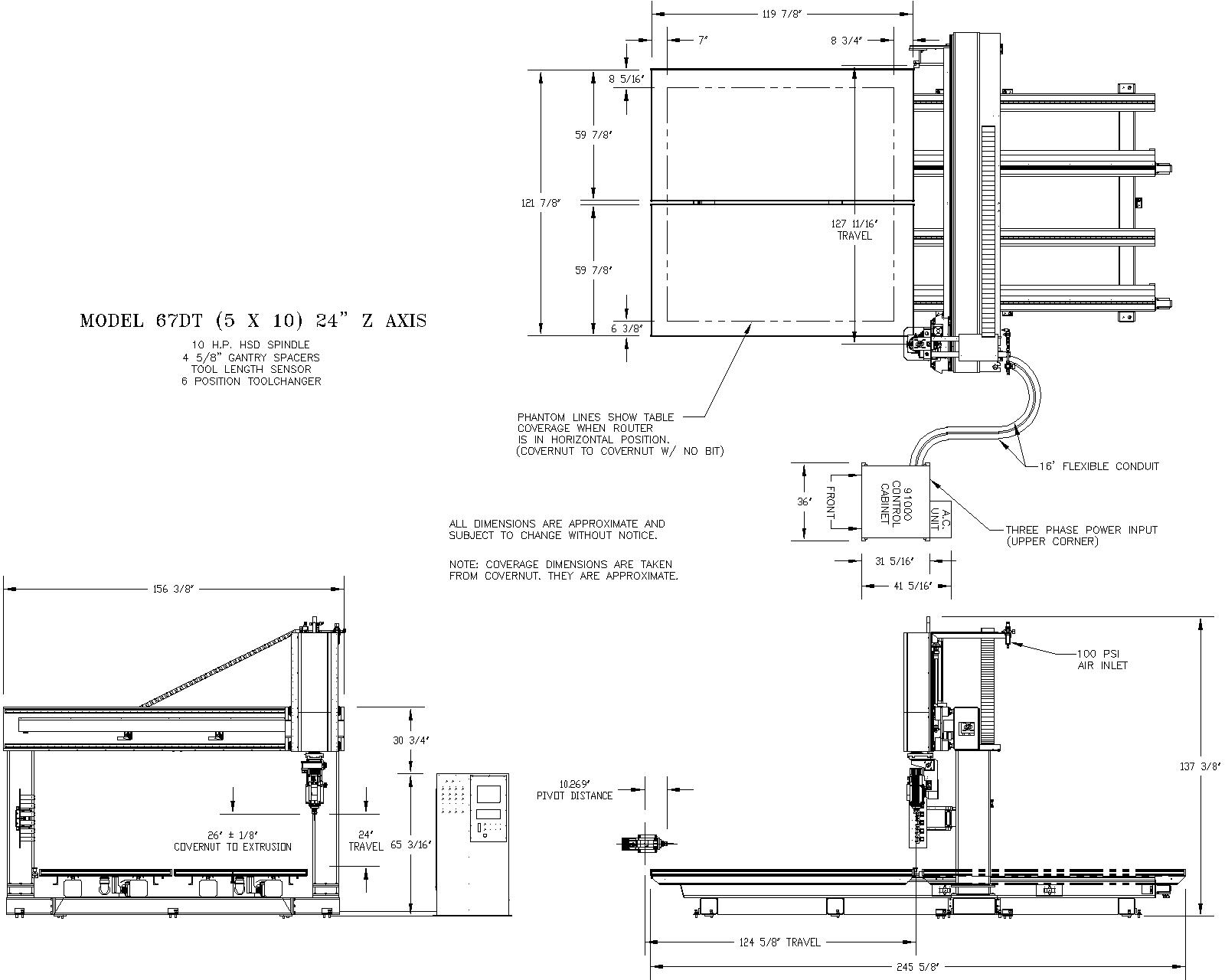

M67 5×10DT
Click Here to View the Five Axis Brochure in Adobe .pdf format

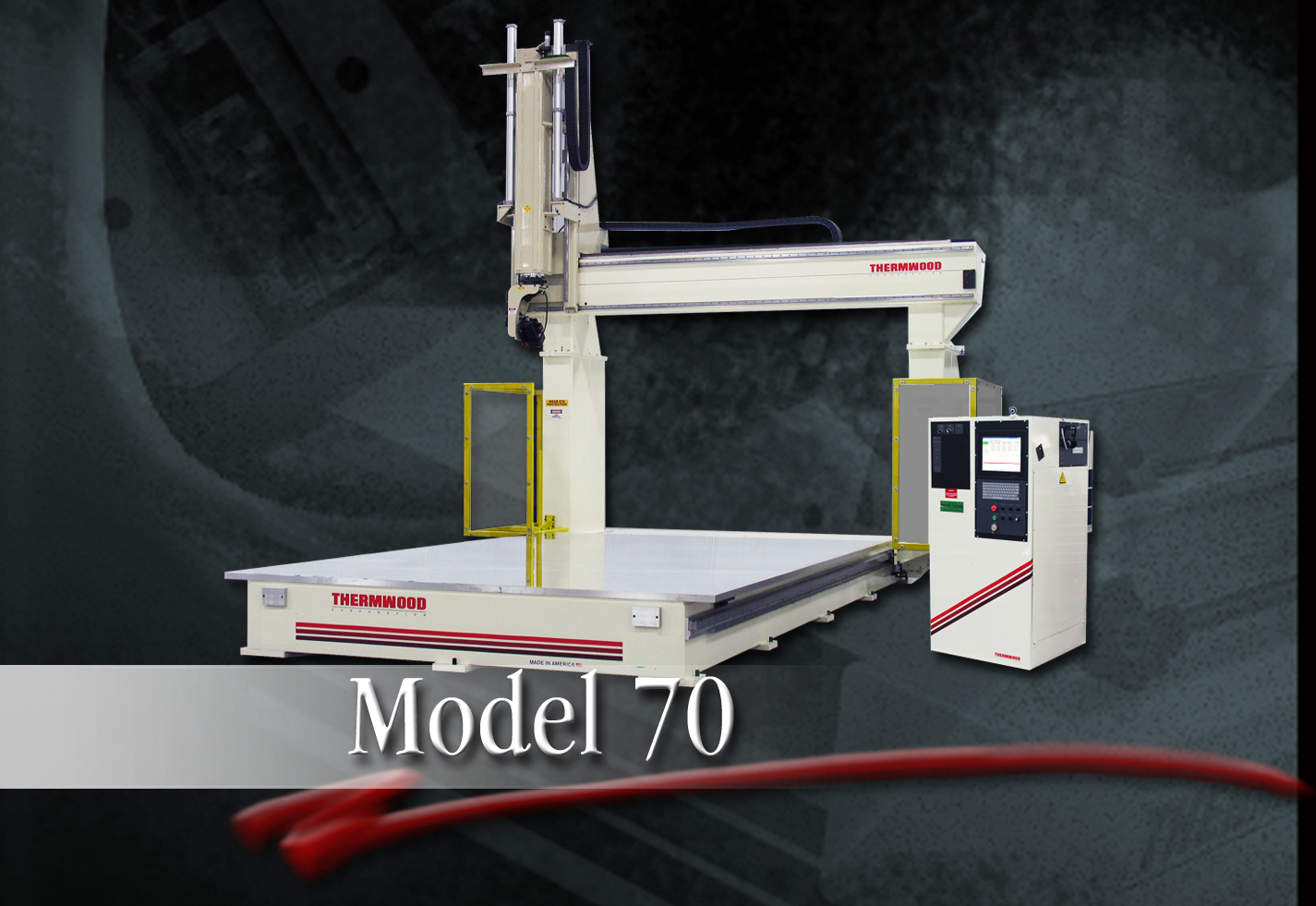

Multi-Purpose 70

MULTI-PURPOSE 70

CLICK FOR MORE INFORMATION
Multi-Purpose 70
  • Tech Specs
  • Dimensions
  • Brochure
Table Size(s)
5×10, 10×10, 10×15, 10×20
(More table sizes available)

Multi-Purpose 70

Multi-Purpose 70 Dimensions

Multi-Purpose 70 Dimensions

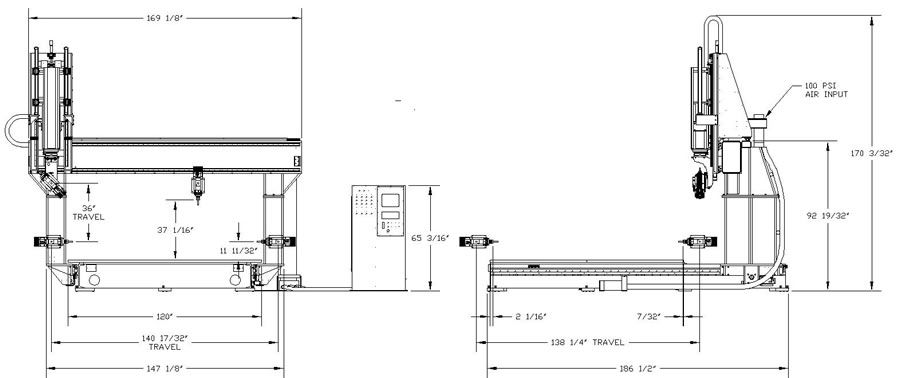

M70 10×10

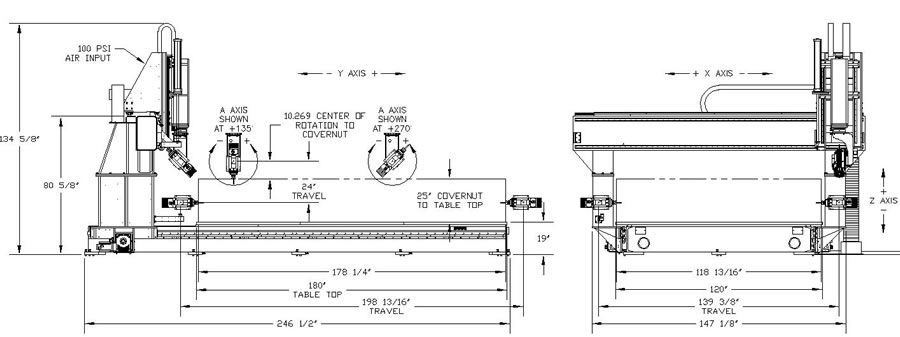

Multi-Purpose 70 Dimensions
M70 10×15

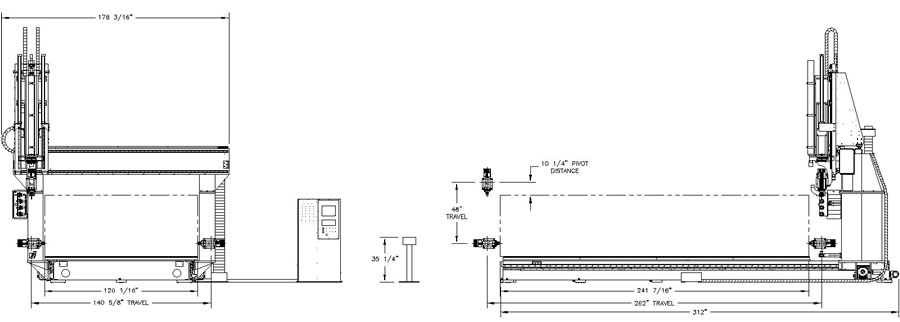

Multi-Purpose 70 Dimensions
M70 10×20
Click Here to View the Five Axis Brochure in Adobe .pdf format



Multi-Purpose 90

MULTI-PURPOSE 90

CLICK FOR MORE INFORMATION
Multi-Purpose 90
  • Tech Specs
  • Dimensions
  • Multimedia
  • Brochure
Table Size(s)
Single Table: 7×10, 10×5

Dual Table: 5×5, 5×12
(More table sizes available)

Multi-Purpose 90

Multi-Purpose 90 Dimensions

Multi-Purpose 90 Dimensions

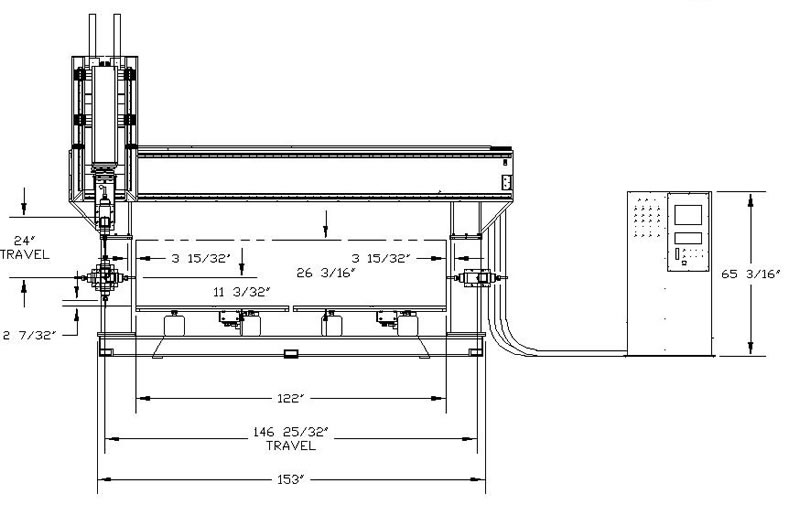

5×5 DT Front
Multi-Purpose 90 Dimensions
5×5 DT Side

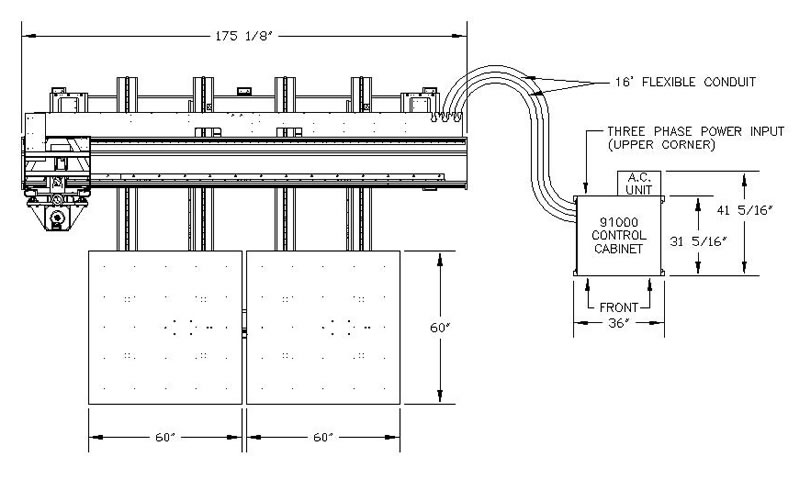

Multi-Purpose 90 Dimensions
5×5 DT Top
Multi-Purpose 90 Dimensions
5×5 36"Z Front

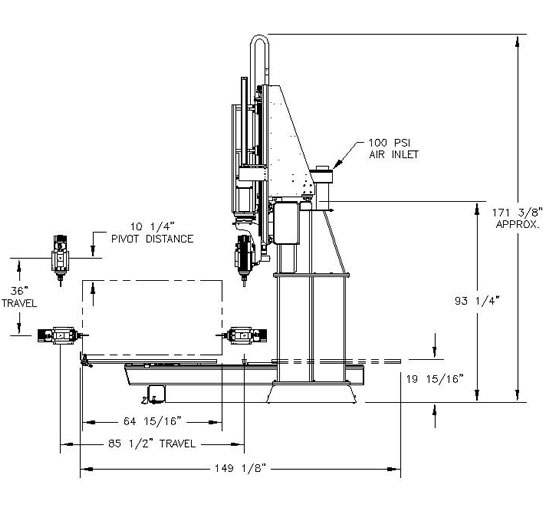

Multi-Purpose 90 Dimensions
5×5 36"Z Side

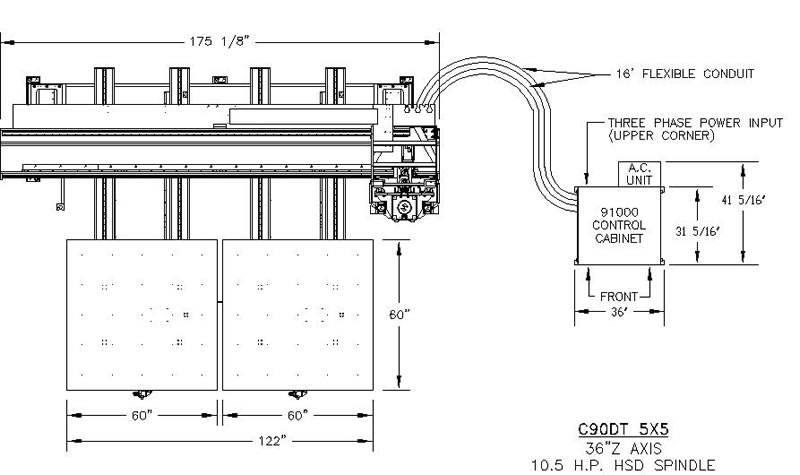

Multi-Purpose 90 Dimensions
5×5 36"Z Top
Multi-Purpose 90 Dimensions

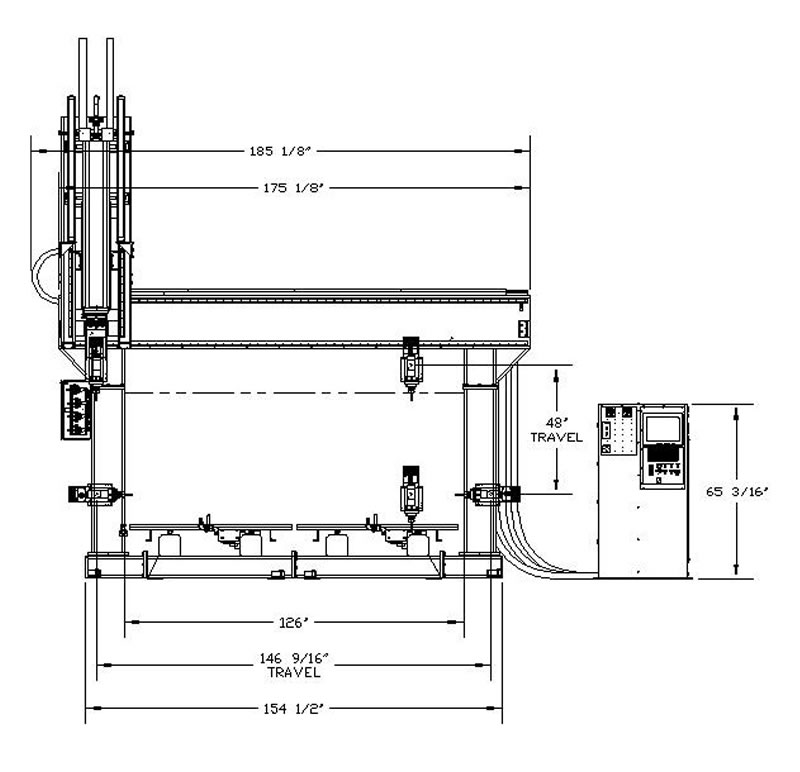

5×12 DT Front

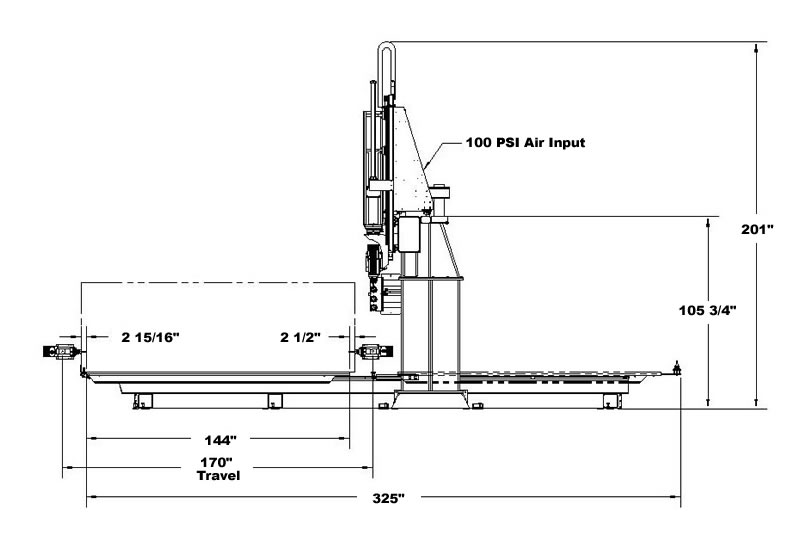

Multi-Purpose 90 Dimensions
5×12 DT Side

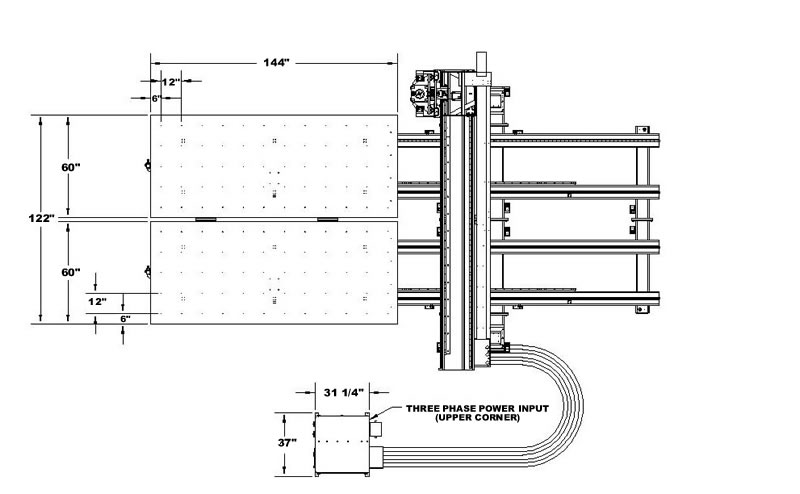

Multi-Purpose 90 Dimensions
5×12 DT Top

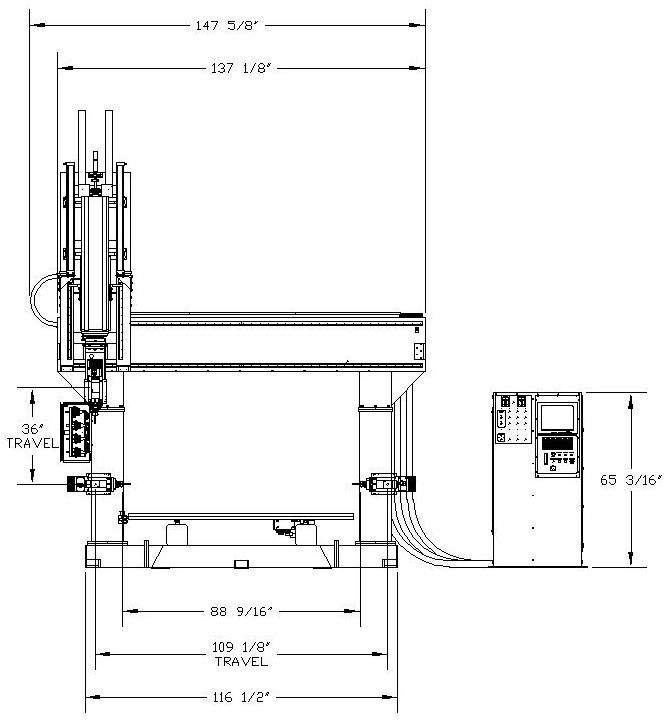

Multi-Purpose 90 Dimensions
7×10 Front

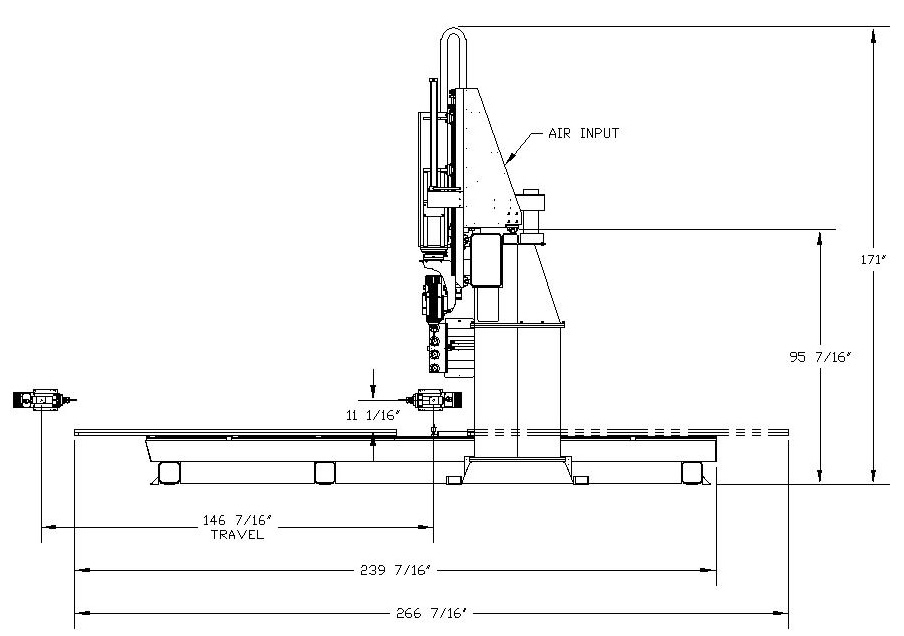

Multi-Purpose 90 Dimensions
7×10 Side
Multi-Purpose 90 Dimensions

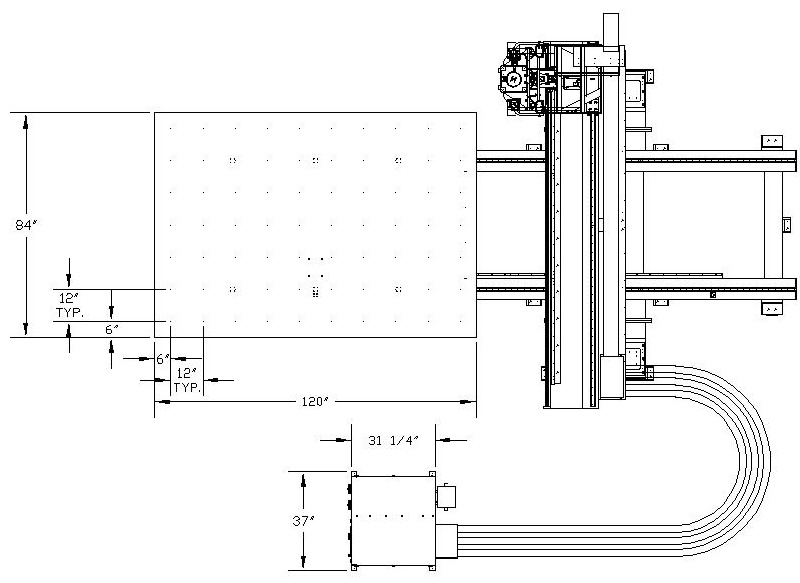

7×10 Top
Click Here to View the Five Axis Brochure in Adobe .pdf format
