Fravol Edgebanders - Automatic Smart Eco

Smart Eco 1

Working Unit:

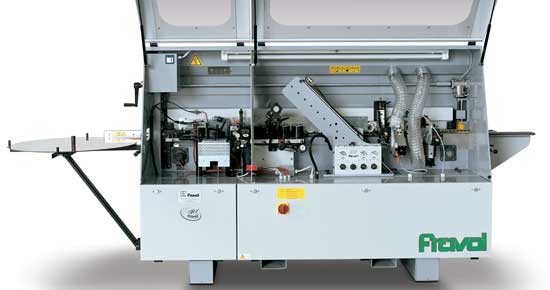

Fravol Smart Eco Series Edgebander Working Unit

Basic Features

Single automatic edging machine for straight panels with edge thickness max 3 mm
Single automatic edging machine for application of PVC, ABS, melamine, veneer and solid wood edges in rolls.
Compact sturdy machine
Ideal for industrial or artisan use
Adjustable feed from 12,5 mt/minutes
Quick heating, start-up 6 - 8 minutes
Glue pot capacity: Kg 1 (Quick-release)
The units are adjusted automatically with pressure bar provided with a double row of wheels
The two end-trimmer motors are adjustable from 0° or 15° both are powered by a 200 Hz frequency inverter
Multiple use top-bottom trimming unit
Buffing only for S2-eco
