PLASTIC TRIMMING - PATTERNS - MOLDS - NON-FERROUS METALS

MULTIPURPOSE 90

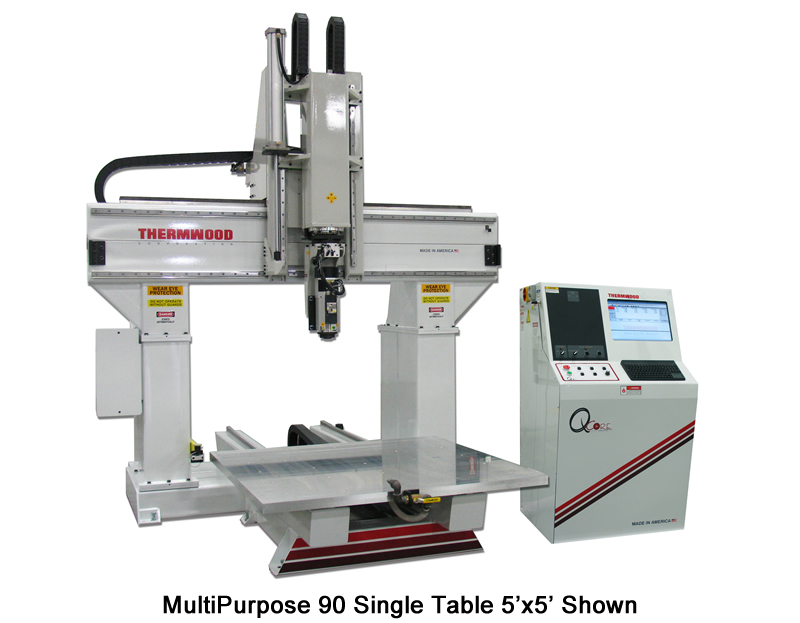

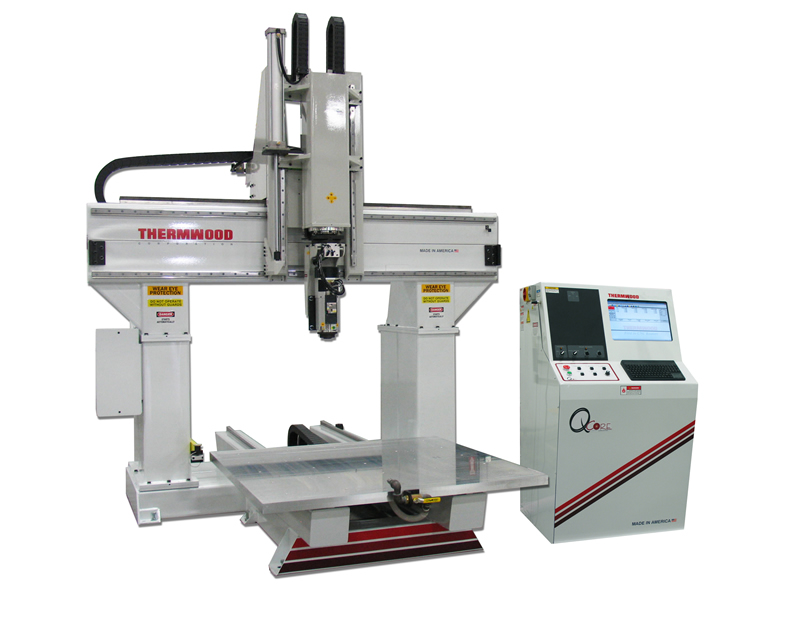

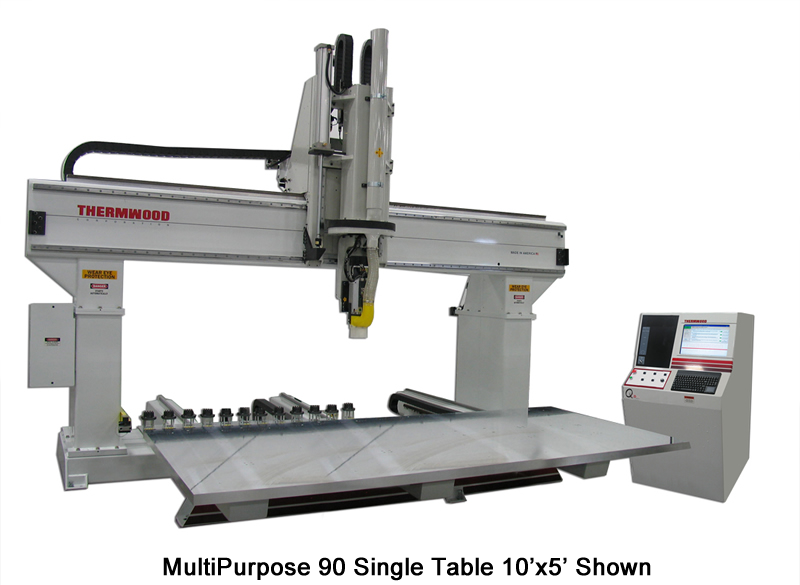

Heavy-duty, high-speed trimming and pattern machining, available in single or dual moving aluminum tables




MULTIPURPOSE 90

Heavy-duty, high-speed trimming and pattern machining, available in single or dual moving aluminum tables
Available Table Sizes:

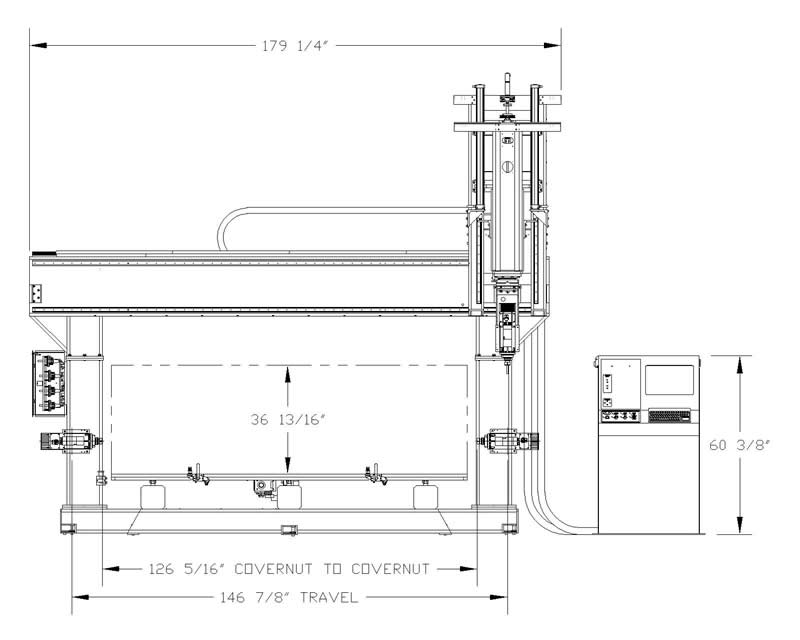

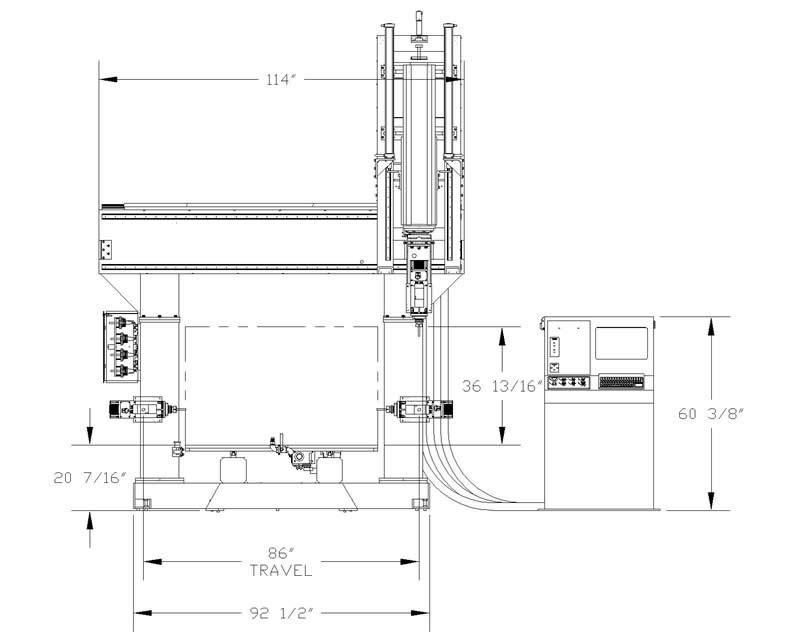

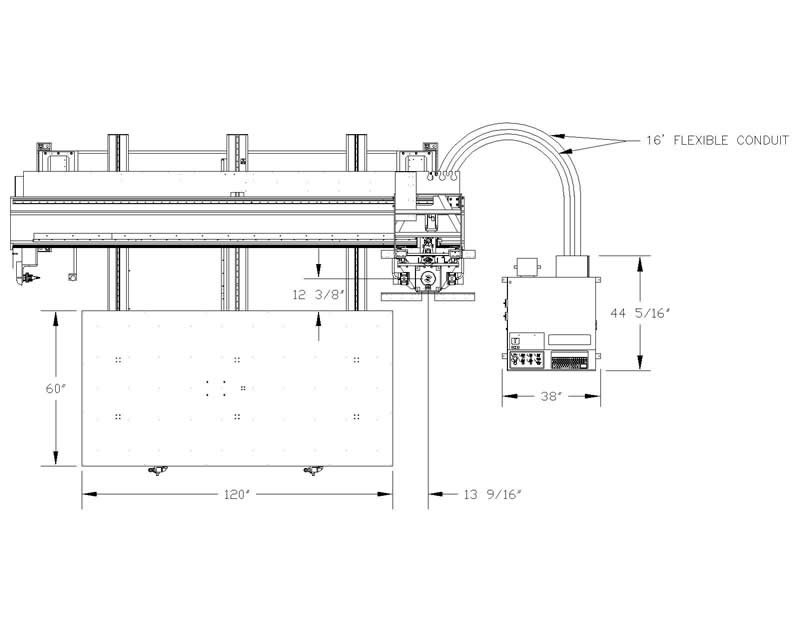

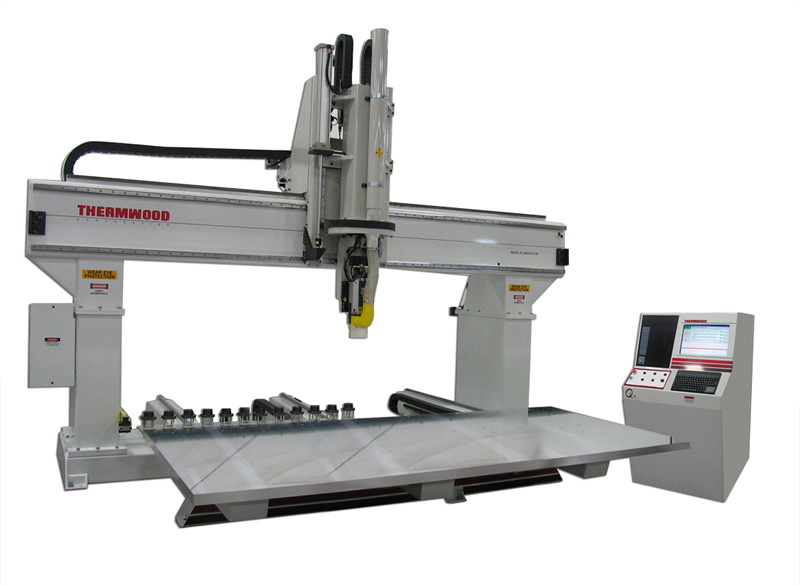

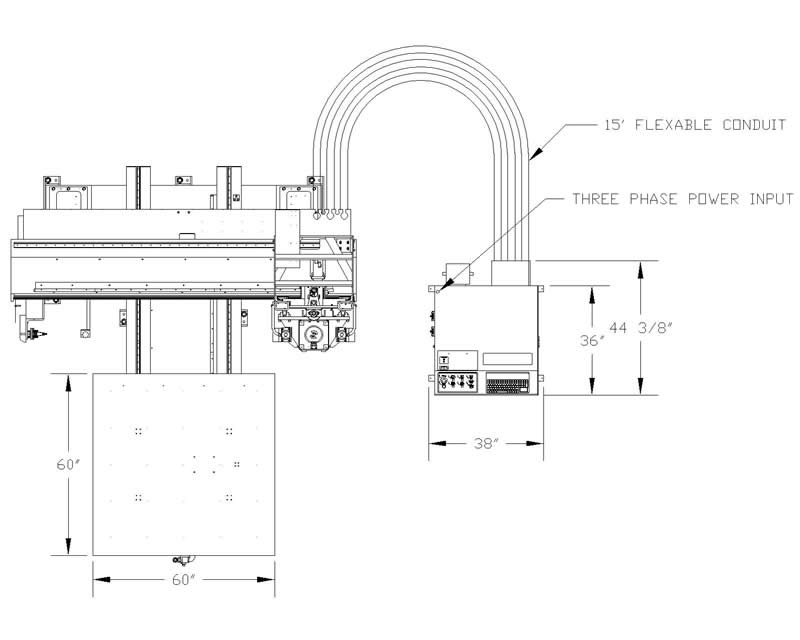

Single Table - 5'x'5, 5'x10', 10'x5'

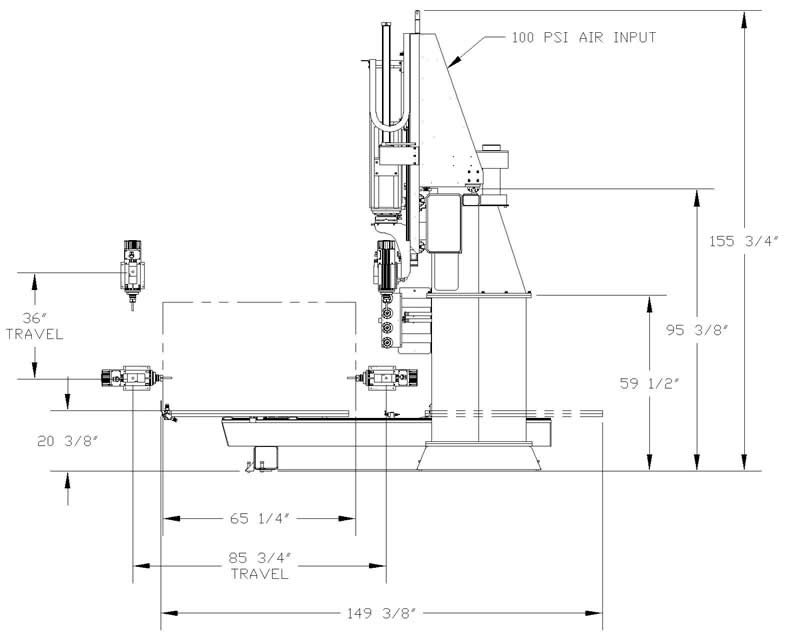

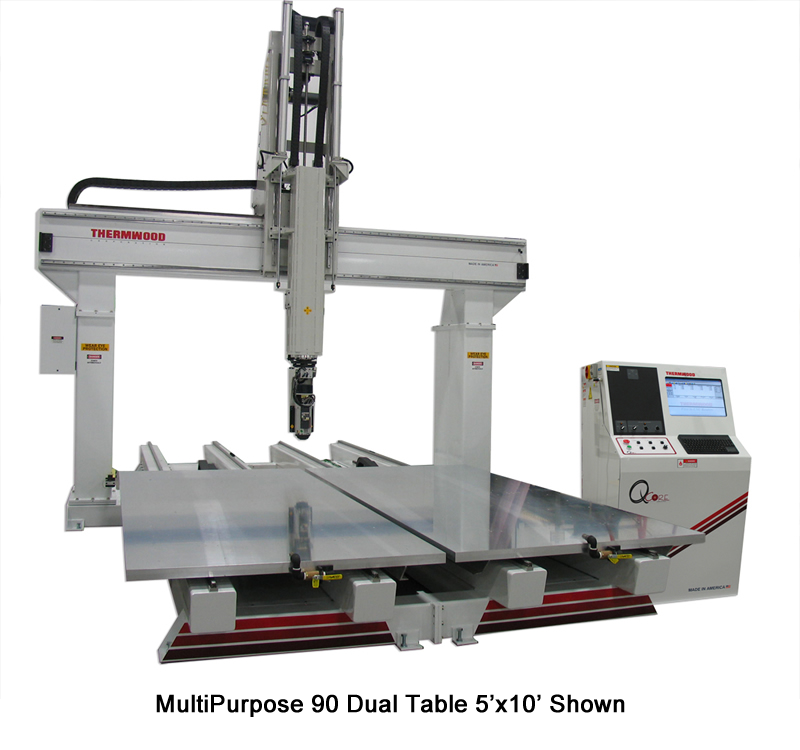

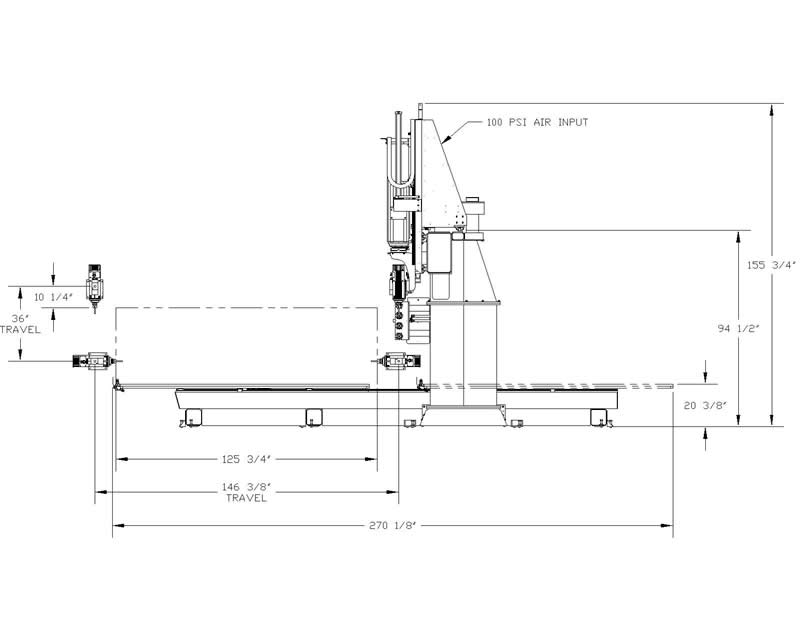

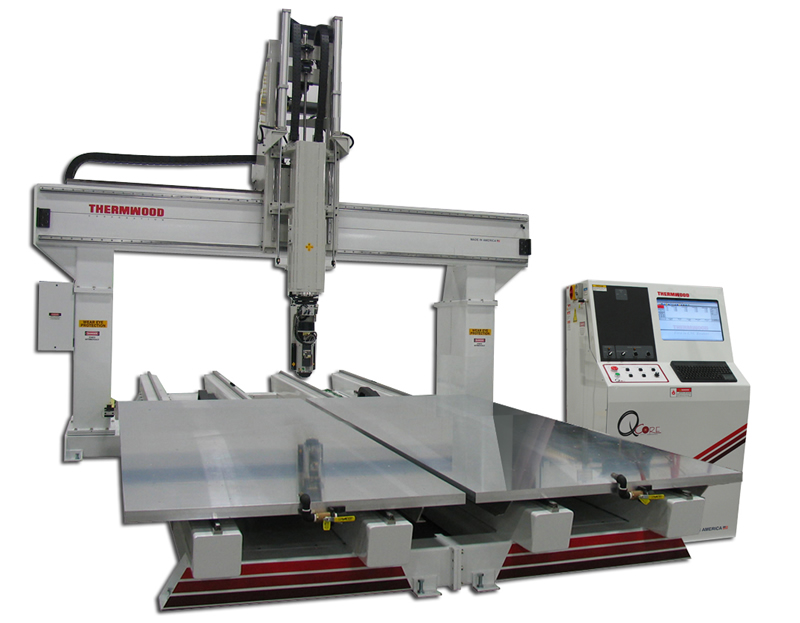

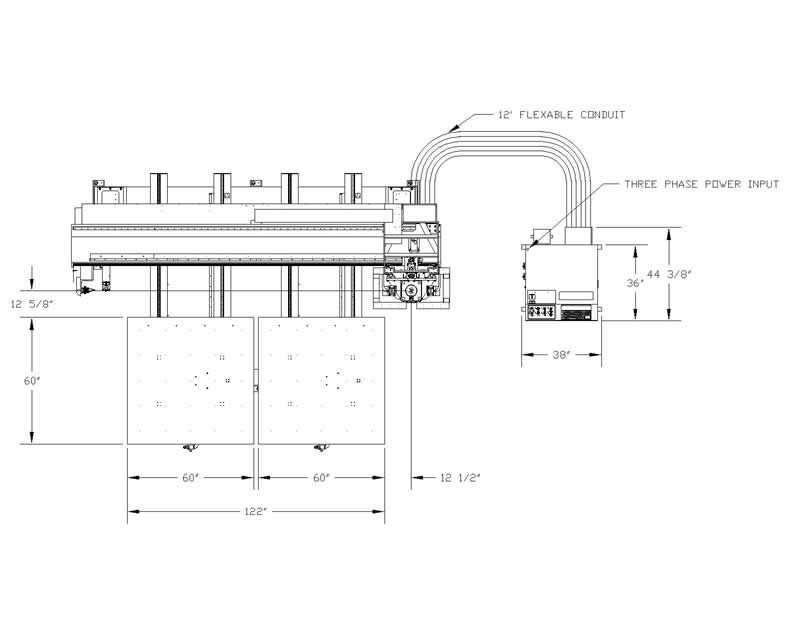

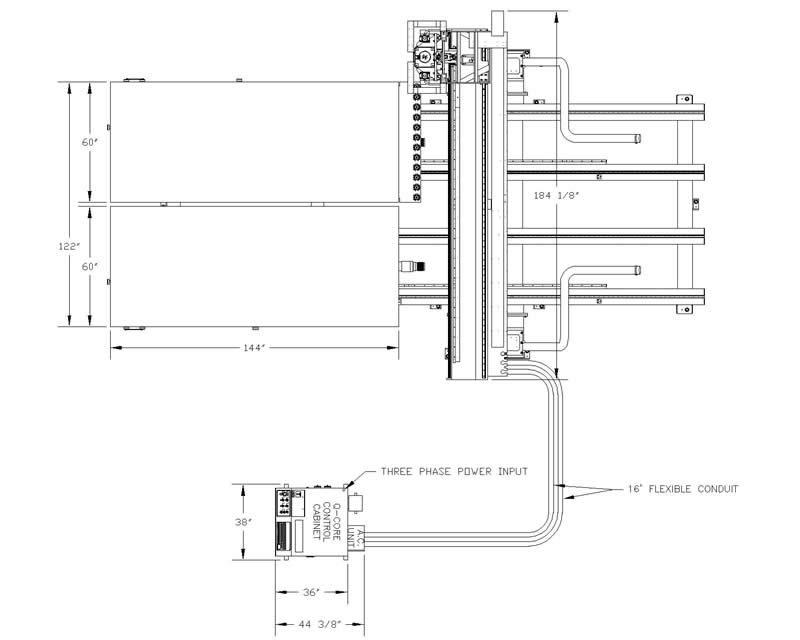

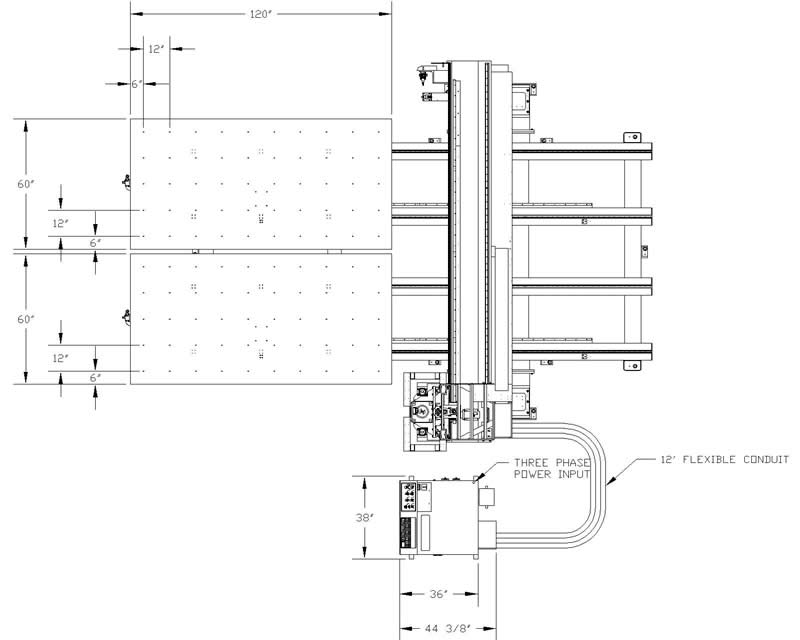

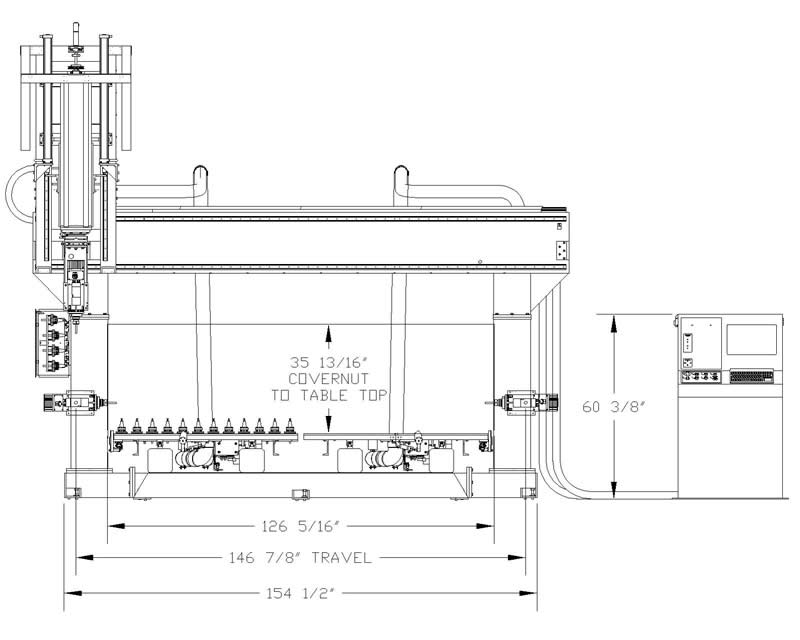

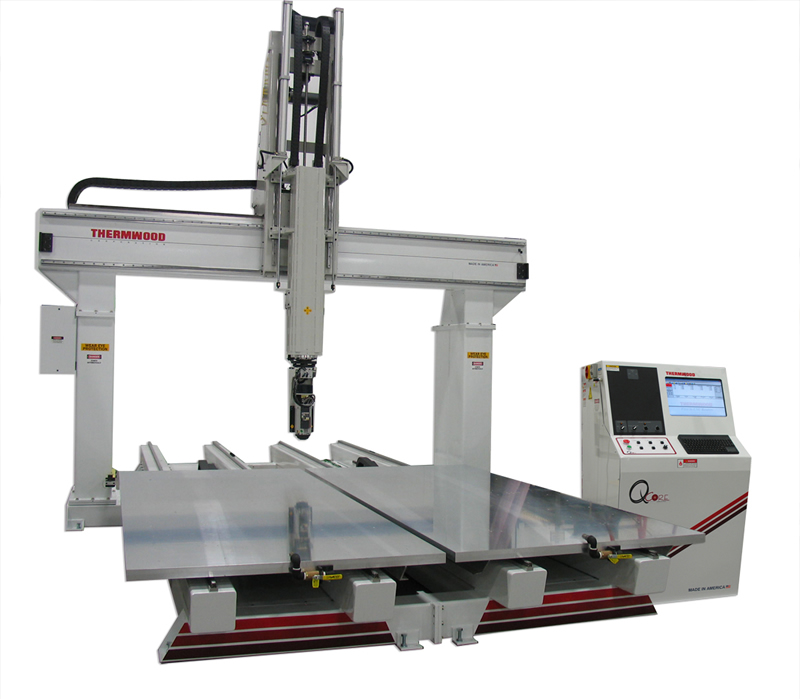

Dual Tables - 5'x5', 5'x10' and 5'x12'

  • 12 HP 24,000 RPM Router with a 4 Position Automatic Tool Changing System (Standard)
  • 16 HP 24,000 RPM Router with a 4 Position Bar Style Automatic Tool Changing System (Optional)
  • 1" Thick Solid Aluminum Vacuum Table (Standard)
  • 1/2" Thick Multi-Function Vacuum Table (Optional)

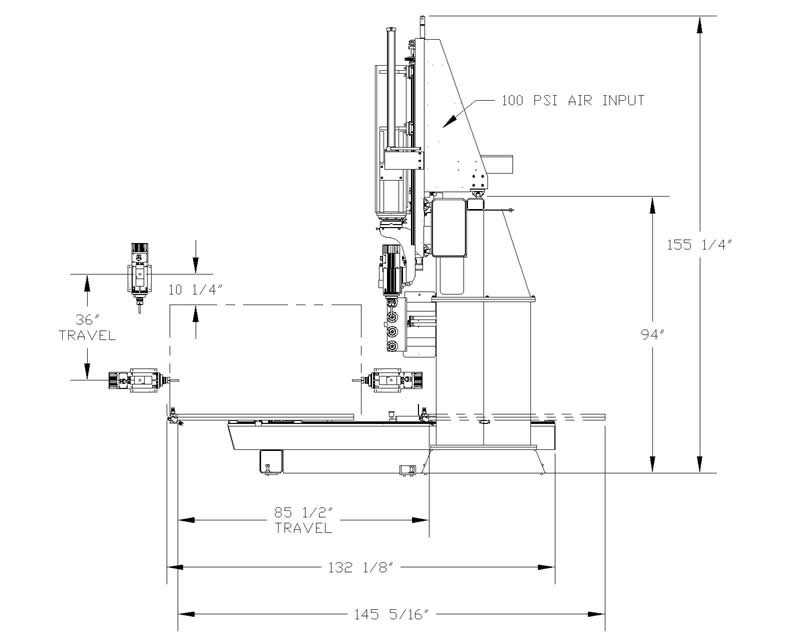

  • Extended Z Axis: 36" vertical (Optional)
  • Extended Z Axis: 48" vertical (Optional)
  • Extended Z Axis: 60" vertical (Optional)
  • Six Position Tool Bar Under Gantry (Optional)
  • Four Position Automatic Tool Changer - On Right Side Gantry Leg (Standard)
  • Ten Position Rotary Automatic Tool Changer (Optional)
  • Twelve Position Tool Bar (mounted to back of table) (Optional)
  • Automatic Tool Length Measurement (Optional)
  • Automatic Tool Length Sensor (Optional)
  • Automatic Lubrication System (Optional
  • Gantry Lighting System (Optional)
  • Accu-Lube Mist Coolant System (Optional)
  • Machine Enclosure (Optional)
  • Impact Resistant Five Axis Head (Standard)
  • Continuous C Axis (Optional)
  • Three-Dimensional Laser Compensated Axis Alignment
  • Siemens Intelligent Servo Drives Throughout
  • Thermwood SuperControl
  • Machine Training and Installation
Request More Info Brochure Free eBook CNC Investment Calculator

Machine Standard Features

  • 12 HP 24,000 RPM Router

    12 HP 24,000 RPM Router w/4 Position Bar Style Automatic Tool Changing System

    One (1) 12HP, 24,000 RPM variable speed router equipped with a four (4) position Automatic Tool Changing System. Includes four (4) ISO-30 tapered tool holders with four (4) collets, and preset tooling changing fixture. 3 positions will accept tooling up to 11.5 inch in overall length. Standard maximum tool size is 2” diameter. Standard

  • Volumetric Laser Compensated Axis Alignment

    Volumetric Laser Compensated Axis Alignment

    The machine is calibrated in all axes using a three-dimensional volumetric laser interferometer. This type of calibration is the most sophisticated and most accurate available today resulting in machines that are extremely accurate. Others may use single axis calibration (not nearly as good) and others may not calibrate at all. Uncalibrated machines can generate dimensional errors that can become a real problem. Standard

  • Thermwood SuperContro

    Thermwood SuperControl

    The Thermwood SuperControl is a feature rich, high performance CNC control system. Thermwood, the only major CNC router manufacturer that designs and builds its own CNC control, is a leader in implementing advanced control technology. As a result, Thermwood has been granted more patents on CNC router technology than all other CNC router manufactures in the world, combined. Standard

  • Four Position Automatic Tool Changer

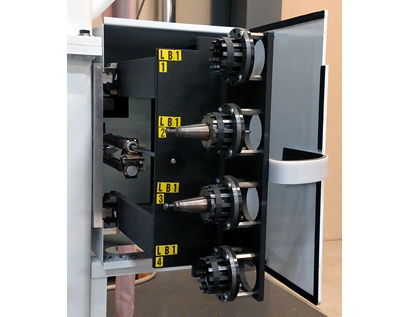

    4 Position Automatic Tool Changer

    Four Position Automatic Tool Changer - Mounted in Gantry Leg. Includes four(4) ISO-30 tapered tool holders with four (4) collets. three positions will accept tooling up to 11.5 inch in overall length. Standard maximum tool size is 2" diameter. Standard

  • Machine Training

    Machine Training

    We are by your side during your 5 Day training course at our modern, state of the art center (devoted specifically to educating our customers). This is, by far, the fastest and most efficient way to learn. Our machine operator/programmer courses are located adjacent to the machine training lab, where students complete the prescribed projects on a specific training machine utilized only for training purposes. Then, when it comes time for practical applications on a full sized machine, Thermwood's training lab is equipped with a CabinetShop 45 outfitted with all major options and features. Real production-type parts are cut. What a confidence builder!  Standard

Machine Options

  • Six Position Bar Style Automatic Tool Changer

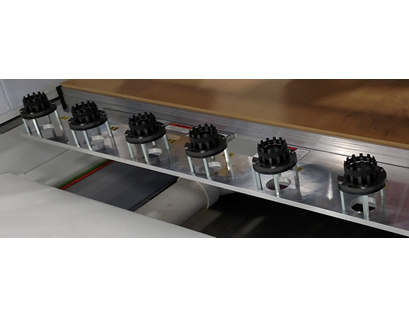

    6 Position Bar Style Automatic Tool Changer

    Six (6) position side load mounted tool bar is mounted to the top surface of the table.  This automatic tool change option allows tools up to 3.25 inches in diameter.  Optional

  • Ten Position Rotary Automatic Tool Changer

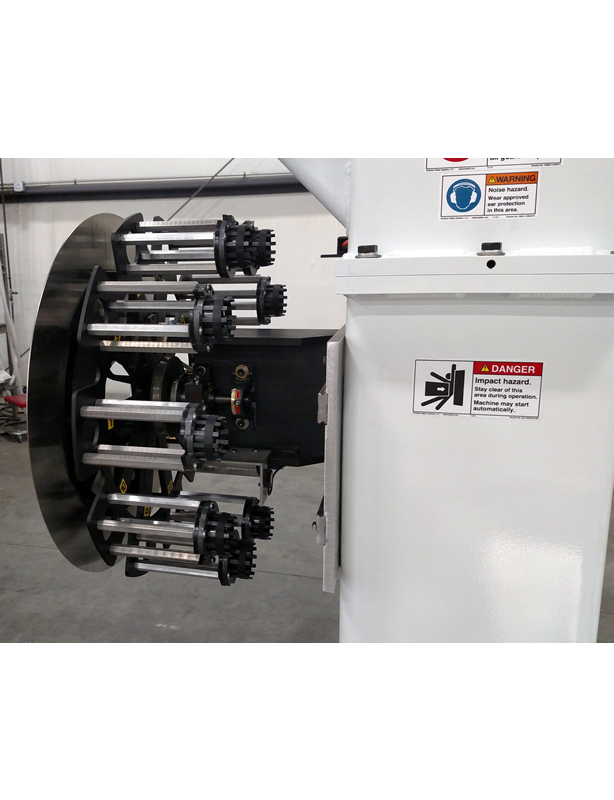

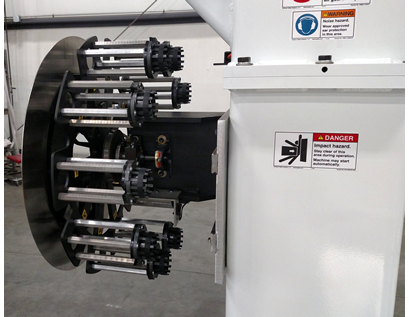

    Ten Position Rotary Automatic Tool Changer

    Ten (10) Position Rotary Automatic Tool Changer. Includes ten (10) ISO-30 tool holders and collets and a pre-set tool holder fixture. (may instead include (10) HSK F63 tool holders/collets for an additional charge). Optional

  • Automatic Tool Length Sensor

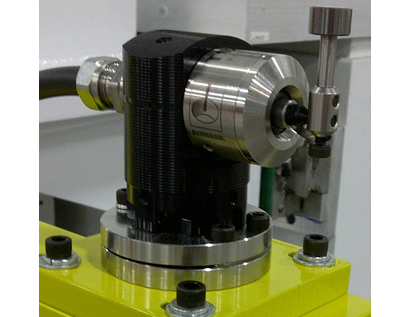

    Automatic Tool Length Sensor

    Provides an automatic method of measuring tool length and entering tool length offset numbers into the control.  This automatically compensates for the new tool length, eliminating the need to precisely locate the cutter bit.  It provides a highly accurate method of adjusting tool length for pocketing or profile edges. Optional

  • Automatic Lubrication

    Automatic Lubrication

    Provides positive pressure, air/oil lubrication to the linear trackway bearings and the ball screws  This has two major benefits:  First, it eliminates the lubrication points which must be servided each shift.  Second, it provides positive pressure to the bearing, preventing contamination from entering the bearing.  This allows the machine to function in difficult, dusty or hostile environments. Optional

  • Remote Start/Stop Pedestal

    Remote Start/Stop Pedestal

    A remote pedestal with start/stop switches and a 30 foot cable. Optional

  • Gantry Lighting System

    Gantry Lighting System

    • High quality bright quad row LED lights mounted in a weather resistant enclosure and designed for tough environments. The unit is mounted under the gantry for better examination of finished parts and illuminating the work envelope when programming at the machine. Optional

  • Vacuum Pump

    Universal Vacuum System is a unique method for holding panels to the table top for machining.  A sheet of particleboard or low density MDF is used as a work surface on the top fo the table.  The high flow pump vacuums through the work surface, holding the part to the table.  Pumps are available as 15HP (11kw).  Conventional vacuum also available. Optional

Videos

Model 90 5'x5' 5 Axis CNC Router Machining Medium Density Foam Tray


Thermwood Model 90 Machining Bust in Low-Density Foam


Thermwood Model 90 Modeling Foam and RenShape


Thermwood Model 90 Modeling Foam


Thermwood Model 90 Dual Table 5'x5' CNC Router Cutting HD Foam

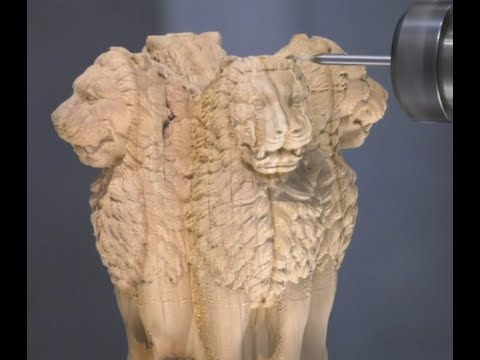

Take a Tour of the Thermwood 5 Axis Model 90

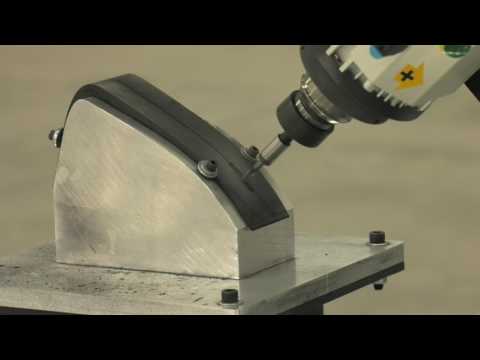

Model 90 5'x5' 5 Axis CNC Router Machining Carbon Fiber Prosthetic Component
