Uploading file take 2.

Have tried on Walls 2,3 and 4.
They all have the same issue.

Am in Elevation / Wall View.

When I choose to go to Scaled Print , only the wall with dimensions is showing. There are no cabinets on the wall ( but the dimensions of the cabinets are there )

Had done a search in the forums and saw other people had same issues .

How was it resolved ?

Hi Brad.

Thanks for the tip.
It's been a while since using Ecabinets.
I 'm starting to get the feel of it !

How 's businesses doing in your area ?

Good stuff !!

That really looks good !
I will be definitely trying it out.

Thanks for the solution , Rick.

Yes I know about the tool tip.

I find it much quicker seeing info at the bottom of screen.

Wanted to know if there was a way to modify the appearance to make it fit my screen.

Thanks for replying.

Bingo !

When hovering with mouse pointer over cabinets , the info in lower left isn't showing.
(width ,height , length ...)
I really like this feature , it lets me check individual cabinets at a glance.

Otherwise everything else is ok.

Yes tried it.

I think I should be going greater than the 1360 X 768 format in order to get more of the image.
Since this is the maximum , can't do much about it !

Thanks Dennis.

Those are the settings that I'm using .

I wanted to make the Ecabinet environment a little bit smaller in order to fit everything on the screen.
I thought there could have been an option to zoom in and out to customize the size.
( similar to how we can do this within the program on ...

Hi Brad.

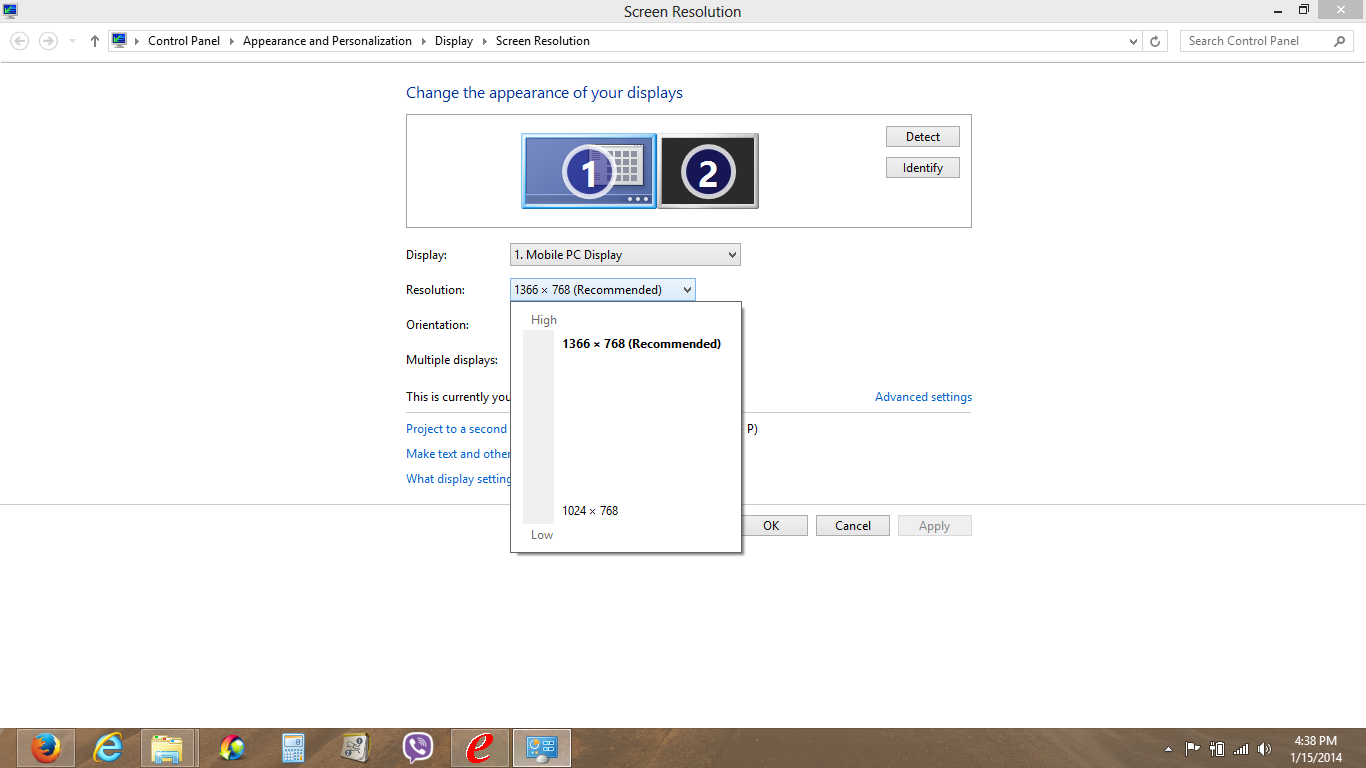

My screen is set at 1366 X 768.

Yes definitely on the small side , but very portable.
It comes in handy when going on site to show clients the layouts.

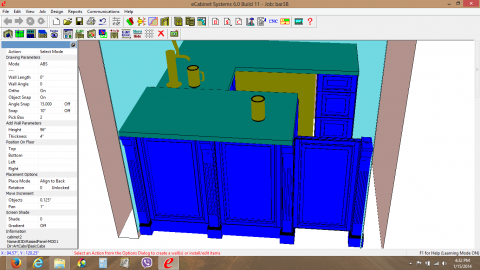

Following are some screen shots .

Thanks for your quick reply.

Good morning to all.

I am using Ecabinets on a 15" and 17" laptops.
( Windows 8 )

On the 17" screen , it is ideal - I have full view of everything.
On the 15" screen , when working on a job in the main screen - the cabinet information in the lower left , is off the page .

Is there any way of ...
