need help with shape manager tool

Moderators: Jason Susnjara, Larry Epplin, Clint Buechlein, Scott G Vaal, Jason Susnjara, Larry Epplin, Clint Buechlein, Scott G Vaal

Post Reply
Thomas strembitsky
Guru Member
Posts: 307
Joined: Fri, Jul 27 2012, 12:30PM
Company Name: true form cabinets
Country: CANADA
Contact:
Contact Thomas strembitsky

need help with shape manager tool

Post by Thomas strembitsky »

cant get this file to turn into a .tol keep getting this error message
im attaching the original dxf and my tool
error message.PNG
error message.PNG (3.86 KiB) Viewed 6927 times
the tool file.zip
(27.73 KiB) Downloaded 852 times
Intel(R) Core(TM) i-13700K @ 2.70GHz 32.00 GB RAM
Windows 11 Professional 64-bit
http://www.trueform.ca
CS43 cnc
Top
User avatar
Troy Hollinshead
Junior Member
Posts: 58
Joined: Wed, Apr 30 2014, 4:13PM
Company Name: Leidys Custom Woodworking
Country: UNITED STATES
Location: Mercersburg, Pennsylvania
Contact:
Contact Troy Hollinshead

Re: need help with shape manager tool

Post by Troy Hollinshead »

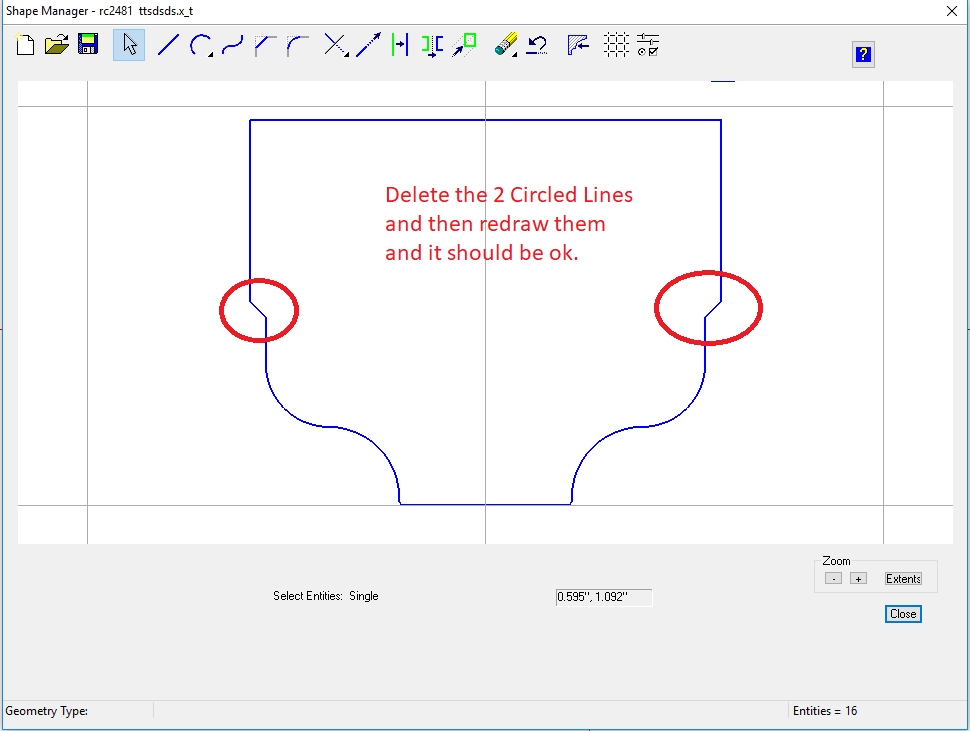

rc2481 ttsdsds.png
Top
User avatar
Clint Buechlein
Thermwood Team
Posts: 785
Joined: Fri, May 15 2015, 1:21PM
Company Name: Thermwood Corp
Country: UNITED STATES

Re: need help with shape manager tool

Post by Clint Buechlein »

You can also use the Trim Two tool for the intersection points. The tops of the line don't touch the vertical portion, the bottoms of the line intersect the lower vertical lines. Something is off in the DXF from Amana. Mastercam does not recognize it as a chain.

-Clint-
Top
Thomas strembitsky
Guru Member
Posts: 307
Joined: Fri, Jul 27 2012, 12:30PM
Company Name: true form cabinets
Country: CANADA
Contact:
Contact Thomas strembitsky

Re: need help with shape manager tool

Post by Thomas strembitsky »

thanks
Intel(R) Core(TM) i-13700K @ 2.70GHz 32.00 GB RAM
Windows 11 Professional 64-bit
http://www.trueform.ca
CS43 cnc
Top
