Some issues with drawings/dimensions

[Jeremy Schiffer]

I've got a little list here of issues that I've isolated concerning auto-dimensioning, scaled print, and cross-section views:

1- Auto dimensions:
For the sake of material thickness variations, we have hardware hole patterns that protrude beyond the bounds of the cabinet (in this case, 1/8")

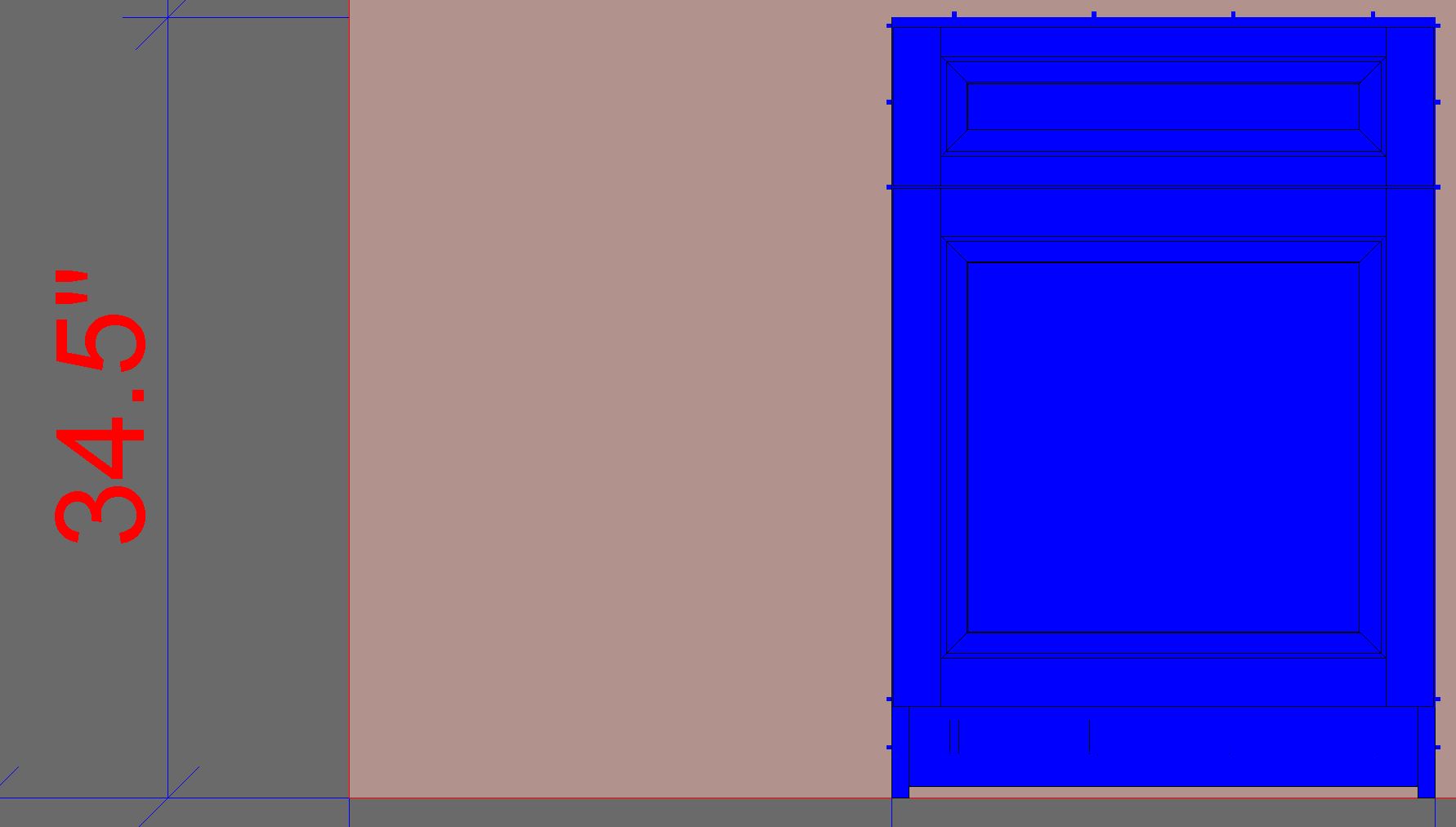

You can see them in this picture, as well as the automatic dimension from the Custom Layout, which is correct at 34.5"

If I create a Scaled Drawing from this view, it is also correct.

CL scaled print.JPG (19.49 KiB) Viewed 5066 times

If I take this view to the Line Drawing Editor and auto-dimension it, the dimensions include the protruding hardware holes (definitely don't want that):

LDE scaled print.JPG (19.2 KiB) Viewed 5066 times

2- Cross Section View
If I create a cross-section view of the cabinet, and then a Scaled Print, the scaled print does not show the cross section, rather it seems to just show an end-view of the cabinet:

scaled print cross section.JPG (12.56 KiB) Viewed 5066 times

3- Print scale not printing
When printing a scaled print, the print scale shows on the screen, but does not show on the printout. (I mentioned this during the beta phase for this feature)

[Clint Buechlein]

Jeremy,

Thanks for letting us know, I'll pass along the issues to the software engineers.

-Clint-
