Rotate Top

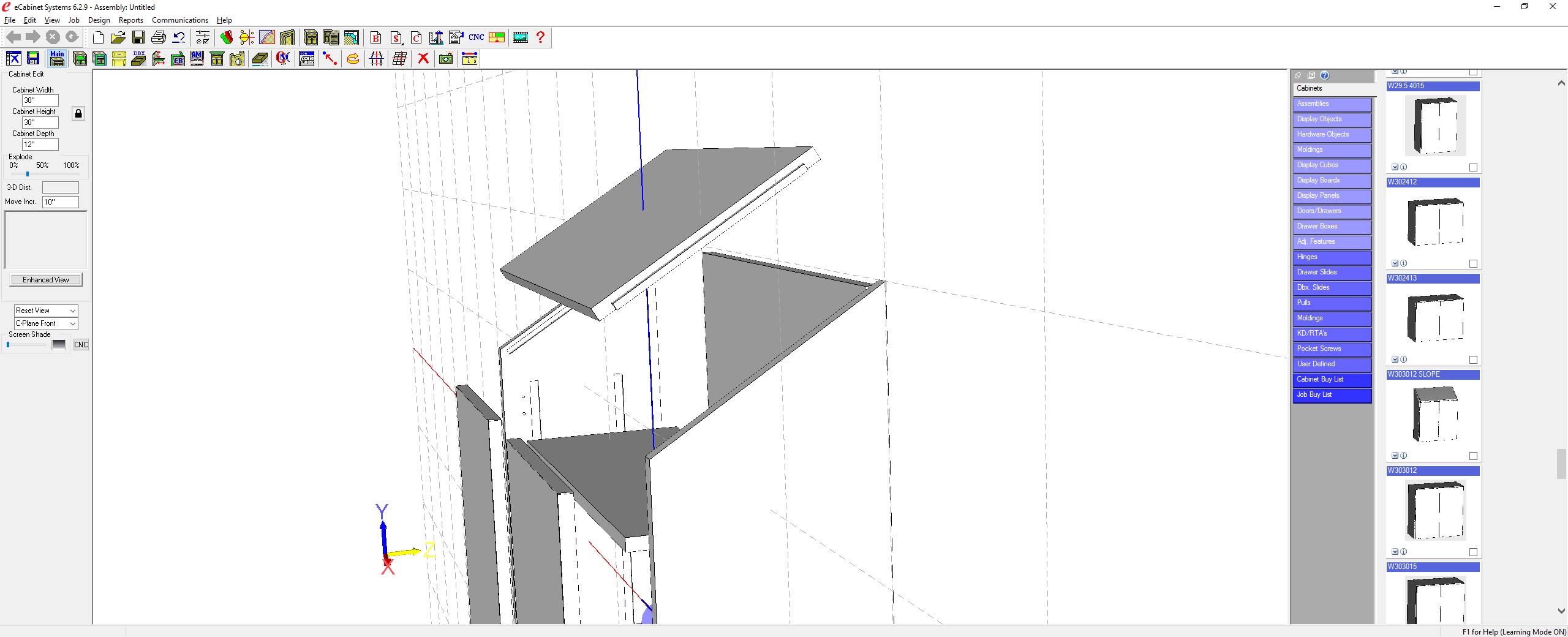

We need to build angled top cabinets. See pic.
Can I do this in eCabs with the top or do I need to use stretcher to make the top angle front to back? Follow side does not work under Angle Part
Can I do this in eCabs with the top or do I need to use stretcher to make the top angle front to back? Follow side does not work under Angle Part
-
Scott Marshburn
- Guru Member
- Posts: 867
- Joined: Sat, Mar 05 2011, 7:29AM
- Company Name: Heritage WoodWorks
- Country: UNITED STATES
- Location: Jacksonville Nc
- Contact:
Re: Rotate Top
A stretcher woul work best if you need to resize it in the future. How ever a display panel is a lot easier but will not resize with the cabinet.
Yes! Oh Yes! I Think We Are Going to make It!
https://www.youtube.com/user/ecabinetstips
https://www.facebook.com/groups/397563664342467
https://www.youtube.com/user/ecabinetstips
https://www.facebook.com/groups/397563664342467
Re: Rotate Top
Just closing the loop. Made with stretcher. Calculated length using geometry of triangle, added for mitering the edges to vertical. Doors size correctly, etc.
-
Chris B Campbell
- Senior Member
- Posts: 114
- Joined: Fri, Jul 29 2005, 4:00PM
- Location: Helendale, CA.
Re: Rotate Top
hi Rob,
Did you ever come up with an easier way to create the slopped cabinet? Display panel you can rotate but won't resize with different width's. Stretcher you can't rotate to match slope. Plus I wanted to use Lft. & Rght. blind dados.
We are getting more and more into commercial work, the standard is becoming the slopped top's.
Have a great day,
Chris
Did you ever come up with an easier way to create the slopped cabinet? Display panel you can rotate but won't resize with different width's. Stretcher you can't rotate to match slope. Plus I wanted to use Lft. & Rght. blind dados.
We are getting more and more into commercial work, the standard is becoming the slopped top's.
Have a great day,
Chris
Re: Rotate Top
Chris, first picture is actually hard to see but the stretcher is in fact sloped. In our case, we rotate 148 degrees and adjust insets and it worked like a champ! Maybe this is a better picture.
You are correct that this is becoming a normal situation for us as well, especially in anything medical related. That si why I was trying to automate it versus do it offline.
Funny story on this though, recent hospital job they selected a textured laminate. Of course I opened my big mouth and said if you texture the sloped top, it will still collect dust and stuff not to mention hard to clean. They made us but non-textured of same laminate design for tops versus rest of carcass. What a pain!
You are correct that this is becoming a normal situation for us as well, especially in anything medical related. That si why I was trying to automate it versus do it offline.
Funny story on this though, recent hospital job they selected a textured laminate. Of course I opened my big mouth and said if you texture the sloped top, it will still collect dust and stuff not to mention hard to clean. They made us but non-textured of same laminate design for tops versus rest of carcass. What a pain!
