Hello All,

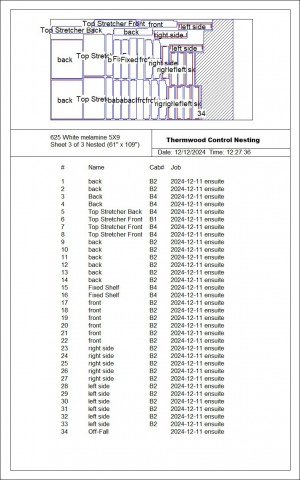

please see attached image from our thermwoods.
When we print our labels and then print to screen the label maps we have been getting a odd layout/info
As you can see in the top image it is printing the description of the part and not the number.
We have also had where it prints a number that is not associated with the parts listed below.
Any suggestions?
Control Nesting and label map printing
Moderators: Mike Iubelt, Jason Susnjara, Larry Epplin, Clint Buechlein, Mike Iubelt, Jason Susnjara, Larry Epplin, Clint Buechlein
-
Steve Detina
- Junior Member
- Posts: 81
- Joined: Wed, Jul 20 2005, 7:29AM
- Company Name: Silhouette Custom Cabinets
- Country: CANADA
- Location: Hamilton, Ontario
Control Nesting and label map printing
- Attachments
-
-
Clint Buechlein
- Thermwood Team
- Posts: 752
- Joined: Fri, May 15 2015, 1:21PM
- Company Name: Thermwood Corp
- Country: UNITED STATES
Re: Control Nesting and label map printing
Steve,
The setting you are looking to change is under the print settings. Go there, then Sheet Settings. Within there uncheck the box for Use Part Name on Part. That will put the number on the part that coincides with the # column. The number it is printing on the image is for part #34 in the list, the off fall.
-Clint-
The setting you are looking to change is under the print settings. Go there, then Sheet Settings. Within there uncheck the box for Use Part Name on Part. That will put the number on the part that coincides with the # column. The number it is printing on the image is for part #34 in the list, the off fall.
-Clint-
