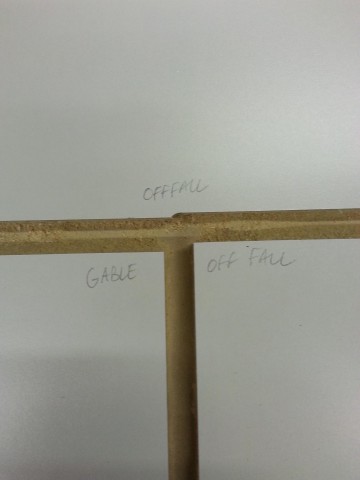

As you can see by my picture the off falls that are created are not rectangular. They should be. Any ideas why this would happen?
Thanks
Off Fall iregular?
Moderators: Mike Iubelt, Jason Susnjara, Larry Epplin, Clint Buechlein, Mike Iubelt, Jason Susnjara, Larry Epplin, Clint Buechlein
-
Ian Richardson
- Junior Member
- Posts: 81
- Joined: Fri, Feb 15 2013, 5:21PM
- Company Name: Millworx
- Country: CANADA
Off Fall iregular?
- Attachments
-
-
Steve Dyches
- Junior Member
- Posts: 82
- Joined: Wed, May 24 2006, 1:52PM
- Location: Beech Island, SC
- Contact:
Re: Off Fall iregular?
Is the upper "off fall" really off fall? Did you get a label for both pieces of off fall or only the lower one in the pic?
-
Ian Richardson
- Junior Member
- Posts: 81
- Joined: Fri, Feb 15 2013, 5:21PM
- Company Name: Millworx
- Country: CANADA
Re: Off Fall iregular?
Yes Steve, both pieces are off fall as per nesting
-
Kerry Fullington
- Wizard Member
- Posts: 4763
- Joined: Mon, May 09 2005, 7:33PM
- Company Name: Double E Cabinets
- Country: UNITED STATES
- Location: Amarillo, TX
Re: Off Fall iregular?
Ian,

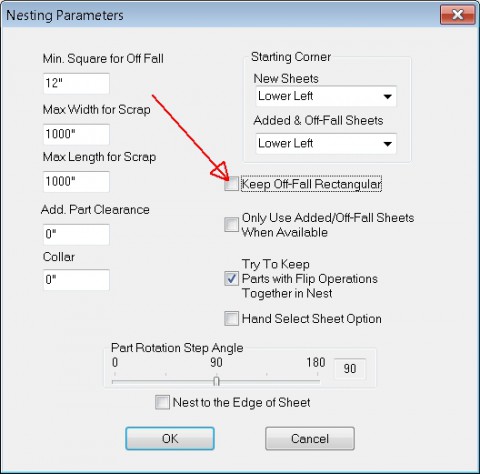

Do you have this box checked in your Nesting Parameters for the Settings Group your material is in?
Do you have this box checked in your Nesting Parameters for the Settings Group your material is in?
-
Brad McIntosh
- Guru Member
- Posts: 539
- Joined: Wed, May 18 2005, 6:59PM
- Company Name: CNC Automation
- Country: CANADA
- Location: St. Zotique, Québec, Canada
- Contact:
Re: Off Fall iregular?
Ian / Kerry,

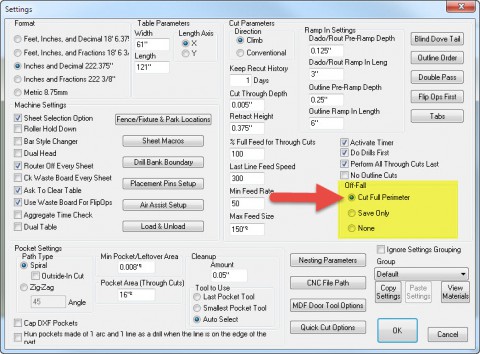

Perhaps the issue is more with the selection regarding the handling of Off-Falls. You now have the option of Cut Full Perimeter of the Offall, just Save Only where the "raw" shape is saved or ignoring (None) them altogether. If the Full Perimeter is not selected, then... well you probably won't get your rectangular shapes.
Just a thought...
Perhaps the issue is more with the selection regarding the handling of Off-Falls. You now have the option of Cut Full Perimeter of the Offall, just Save Only where the "raw" shape is saved or ignoring (None) them altogether. If the Full Perimeter is not selected, then... well you probably won't get your rectangular shapes.
- Control Nesting - Off-Fall Settings
