Edgebanding Appearing without being Applied

Post by Nat Wheatley »

I'm building a new library of cabinets and any time I add an 'up-down/ stretcher', it automatically applies edgebanding to the top edge. Have I got a setting somewhere turned on for this that's causing it to do this? Thanks
http://www.plymouthcustomclosets.com

Dell Precision 490/ Intel Xeon 3.20 Ghz/3 GB RAM/ Nvidia Quadro FX 3450/ Windows XP, sp 3
Top
User avatar
Jeremy Schiffer
eCabinets Beta Tester
Posts: 1168
Joined: Tue, May 10 2005, 9:36PM
Company Name: Corlane Custom Cabinetry LLC
Country: UNITED STATES
Location: Carnesville, GA
Contact:
Contact Jeremy Schiffer

Re: Edgebanding Appearing without being Applied

Post by Jeremy Schiffer »

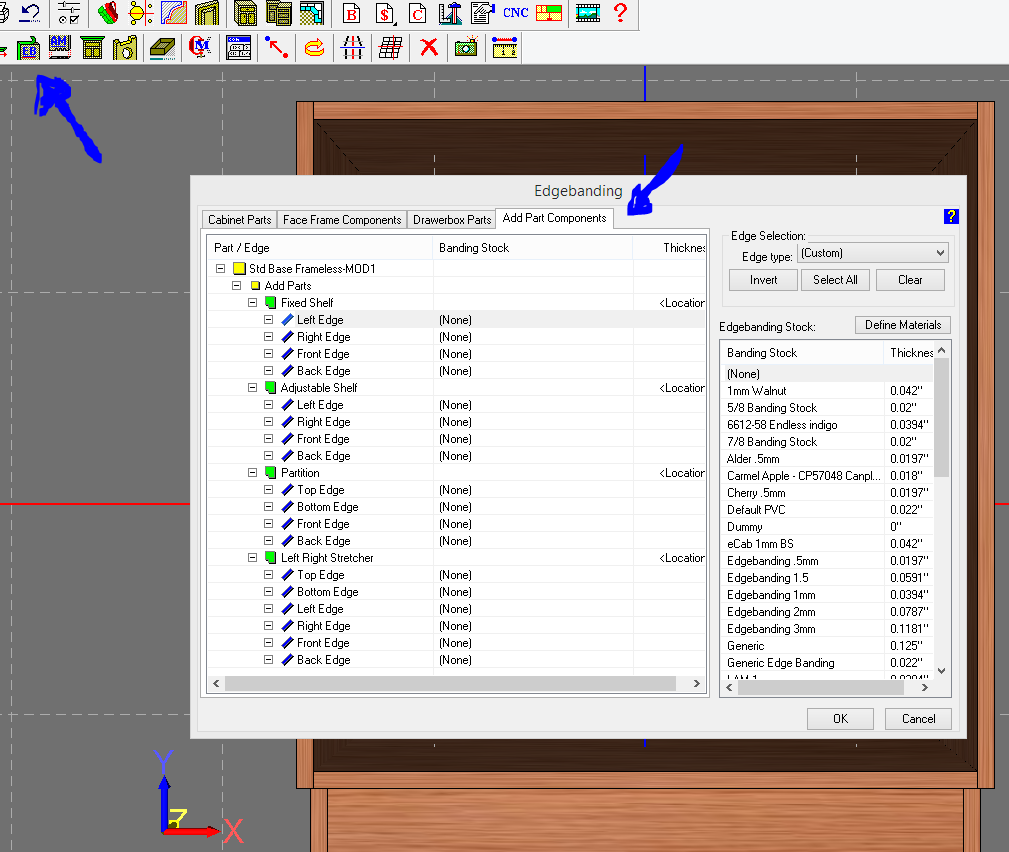

Hi Nat, there is a setting for that. When you have your cabinet open in the Cabinet Editor, click the EB button, and then the "Add Part Components" tab. If your Up/Down Stretcher has an edgebanding set there, then every stretcher you add will have the banding on it.
http://www.corlanecabinetry.com

AMD Ryzen 5 7600X 6-Core Processor 4.70 GHz, 64GB RAM, NVidia RTX A2000 12GB, Windows 10 64 bit
CS-41 4x8
CS-45 5x12
Top
Nat Wheatley
eCabinets Beta Tester
Posts: 491
Joined: Wed, Apr 15 2009, 8:22PM
Company Name: Plymouth Custom Closets
Country: UNITED STATES
Location: Plympton, MA

Re: Edgebanding Appearing without being Applied

Post by Nat Wheatley »

Thanks Jeremy. For some reason I've never even seen that tab before...
http://www.plymouthcustomclosets.com

Dell Precision 490/ Intel Xeon 3.20 Ghz/3 GB RAM/ Nvidia Quadro FX 3450/ Windows XP, sp 3
Top
Thomas strembitsky
Guru Member
Posts: 307
Joined: Fri, Jul 27 2012, 12:30PM
Company Name: true form cabinets
Country: CANADA
Contact:
Contact Thomas strembitsky

Re: Edgebanding Appearing without being Applied

Post by Thomas strembitsky »

this is cool i've never seen it either
Intel(R) Core(TM) i-13700K @ 2.70GHz 32.00 GB RAM
Windows 11 Professional 64-bit
http://www.trueform.ca
CS43 cnc
Top
