Angled Upper Cabinet - Sample

Postby Travis Black » Mon, Oct 09 2017, 8:02PM

Does anyone have a sample cabinet that I can load into my system? I can not figure out how to build this cabinet with Ecabs.

Yes, this cabinet will sit in the corner. So it will be a five sided cabinet with the face frame on an angle.

tim lucas
Senior Member
Posts: 248
Joined: Thu, Nov 29 2007, 5:18PM
Company Name: Tim Lucas Custom Woodworks LLC
Country: UNITED STATES
Location: bell, florida
Contact:

Re: Angled Upper Cabinet - Sample

Postby tim lucas » Tue, Oct 10 2017, 5:27AM

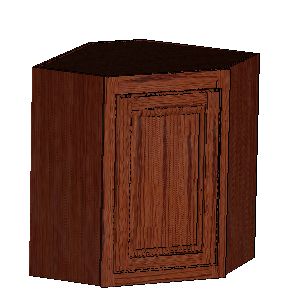

This is a 30" framed wall angled corner

W_AC_30.hsf
(360.02 KiB) Downloaded 12 times

Tim
HP Desktop
i5 2400 @ 3.10 GHz
8.0 G Ram
Win 7 Pro
Nvidia Quadro NVS 290

Blessed is the man who finds wisdom,
the man who gains understanding.

Travis Black
New Member
Posts: 20
Joined: Wed, Jan 16 2013, 11:38PM
Company Name: Serenity Construction Inc.
Country: UNITED STATES

Re: Angled Upper Cabinet - Sample

Postby Travis Black » Wed, Oct 11 2017, 8:40PM

Tim, thanks. exactly what i was looking for.

User avatar
Kerry Fullington
Wizard Member
Posts: 4566
Joined: Mon, May 09 2005, 7:33PM
Company Name: ProSource of Amarillo
Country: UNITED STATES
Location: Amarillo, TX

Re: Angled Upper Cabinet - Sample

Postby Kerry Fullington » Sat, Oct 14 2017, 8:09AM

Travis,

To create that cabinet go to the eCabinets Standard Cabinets,
Load the Standard Corner Frameless or Framed cabinet
Go to Construction Settings and click the Corner Settings tab and choose Angled Front


Return to “eCabinet Systems Software”
