Hi Georgi,
I've attached some screen shots to help clear up the following information regarding fixture offsets used by our control, which work well for the profile modeler and control nesting. Please review the following information and attached picts, then let me know if you need additional assistance. You can reach me by email through:
program@thermwood.com or phone: 1800 221 3865, ext. 247
You mentioned that when posting code through profile Modeler, that you are getting a G51 in cnc program for the Fixture offset, but would like to use the G901 and G902. You can use the same coordinates and offsets as G901 or G902 by selecting the G52 option in the Operation Defaults of Profile Modeler. To make this work, the following instruction will need to be followed:

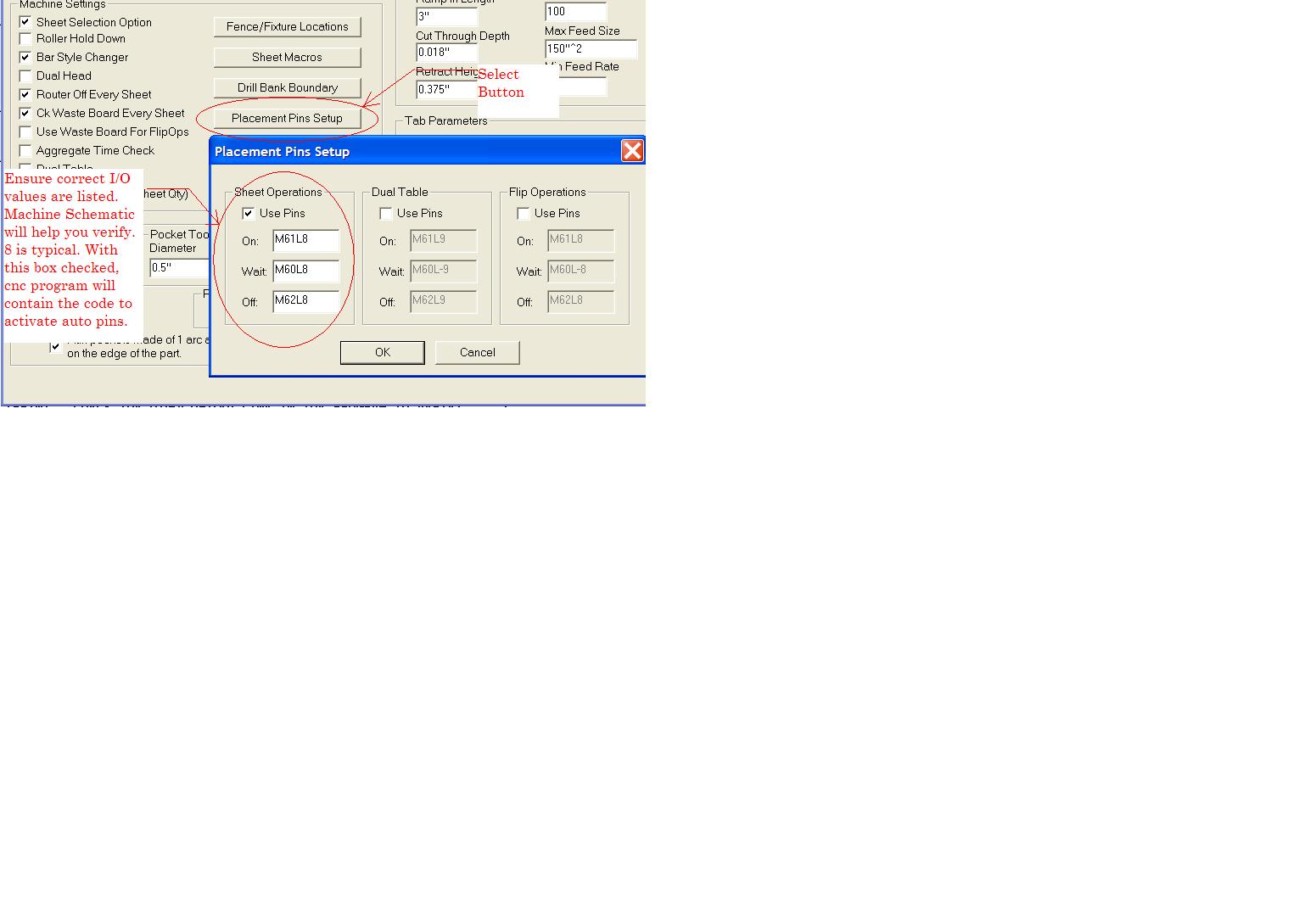

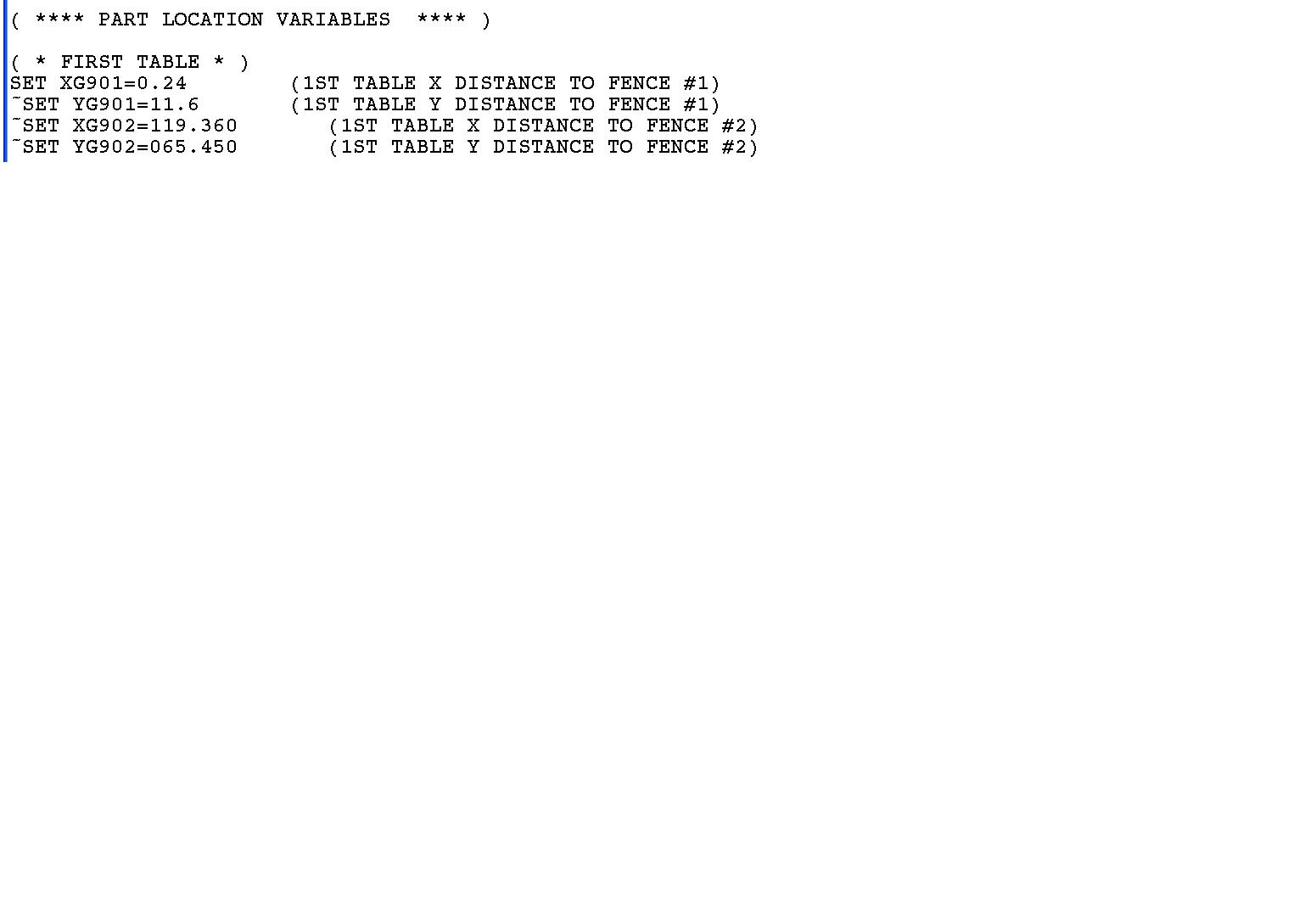

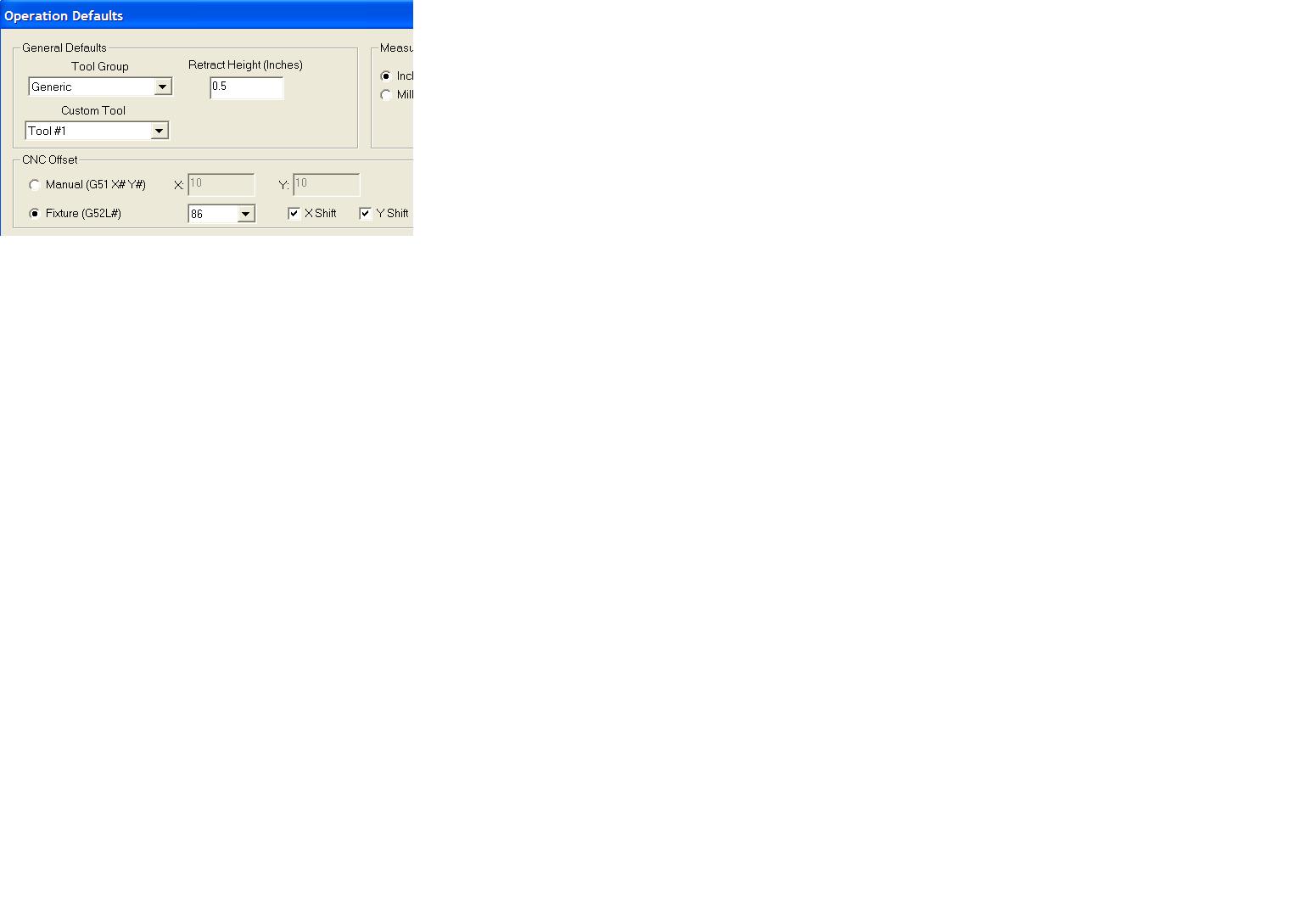

First open the Profile Modeler and go into the Operation Defaults. Select the G52 option and place the number of the table you'll be accessing in the fixture offset table (The \"L#\" for G52 can range 1-100. Table can be accessed by selecting F4, F4 while at main Thermwood screen <THM software up to V6 or by selecting Edit, Fixture Offset, Fixture Offset Table <THM V7 and newer>) if popup pins or locating device is on other end of table, opposite x and y HOME, then you will need to place a check for the X and Y SHIFT option. As far as matching the G52L# offset to the G901 or G902 offset, you will need to access the \"Part Location Variables \"(located in the M999 macro) to copy the x and y values. There is more detail in the Thermwood 91000 manual on accessing information in the M999 macro. To find fixture offset locations, NC Reset cnc router, use Hand Held programmer or manual teach method to drive machine out and center router bit over intersection of fence location.
I hope this information has been helpful.
