Can someone "create part using closed contour" this?

[Tim Kulin]

I can't make it work. It only creates part of the part.

Thanks!

Tim

[John J. Desmond]

Is this what you are looking for? It doesn't seem different to me.

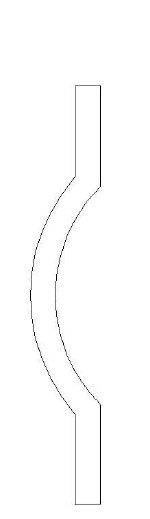

food line ctop 1.jpg

This is what it looked like when I opened it. I am probably missing something. If this is it then I need to figure out how to add it as a link for you to have it.

John

[John J. Desmond]

Excuse me while I use this as a learning tool. I think I have learned how to add an esa. file attachment. Disregard this message.

food line ctop 1.esa

John

[Jon Kenworthy]

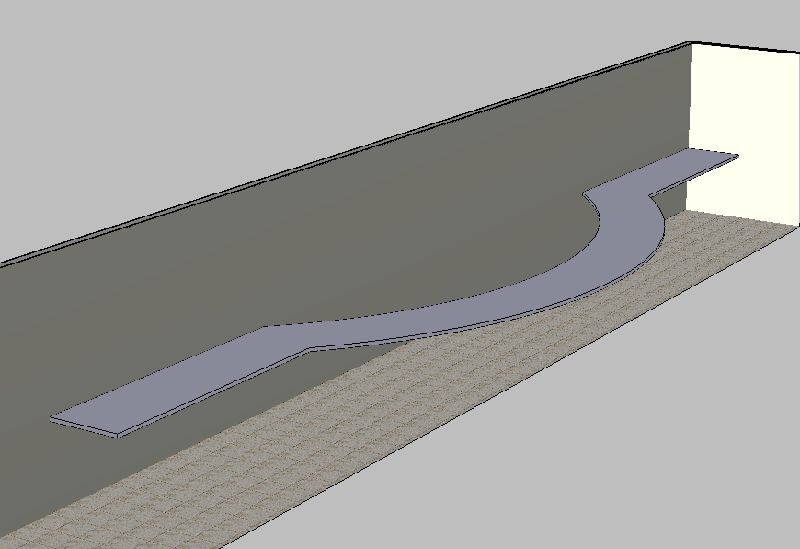

I'm guessing this is the shape you are looking for.

Counter .JPG (8.94 KiB) Viewed 8200 times

I am having problems getting this to work also. I saved a DXF file in a CAD program so I could open it in the second screen of the part editor (right click, Load Geometry). It will show up in the second screen for me but when I bring it back into the first screen of the part editor it doesn't show up. I included a zipped DXF file just in case you want to try it.

[John J. Desmond]

Here's one I did in eCabs. It is similar but with less of an arch. If this is what you are looking for let me know.


Assembly1.esa

Maybe this will help

John

[Jon Kenworthy]

When I downloaded your .esa file and added for the part that was left out I came up with a dimension of 84" wide by 504" long. I think the problem might be the size of the display cube (over 40 feet long) and not being able to work with something that size in the part editor. One of the wizards could verify this over the weekend or Thermwood can on Monday.

[Rick Palechuk]

The size shouldn't be an issue.

[Kerry Fullington]

Rick,

It might be a problem. I seem to remember this coming up before where a part was just too large and then my memory might be fading also. It still wouldn't hurt to check it out with the eCab guys.

Kerry

[Rick Palechuk]

It seems to work. The LDE is struggling a bit though.
