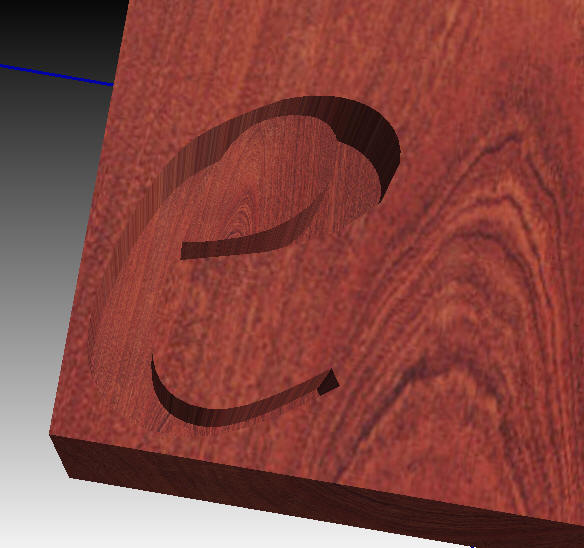

Hi there, I have looked through the forums, and i know what i need to do, yet can't find an answer on how to do it. I want to do some lettering for signage, and i can use Deskengrave (for example) to make the letters. Fine no problems, can bring that into parts editor and constraints etc, and get it to show the machined letters when finished. Now as it is already known, doing this will delete any islands in a given word, eg an "e" will be missing the semi circlular part in the letter, and so will other letters with islands. So the answer to this is to split the letters.
How do i split the letters? That is what i need to know and can't find an answer to. I have autocad, so if someone clould guide me through the steps it would be appreciated.
Regards
Jason
Help with doing lettering
Moderators: Jason Susnjara, Larry Epplin, Clint Buechlein, Scott G Vaal, Jason Susnjara, Larry Epplin, Clint Buechlein, Scott G Vaal
-
jason galbraith
- Senior Member
- Posts: 249
- Joined: Wed, Dec 10 2008, 3:29PM
- Company Name: Eastcoast Ultimate
- Country: AUSTRALIA
- Contact:
Help with doing lettering
Core i7-2600 @ 3.70Ghz - 8 GB ram - Win 7 Ultimate 64bit - 2 x 24" ASUS monitors - Nvidia 600 Quadro 1GB graphics
www.eastcoastultimate.com.au
www.eastcoastultimate.com.au
-
Rick Deskins
- Thermwood Team
- Posts: 858
- Joined: Tue, May 17 2005, 12:47PM
- Company Name: Thermwood
- Country: UNITED STATES
- Location: Thermwood
-
jason galbraith
- Senior Member
- Posts: 249
- Joined: Wed, Dec 10 2008, 3:29PM
- Company Name: Eastcoast Ultimate
- Country: AUSTRALIA
- Contact:
Re: Help with doing lettering
Thanks Rick, I have read that particular page many times, and it says to split the letters, fine i knew that, but what I want to know, is - "how" to split the letters.
regards
Jason
regards
Jason
Core i7-2600 @ 3.70Ghz - 8 GB ram - Win 7 Ultimate 64bit - 2 x 24" ASUS monitors - Nvidia 600 Quadro 1GB graphics
www.eastcoastultimate.com.au
www.eastcoastultimate.com.au
-
George Davidson
- eCabinets Beta Tester
- Posts: 1585
- Joined: Tue, May 17 2005, 1:16PM
- Location: Norwood Pa.
Re: Help with doing lettering
Hi Jason
Look at this Zip File
I just came in from the shop I will be gone at 4:15 am put I sure be back about 6:00 pm.

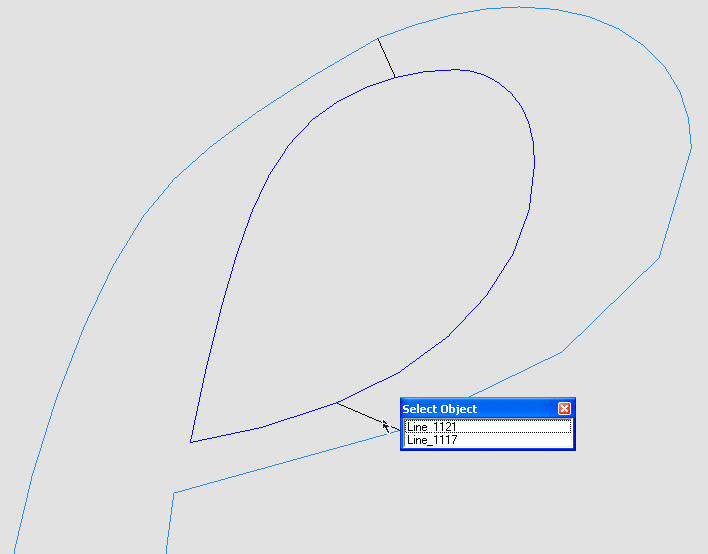

You have to break your letter in to all lines. Then put the lines( when you put the lines always to 2)

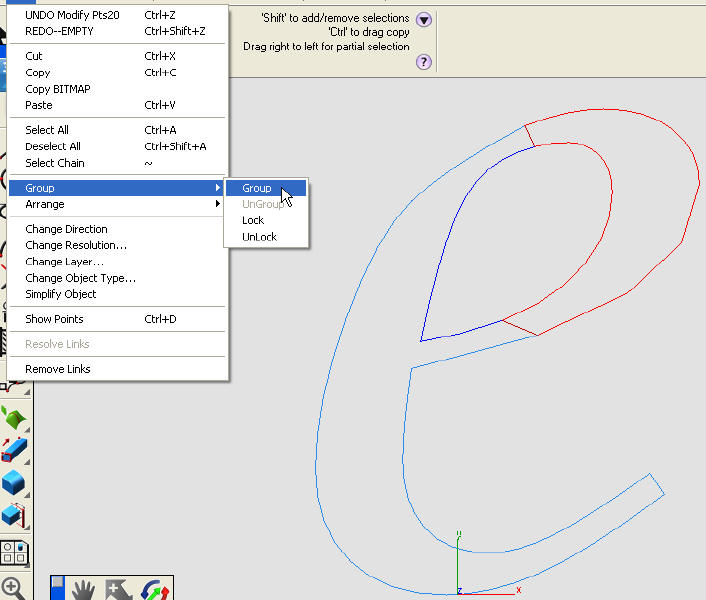

So when you put the lines back into (2-groups you will need then to make the 2-groups)
Look at this Zip File
I just came in from the shop I will be gone at 4:15 am put I sure be back about 6:00 pm.
You have to break your letter in to all lines. Then put the lines( when you put the lines always to 2)
So when you put the lines back into (2-groups you will need then to make the 2-groups)
- Attachments
-
- Letters.zip
- (996.73 KiB) Downloaded 443 times
-
- 11.JPG (34.39 KiB) Viewed 5446 times
-
- 14.JPG (59.61 KiB) Viewed 5446 times
-
George Davidson
- eCabinets Beta Tester
- Posts: 1585
- Joined: Tue, May 17 2005, 1:16PM
- Location: Norwood Pa.
Re: Help with doing lettering

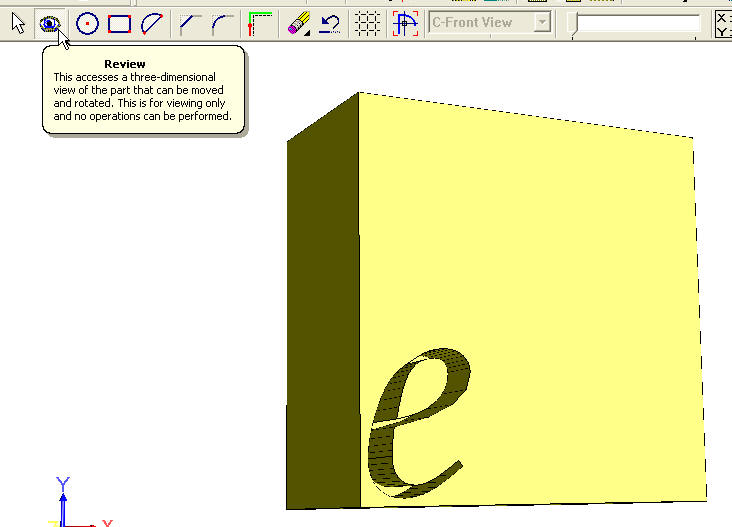

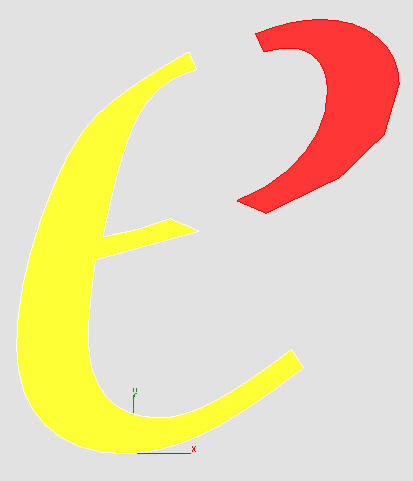

Letter in E-Cabinets
