When I go to open .DXF files into Contour Mgr., I get the following error;
"The unregistered version is for evaluation only
Purchase at www.cadsofttools.com.
Has anyone encountered this? What is the solution?
Importing .DXF in Contour mgr
Moderators: Jason Susnjara, Larry Epplin, Clint Buechlein, Scott G Vaal, Jason Susnjara, Larry Epplin, Clint Buechlein, Scott G Vaal
-
Wayne Adelkopf
- Junior Member
- Posts: 45
- Joined: Sat, Nov 28 2009, 8:19AM
- Company Name: Noble Woodworks Inc.
-
Rick Palechuk
- Wizard Member
- Posts: 1896
- Joined: Wed, May 18 2005, 7:54PM
- Company Name: Milltech Millworks Ltd.
- Country: CANADA
- Location: Edmonton, Alberta
- Contact:
Re: Importing .DXF in Contour mgr
Hey Wayne, can you zip and and post the DXF, and I will see what it does for me.
-
Wayne Adelkopf
- Junior Member
- Posts: 45
- Joined: Sat, Nov 28 2009, 8:19AM
- Company Name: Noble Woodworks Inc.
-
Rick Palechuk
- Wizard Member
- Posts: 1896
- Joined: Wed, May 18 2005, 7:54PM
- Company Name: Milltech Millworks Ltd.
- Country: CANADA
- Location: Edmonton, Alberta
- Contact:
Re: Importing .DXF in Contour mgr

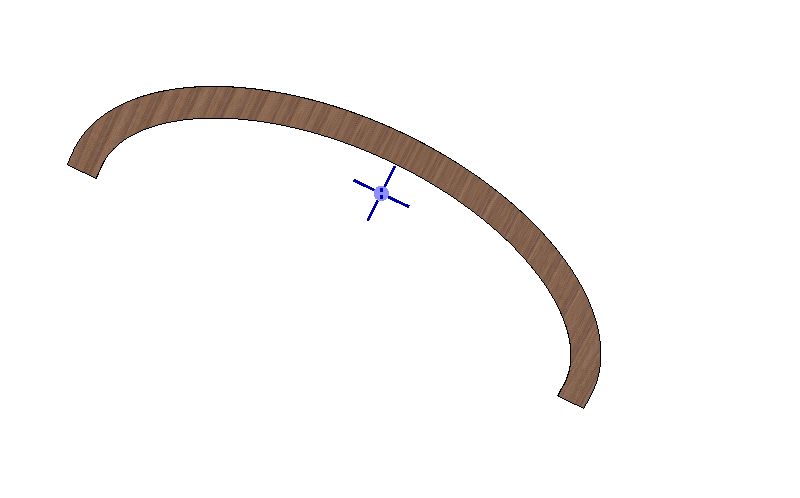

I saved it as an older version of cad (R12), that converts the Spline to Pline, it works, slow going in the PE. HTH
- Attachments
-
-
- ELIPSE2-94X26.zip
- (19.89 KiB) Downloaded 780 times
-
Wayne Adelkopf
- Junior Member
- Posts: 45
- Joined: Sat, Nov 28 2009, 8:19AM
- Company Name: Noble Woodworks Inc.
Re: Importing .DXF in Contour mgr
Thanks Rick.
