Problem using 1/2" outline bit
Moderators: Jason Susnjara, Larry Epplin, Clint Buechlein, Scott G Vaal, Jason Susnjara, Larry Epplin, Clint Buechlein, Scott G Vaal
-
Ian Richardson
- Junior Member
- Posts: 79
- Joined: Fri, Feb 15 2013, 5:21PM
- Company Name: Millworx
- Country: CANADA
Problem using 1/2" outline bit

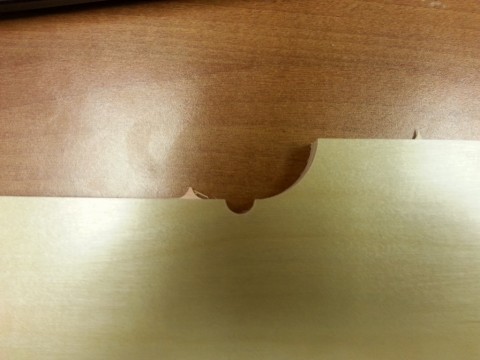

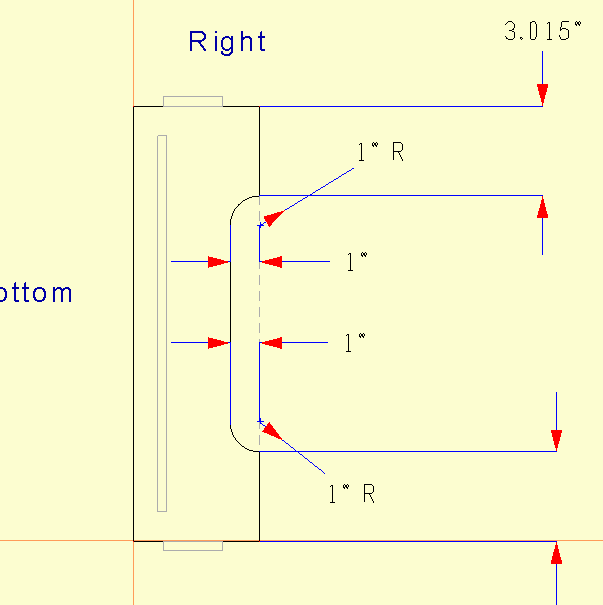

I just want to cut out a finger slot on top of this drawer box front. I have attached 2 pics. One from Constraint manager and the other is my issue. BTW, the issue happens on both sides. The 1/2" bit travels straight but cuts down before cutting the arc. I used circles and a rectangle to cut through using part editor. Any advice? Baffled!
-
Ian Richardson
- Junior Member
- Posts: 79
- Joined: Fri, Feb 15 2013, 5:21PM
- Company Name: Millworx
- Country: CANADA
-
Daniel Odom
- Senior Member
- Posts: 204
- Joined: Thu, Oct 20 2011, 12:52PM
- Company Name: Carlton Kitchen and Bath
- Country: UNITED STATES
Re: Problem using 1/2" outline bit
Are you using any material groups with tabs?
-
Forrest Chapman
- eCabinets Beta Tester
- Posts: 1254
- Joined: Mon, May 30 2005, 2:26PM
- Location: Anderson SC.
- Contact:
Re: Problem using 1/2" outline bit
Set your tool to .499" in the tool manager. Forrest
-
Ian Richardson
- Junior Member
- Posts: 79
- Joined: Fri, Feb 15 2013, 5:21PM
- Company Name: Millworx
- Country: CANADA
Re: Problem using 1/2" outline bit
Daniel Odom wrote:Are you using any material groups with tabs?
No, just default group
Thanks, I will change. How does this affect my outcome?Forrest Chapman wrote:Set your tool to .499" in the tool manager. Forrest
