Hickory without stripes

[Rick Nagy]

Hi there,


I added a rustic hickory texture and was wondering if there is a way to change the way it (or even the stock texture for natural hickory) repeats in my renderings. A hickory drawing always ends up looking like a zebra when I'm done with it. Can the number of repeats be reduced on doors / paneled sides?

Thanks,

Rick

[Dennis Englert]

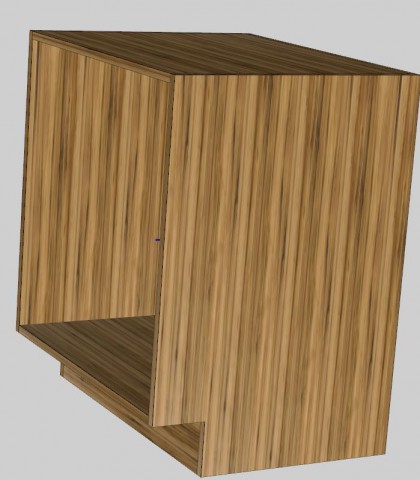

Hickory 2.jpg (4.48 KiB) Viewed 3404 times

Hickory 2.jpg (4.48 KiB) Viewed 3404 times

There are several hickory textures to choose from, but you can also go to the internet and search for Hickory. I saved the images to a folder at C:\ProgramData\Thermwood\eCabinet Systems\materials. You can create your own new folder in the Materials folder or place them into an existing folder, such as "User Define." Then I created a material (sheet goods) with the image that I'd saved. Applied it globally to a cabinet.

If the grain on the jpg is horizontal, then you will get a more profound striping effect.

Dennis
