Curved top of cabinet

tim lucas · Post by **tim lucas** » Fri, Feb 20 2015, 8:22AM

Need a little help, Would like to know how you would go about drawing the top of the upper cabinet in this picture.

I am currently using a 8" wide top rail and cutting it to match the curved area, but would like to know any other ideas

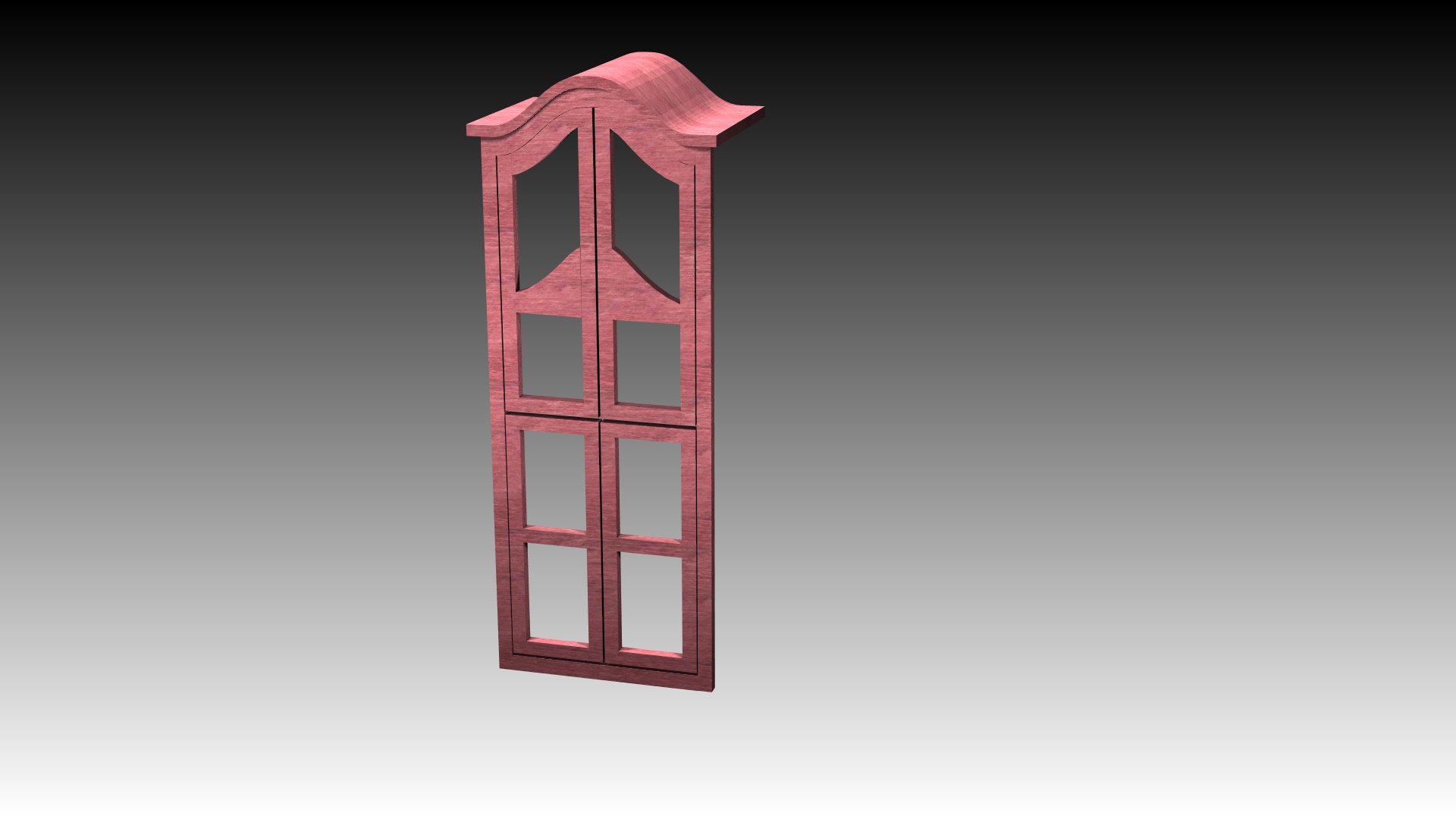

: W2430.jpg (13 KiB) Viewed 24304 times

Thanks for any help
Tim

tim lucas · Post by **tim lucas** » Wed, Mar 04 2015, 8:31AM

Still working on my cabinet, using part editor on a display board, I am having a problem creating a part using closed contour

Scott G Vaal · Post by **Scott G Vaal** » Wed, Mar 04 2015, 9:00AM

tim lucas wrote:Still working on my cabinet, using part editor on a display board, I am having a problem creating a part using closed contour


Tim,
If you attach the cabinet with your geometry saved in it, I will be glad to investigate.

tim lucas · Post by **tim lucas** » Wed, Mar 04 2015, 12:00PM

well .... , I went back in to the cabinet and now can't reproduce it, works like it should

I must have done something to the board prior that created the error.
Thanks
Tim

George Davidson · Post by **George Davidson** » Tue, Mar 31 2015, 9:44PM

Test It should have a Cabinet in a Zip ??

George Davidson · Post by **George Davidson** » Tue, Mar 31 2015, 10:08PM

Here it is

George Davidson · Post by **George Davidson** » Tue, Mar 31 2015, 10:27PM
