bug with user defined edge operations

[Thomas strembitsky]

i have a user defined operation attached to a KD/RTA hole pattern

When i change the max distance in the construction parameters the hole pattern moves but the user defined operation stays fixed, which causes a mismatch.

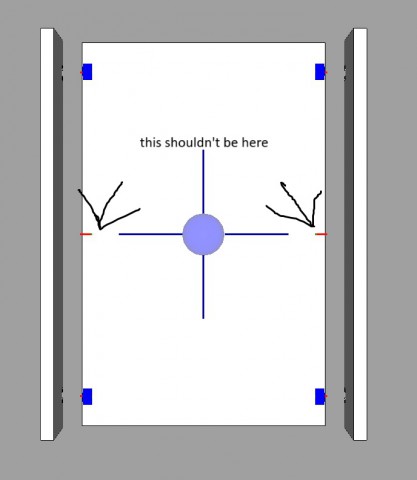

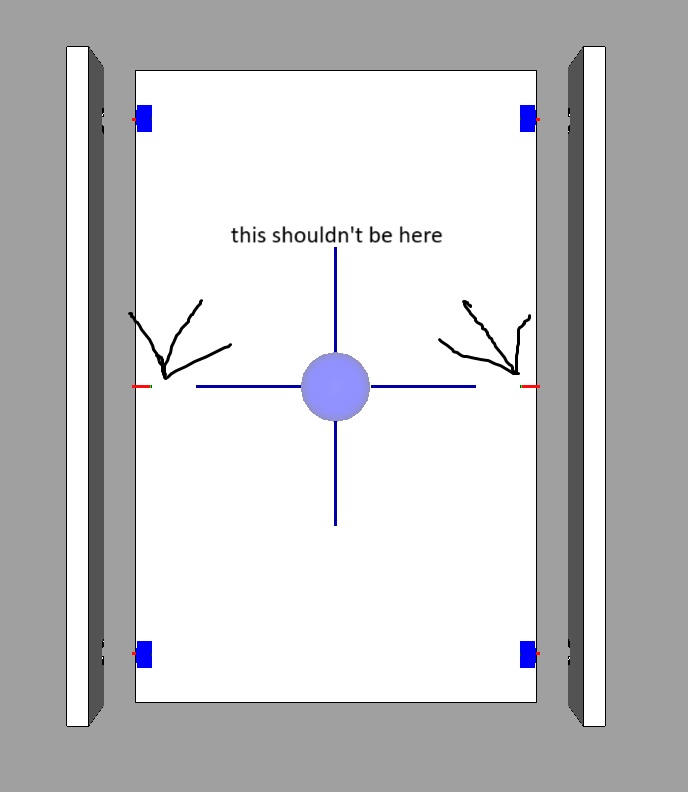

please see attached sample cabinet and screenshot.

user defined operation issue.hsf

(280.02 KiB) Downloaded 1012 times

[Clint Buechlein]

User Defined Operations are independent of everything else. Their spacing and distance between is utilized the same as KD/RTA and Pocket Screw, but they are not linked together. You need to set the Operation Parameters to match your KD/RTA Construction Parameters to get the counts to be the same between the two.

In your attached cabinet, the left and right ends have a Max Dist for KD/RTA at 20", the User Defined Operations at set to 12".

-Clint-

[Thomas strembitsky]

Thanks clint,
i didn't realize it had its own menu. Still lots to discover in this program
