Partitions in LDE

John J. Desmond · Post by **John J. Desmond** » Fri, Aug 12 2011, 9:58PM

Is there a way to have partitions show up in the LDE? Also, can fixed shelves and adjustable shelves be displayed differently in the LDE?

Thanks

Rick Palechuk · Post by **Rick Palechuk** » Sat, Aug 13 2011, 12:20AM

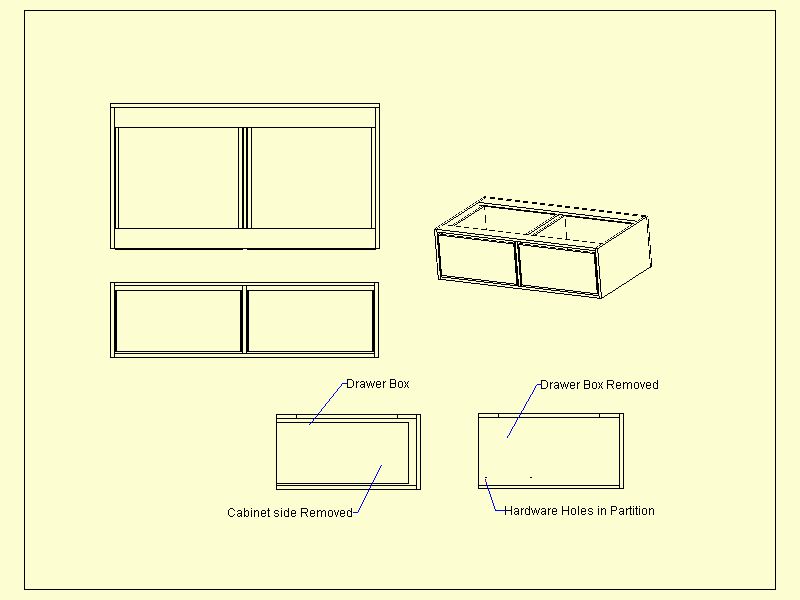

Hi John, do you mean to show the partition from being hidden by other parts? If so, then use the Select Cabinet Part Mode (Prt), select the part, right click, and select Hide.

John J. Desmond · Post by **John J. Desmond** » Sat, Aug 13 2011, 7:06AM

Rick,

Thanks. I will try that. I knew about that but I wasn't sure if it would show or just hide.

Thanks,

John
