Corner Cabinet Width

[Nat Wheatley]

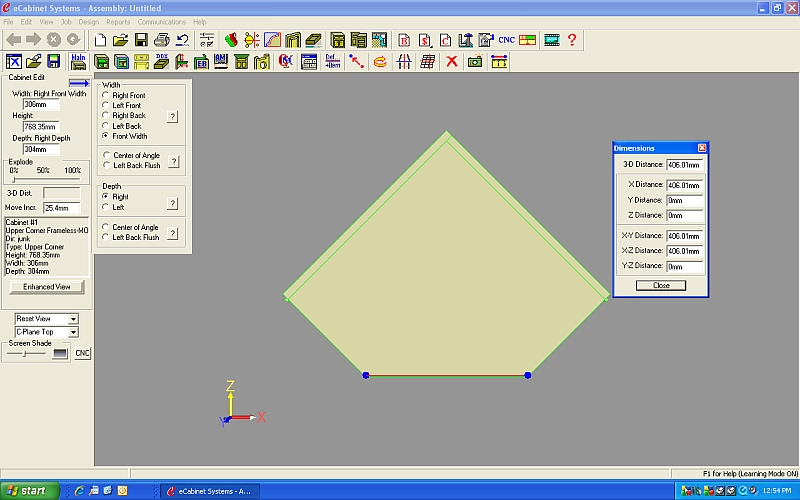

I'm trying to set this cabinet up to be 610mm wide (across both backs), have the each of the actual cabinet sides be 304mm, and have a 406mm front opening. No matter what I try I can't seem to get these dimensions to work out on the cabinet.

(I've put a 19mm inset on the sides to get them to cutlist correctly at 304mm deep)

Upper Corner Frameless.hsf

(202.02 KiB) Downloaded 330 times

[DanEpps]

Are you talking about "Center of Angle" when you say "710mm wide across both backs?"

[Nat Wheatley]

Dan,

I'm not completely clear on the terminology. The cabinet would come out of the corner 610mm in each direction.

[DanEpps]

Here is a better question: What are the dimensions between each pair of letters on this diagram (a-b, b-c, c-d, d-e, b-f, e-a and a-c)?


[DanEpps]

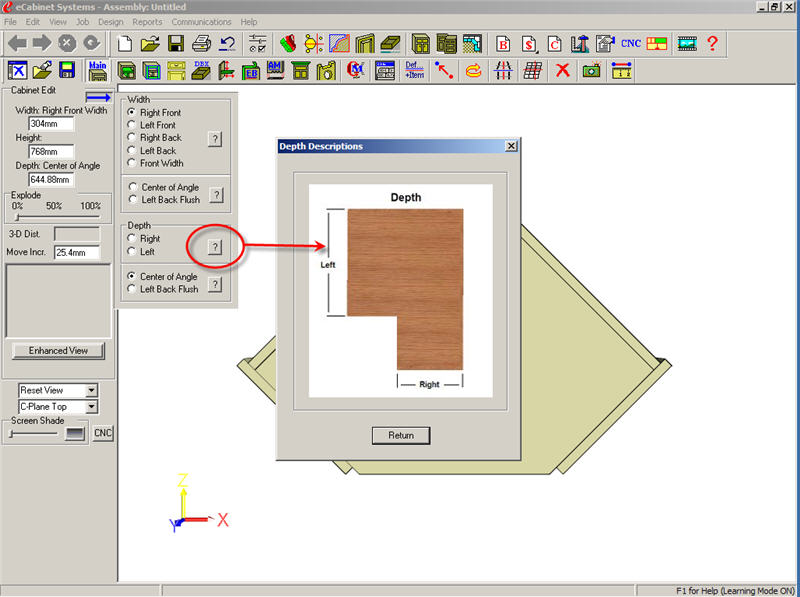

This might help too. If you click on the ? in each of the corner settings groups, you will get a popup explaining what the setting does.

Corner 2.jpg (71.39 KiB) Viewed 4585 times

[Kerry Fullington]

Nat,

If you want a 610mm back width with a 304mm depth you will need a 306mm left and right front width.
You have the 19mm front insets on the sides
You need a 13.5mm front inset on the top and deck
Doing this I get a 406.1mm opening


Kerry

[Nat Wheatley]

Thanks for the help, guys. I was misinterpreting the 'front width' to be the width of the cabinet opening, not the overall front width of the cabinet. I added the setbacks for the top and deck, and have the cabinet I'm after.

Thanks again, I'm glad to be able to add this to my library. I was putting off doing it, and am glad it's ironed out.

Nat
