Problems Profiling

[Kerry Fullington]

I created a tool in eCabinets
I created an arch geometry in eCabinets

I can place the geometry on a 48" X 96" Generic sheet created from a cabinet back and profile the geometry with my tool

test.hsf

(1.94 MiB) Downloaded 394 times

When I open this in the profile modeler I am able to Verify Tool Path, no problems (3/8" end mill and 1/8" ball nose)

If I place my geometry on the same sheet and cut the part out, then profile it with my tool I am unable to Verify Tool Path in the profile modeler. I get an error.
Same tool group in profile modeler.

test_02.hsf

(2.02 MiB) Downloaded 393 times

[Ryan Hochgesang]

Hi Kerry,

If you could supply the following files in addition to the design files you provided, I will have a look into your issue:

.X_T (Shape Manager file used to design .tol file)
.tol (Tool File used in Part Editor)
toolset.bin (tooling information from Profile Modeler)
EXPORT file from Control Nesting (Tooling information and settings from Machine)

Would be best if emailed to: program@thermwood.com

[Kerry Fullington]

Ryan,

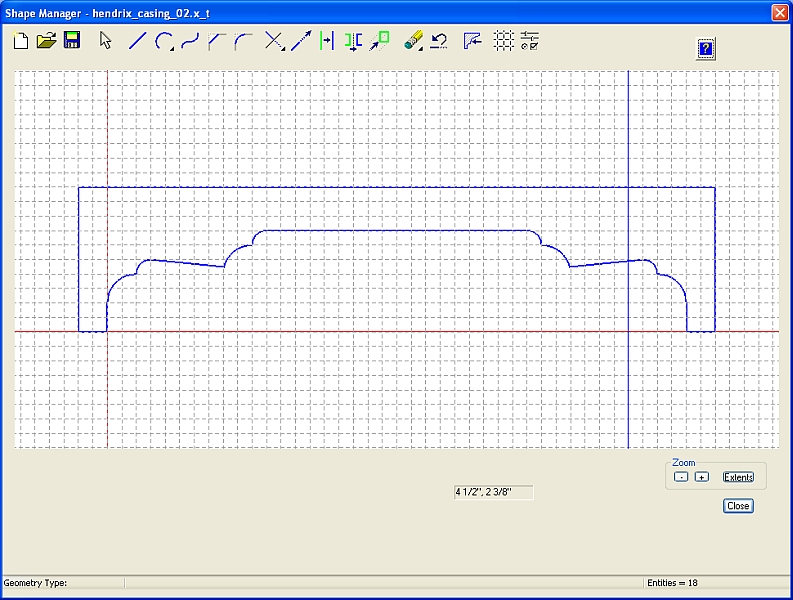

Thanks for your response but I modified my tool from this

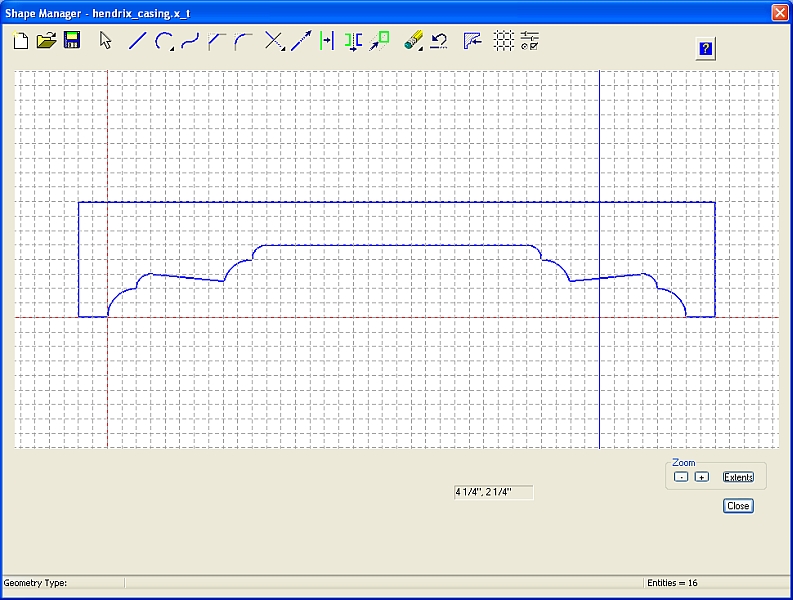

to this

and it now works on the cut out part. I can verify tool pathsin the Profile Modeler.

Kerry

[Ryan Hochgesang]

It looks to me that extending each end of your tool downward has allowed a better clean up as the part is created in Part editor.
